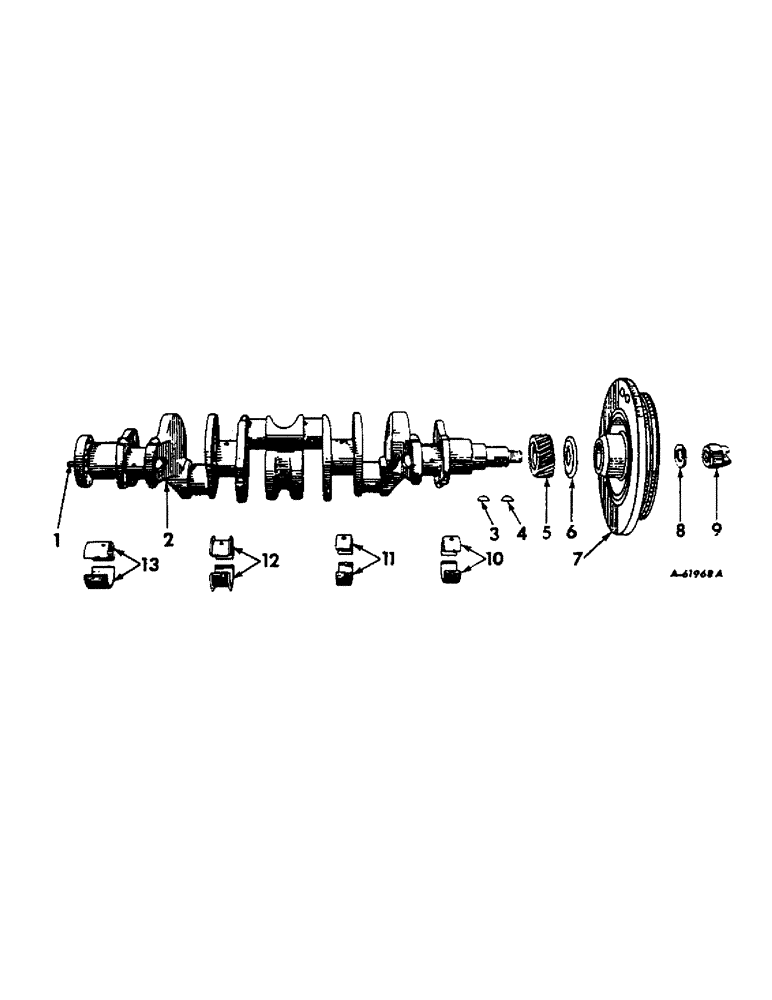

Запчасти Case IH 414 (272) - CRANKSHAFT, FLYWHEEL AND BEARINGS (10) - ENGINE

1

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.

2

367269R91

CRANKSHAFT

ASSY, standard, C-263, serial nos 25964 to 36693, Composed of

1шт.

367276R91

BEARING LINER

BEARING

1шт.

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

1шт.

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

1шт.

367285R91

BEARING

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

82970R1

STUD

PIN

1шт.

2

382356R91

CRANKSHAFT

ASSY, standard, C-263, serial no. 36694 & above, Composed of

1шт.

332267R91

BEARING SET

BEARING

1шт.

367276R91

BEARING LINER

BEARING

1шт.

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

1шт.

367285R91

BEARING

1шт.

367630R91

BEARING SET

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

82970R1

STUD

PIN

1шт.

2

367271R92

CRANKSHAFT W/BEARINGS FIELD PACKAGE, U/S, Consists of six connecting rod bearings, four crankshaft bearings and crankshaft

1шт.

3

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff no. 23, fan pulley

1шт.

4

103462

KEY

3/16 x 1 Woodruff no. 13, crankshaft gear

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

371573R2

PULLEY

fan drive

1шт.

8

70109R1

WASHER

starting crank nut

1шт.

9

V84199

NUT,1"-14, Thin

crankshaft

1шт.

10

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, STD

1шт.

10

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

10

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

10

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

10

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

11

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate front, 2 halves, standard

1шт.

11

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .002 U/S

1шт.

11

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 U/S

1шт.

11

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate, 2 halves, .020 U/S

1шт.

11

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 U/S

1шт.

12

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSY, crankshaft intermediate rear, 2 halves, STD, C-263, serial nos, Serial Range: 25964-36693

1шт.

12

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, STD, C-263, serial no. 36694 & above

1шт.

12

367306R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .002 U/S, C-263, serial nos, Serial Range: 25964-36693

1шт.

12

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S, C-263, serial no. 36694 & above

1шт.

12

376676R91

JOURNAL

BEARING ASSY, crankshaft intermediate rear, 2 halves, .010 U/S, C-263, serial nos, Serial Range: 25964-36693

1шт.

12

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S, C-263, serial no. 36694 & above

1шт.

12

376689R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .020 U/S, C-263, serial nos, Serial Range: 25964-36693

1шт.

12

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S, C-263, serial no. 36694 & above

1шт.

12

367294R91

BEARING ASSY

ASSY, cranksfaft intermediate rear, 2 halves, .030 U/S, C-263, serial nos, Serial Range: 25964-36693

1шт.

12

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S, C-263, serial no. 36694 & above

1шт.

13

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, STD

1шт.

13

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

13

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

13

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

13

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.
