Запчасти Case IH 414 (271) - CONNECTING RODS AND PISTONS, C-263, SERIAL NUMBERS 40552 AND ABOVE (10) - ENGINE

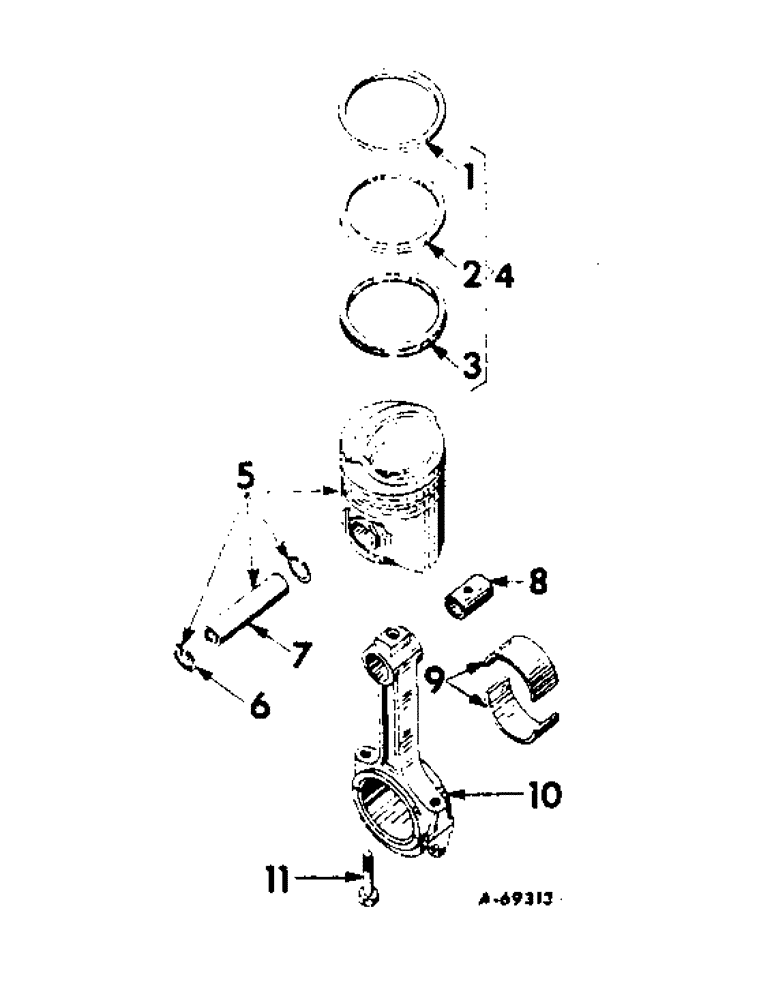

Схема запчастей Case IH 414 - (271) - CONNECTING RODS AND PISTONS, C-263, SERIAL NUMBERS 40552 AND ABOVE (10) - ENGINE
7
9
11
1
3
6
8
5
10
4
2

Артикул

Название

Примечание

Количество

1

RING, compression piston, top or first groove, Not serviced separately, Order piston ring set

6шт.

2

RING, compression piston, second groove, Not serviced separately, Order piston ring set

6шт.

3

RING, oil regulating piston, third or bottom groove, Not serviced separately, Order piston ring set

6шт.

4

539379R2

SET

RING SET, piston, Consists of two compression and one oil regulating ring, STD and .010 O/S

6шт.

4

539380R2

SET

RING SET, piston, Consists of two compression and one oil regulating ring, .020 O/S

6шт.

4

539381R2

SET

RING SET, piston, Consists of two compression and one oil regulating ring, .030 O/S

6шт.

4

539382R2

RING, SET

RING SET, piston, Consists of two compression and one oil regulating ring, .040 O/S

6шт.

5

379817R95

PISTON

ASSY, STD

6шт.

5

379818R95

PISTON ASSY, .010 O/S

6шт.

5

379819R95

PISTON

ASSY, .020 O/S

6шт.

5

379820R95

PISTON

ASSY, .030 O/S

6шт.

5

379821R95

PISTON ASSY

.040 O/S

6шт.

5

379822R95

PISTON ASSY, high altitude, STD

6шт.

5

379823R95

PISTON ASSY, high altitude, .010 O/S

1шт.

5

379824R95

PISTON ASSY, high altitude, .020 O/S

6шт.

5

379825R95

PISTON ASSY, high altitude, .030 O/S

6шт.

5

379826R95

PISTON ASSY, high altitude, .040 O/S

6шт.

6

19517D

SPECIAL RING

RING, piston pin retaining

12шт.

7

278271R1

PISTON PIN

PIN, piston, STD

6шт.

7

278326R1

PIN

piston, .005 O/S

6шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, STD

6шт.

9

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

9

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

9

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

9

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

9

367630R91

BEARING SET, connecting rod, STD, Consists of six bearings, 367408R11

1шт.

9

377285R91

KIT

BEARING SET, connecting rod, .002 U/S, Consists of six bearings, 367632R11

1шт.

9

376665R91

BEARING

SET, connecting rod, .010 U/S, Consists of six bearings, 376666R11

1шт.

9

376667R91

KIT

BEARING SET, connecting rod, .020 U/S, Consists of six bearings, 376668R11

1шт.

9

372443R91

KIT

BEARING SET, connecting rod, .030 U/S, Consists of six bearings, 367631R11

1шт.

10

367406R21

ROD

W/TWO BOLTS, 280318C1 and bushing, 364913R1, connecting

6шт.

11

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod, Replaces 316366R1

12шт.

Выбрано товаров: 33
