Запчасти Case IH 414 (270) - CONNECTING RODS AND SLEEVE SETS, C-263, SERIAL NUMBERS 25964 TO 40551 (10) - ENGINE

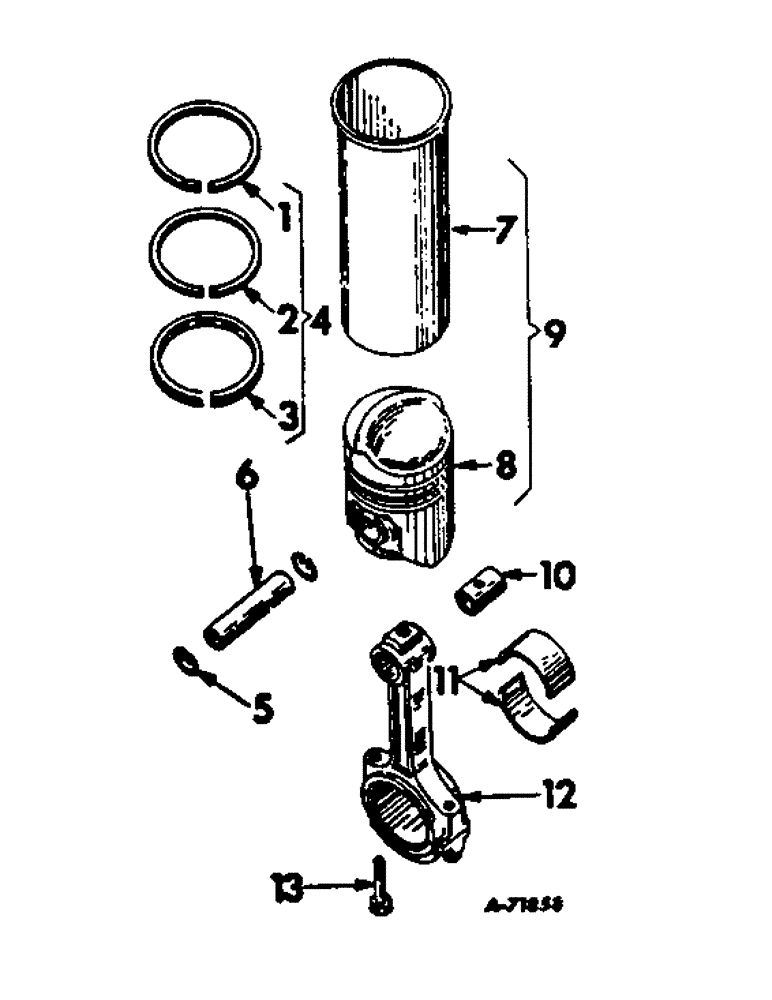

Схема запчастей Case IH 414 - (270) - CONNECTING RODS AND SLEEVE SETS, C-263, SERIAL NUMBERS 25964 TO 40551 (10) - ENGINE
13
12
6
1
5
9
7
11
3
2
4
8
10

Артикул

Название

Примечание

Количество

1

RING, compression piston, top or first groove, Not serviced separately, Order piston ring set

6шт.

2

RING, compression piston, second groove, Not serviced separately, Order piston ring set

6шт.

3

RING, oil regulating piston, third or bottom groove, Not serviced separately, Order piston ring set

6шт.

4

539379R2

SET

RING SET, piston, Consists of two compression and one oil regulating ring, STD and .010 O/S

6шт.

5

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

6

278271R1

PISTON PIN

PIN, piston

6шт.

6

278326R1

PIN

piston, .005 oversize

6шт.

7

SLEEVE, cylinder, Order sleeve, piston & rings assy, For proper altitude

6шт.

8

PISTON, Order sleeve, piston & rings assy, For proper altitude

6шт.

9

367640R95

PISTON ASSY.

SLEEVE ASSY, cylinder, gasoline standard altitude, C-263, serial nos 25964 to 32459, Composed of

6шт.

278271R1

PISTON PIN

PIN

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

19517D

SPECIAL RING

RING

2шт.

539379R2

SET

RING SET

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

9

371092R95

SLEEVE

ASSY, cylinder, LP gas, C-263, serial nos 25964 to 32459, Composed of

6шт.

278271R1

PISTON PIN

PIN

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

19517D

SPECIAL RING

RING

2шт.

539379R2

SET

RING SET

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

9

378604R98

RING, SET

SLEEVE ASSY, cylinder, gasoline and LP gas standard altitude, C-263, serial no 32460 & above, Composed of

6шт.

278271R1

PISTON PIN

PIN

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

19517D

SPECIAL RING

RING

2шт.

539379R2

SET

RING SET

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

9

380649R98

RING, SET

SLEEVE ASSY, cylinder, gasoline high altitude, C-263, serial no. 32460 & above, Composed of

6шт.

278271R1

PISTON PIN

PIN

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

19517D

SPECIAL RING

RING

2шт.

539379R2

SET

RING SET

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, standard

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

11

367630R91

BEARING SET, connecting rod, STD, Consists of six bearings, 367408R11

1шт.

11

377285R91

KIT

BEARING SET, connecting rod, .002 U/S, Consists of six bearings, 376666R11

1шт.

11

376667R91

KIT

BEARING SET, connecting rod, .020 U/S, Consists of six bearings, 376668R11

1шт.

11

372443R91

KIT

BEARING SET, connecting rod, .030 U/S, Consists of six bearings, 367631R11

1шт.

12

367406R21

ROD

W/TWO BOLTS, 280318C1 and bushing, 364913R1, connecting

6шт.

13

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod, Replaces 316366R1

12шт.

Выбрано товаров: 45
