Запчасти Case IH 414 (268) - CYLINDER HEAD AND RELATED PARTS (10) - ENGINE

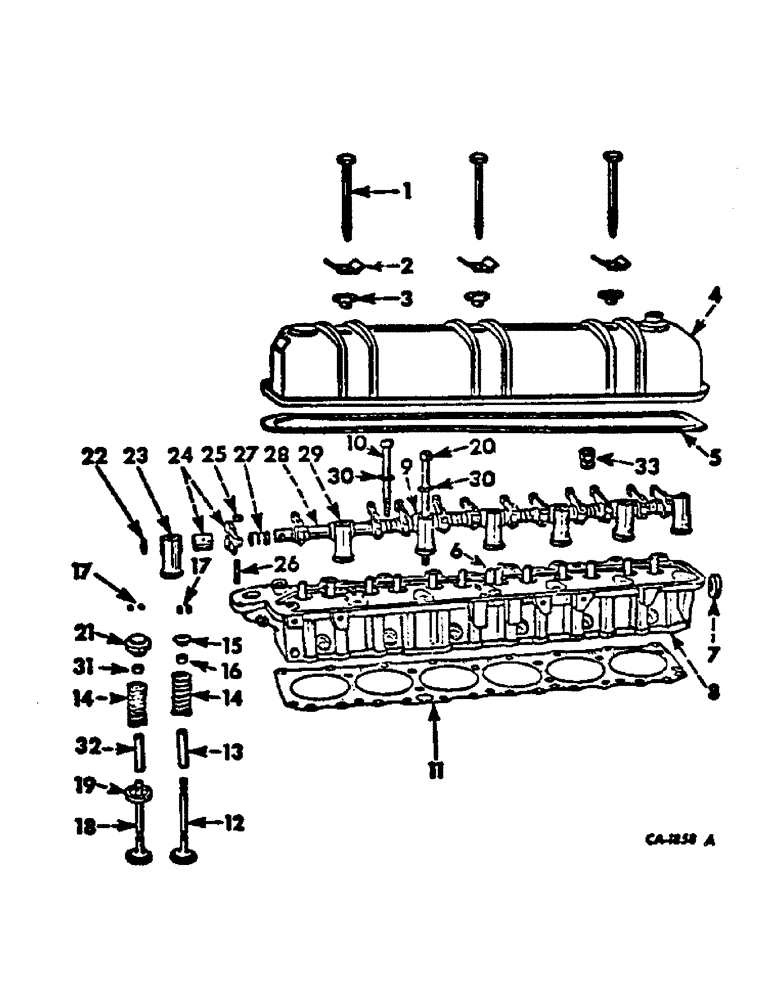

Схема запчастей Case IH 414 - (268) - CYLINDER HEAD AND RELATED PARTS (10) - ENGINE
20
18
30
27
6
7
25
12
30
19
31
8
32
5
24
10
22
13
14
29
11
14
23
2
17
15
21
17
9
4
33
3
26
1
16
28

Артикул

Название

Примечание

Количество

1

168144R1

BOLT (SPREADER)

BOLT, valve cover

3шт.

Q399

WASHER

11/32 x 1 x 16 ga

3шт.

2

370208R1

SUPPORT

STIFFENER, valve cover

3шт.

3

164420R1

GROMMET

valve cover

3шт.

4

378617R91

COVER

ASSY, valve

1шт.

5

369983R2

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

DOWEL, valve lever shaft intermediate #2, #4, #6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

373423R21

HEAD ASSY, cylinder w/out valves, C-263, serial nos 25964 to 32459, Composed of

1шт.

237247R1

GUIDE

(NSS)

12шт.

373423R2

HEAD (NSS)

1шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

126373R1

SEAT

6шт.

179812

GEAR

SCREW

2шт.

8

380812R93

HEAD ASSY.

HEAD ASSY, cylinder w/out valves, C-263, serial nos 32460 to 104133, Order head assy 383665R96 and six valves, 234276R1, Composed of

1шт.

NSS

NOT SOLD SEPARAT

GUIDE

6шт.

NSS

NOT SOLD SEPARAT

GUIDE

6шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

1шт.

NSS

NOT SOLD SEPARAT

HEAD

1шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

126373R1

SEAT

6шт.

179812

GEAR

SCREW

2шт.

8

383665R96

CYLINDER HEAD

ASSY, cylinder w/out valves, C-263, serial no. 104134 and above, Composed of

1шт.

NSS

NOT SOLD SEPARAT

GUIDE

6шт.

NSS

NOT SOLD SEPARAT

HEAD

1шт.

138733R1

CONTROL

PILOT

2шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

1шт.

179852

BOLT

SCREW

2шт.

179812

GEAR

SCREW

2шт.

126373R1

SEAT

6шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto. sq-soc-hd pipe

1шт.

9

164425R1

BRACKET

valve lever shaft intermediate #3 and #5

1шт.

10

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cyl head, short

8шт.

11

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

12

234275R1

VALVE

intake, C-263, serial nos, Serial Range: 25964-104133

6шт.

12

234276R1

VALVE

intake, C-263, serial no. 104134 and above

6шт.

13

535229R1

GUIDE

intake valve stem

6шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

RETAINER, valve spring

6шт.

16

535166R1

RUBBER SEAL

intake valve stem

6шт.

17

41339D

KEY

valve spring retainer

24шт.

18

372699R3

LOCK VALVE

VALVE, exhaust, stellite faced

6шт.

18

367191R2

LOCK VALVE

VALVE, exhaust, plain

6шт.

19

126373R1

SEAT

exhaust valve, gasoline engines

6шт.

19

126231R1

SEAT

exhaust valve, .015 O/S, gasoline engines

6шт.

19

126229R1

SEAT

exhaust valve, .015 O/S, LP gas engines

6шт.

19

83488R2

SEAT, exhaust valve, .030 O/S, gasoline engines

6шт.

19

112509R1

SEAT, exhaust valve, .030 O/S, LP gas engines

6шт.

20

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

BOLT, cyl head, long

7шт.

21

375604R91

SEAT

ROTO COIL, exhaust valve

6шт.

22

109544R1

PLUG

3/4 dia expansion

2шт.

23

164422R1

BRACKET

valve lever shaft front and rear

2шт.

24

164432R91

ARM

LEVER W/NUT, 133093R1 and screw 16067DA assy, valve

12шт.

25

133093R1

NUT,Hex, 3/8" - 24

valve lever adj screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adj

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R3

SHAFT

valve lever

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

29

164423R11

BRACKET

W/DOWEL, 69500R1 assy, valve lever shaft intermediate #2, #4, #6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cyl head bolt

15шт.

31

866834R1

BAFFLE

SEAL, exhaust valve stem

6шт.

32

237248R1

GUIDE

exhaust valve stem

6шт.

33

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.

Выбрано товаров: 64
