Запчасти Case IH 414 (260) - FUEL FILTER, FOR L.P. GAS BURNING ENGINES (10) - ENGINE

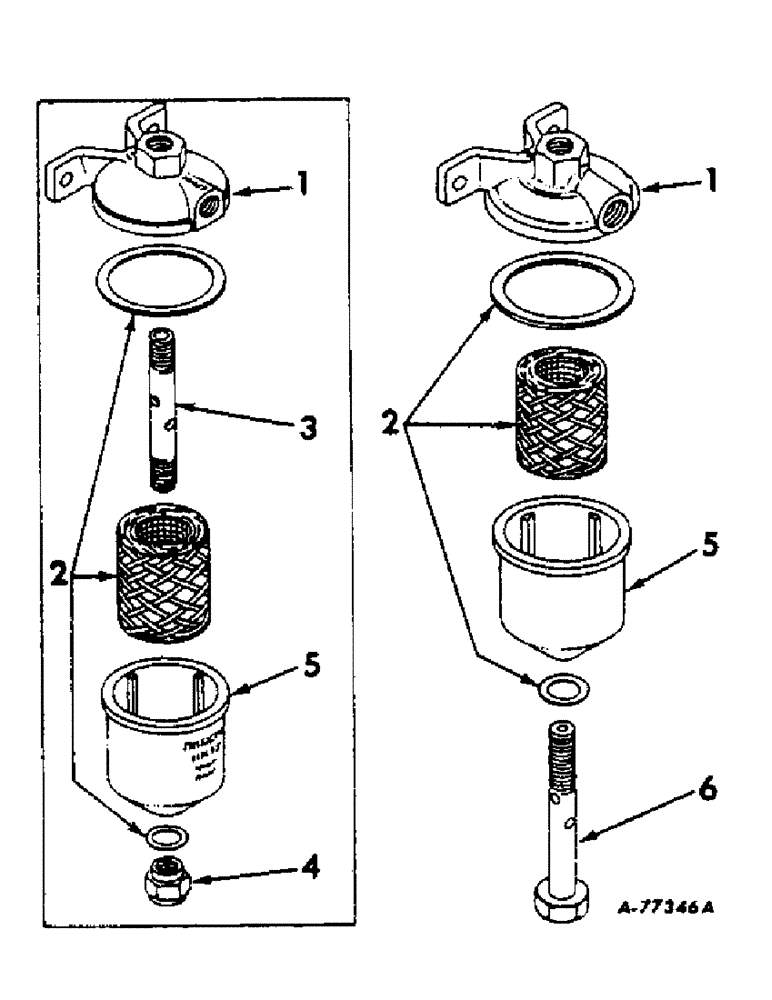

Схема запчастей Case IH 414 - (260) - FUEL FILTER, FOR L.P. GAS BURNING ENGINES (10) - ENGINE
1
3
2
1
6
5
2
4
5

Артикул

Название

Примечание

Количество

346818R91

FILTER ASSY, fuel

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

TOP, filter, Not serviced separately order filter assy

1шт.

2

64400DC

ELEMENT

ASSY, fuel filter

1шт.

3

64402D

STUD, filter

1шт.

4

64403D

NUT, filter stud

1шт.

5

BOTTOM, filter, Not serviced separately order filter assy

1шт.

6

BOLT, filter bottom, Used only with filter, 346818R91

1шт.

Выбрано товаров: 10
