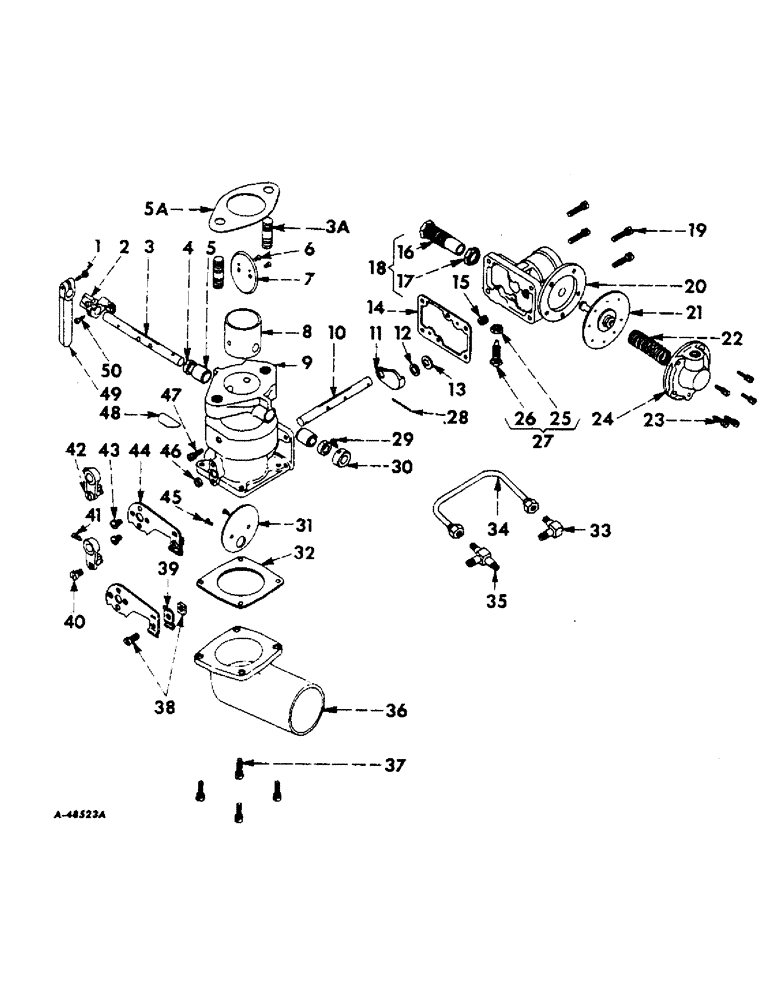

Запчасти Case IH 414 (257) - CARBURETOR, 1-1/4 XG, FOR L.P. GAS BURNING ENGINES (10) - ENGINE

273374R91

CARBURETOR ASSY, 1-1/4 XG

1шт.

NUT, 3/8NF

2шт.

WASHER, 3/8 lock

2шт.

1

154627

SPRING

SCREW, mach fil-hd, chromium, no. 12-24UNC x 5/8

1шт.

2

268153R91

STOP ASSY, throttle

1шт.

3

277187R91

SHAFT AND STOP ASSY, throttle

1шт.

3

279021R91

SHAFT, throttle

1шт.

3

277016R1

STUD, carburetor

2шт.

4

64837D

SEAL, dust

2шт.

5

37024D

BUSHING, throttle bearing

2шт.

5

66453H

GASKET

carburetor

1шт.

6

56370D

SCREW, throttle shaft

2шт.

7

64824D

DISC, throttle

1шт.

8

VENTURI ASSY, Not serviced separately

1шт.

9

279020R91

BODY ASSY, partial, Includes 37024D bushing and 128064R1 plug

1шт.

10

277188R1

SHAFT, choke

1шт.

11

359614R1

LEVER, valve

1шт.

12

359615R1

WASHER, spring

1шт.

13

37183D

WASHER, valve lever

1шт.

14

359624R1

GASKET, economizer and gas inlet

1шт.

15

277192R1

SCREW, bleed, 3/8-24UNF x 5/16

1шт.

16

56429D

SCREW, fuel adjusting

1шт.

17

56430D

NUT, fuel adjusting screw lock

1шт.

18

36761D

SCREW W/LOCK NUT ASSY, fuel adjusting

1шт.

19

132203

SCREW AND LOCKWASHER ASSY, gas inlet Slotted Fil Hd, #12-24 x 7/8"

4шт.

20

277191R91

INLET AND ECONOMIZER ASSY, gas , Consists of ref nos. 15, 18, 21, 22, 23, 24 and 27

1шт.

21

113504R1

DIAPHRAGM, economizer

1шт.

21

359621R91

DIAPHRAGM W/PIN ASSY, economizer

1шт.

22

128071R1

SPRING, economizer

1шт.

23

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

no. 8-32UNC x 5/8 fil-hd

5шт.

23

131182

WASHER, LOCK

WASHER, no. 8 lock

5шт.

24

359623R1

COVER, economizer

1шт.

25

113506

CHAIN

NUT, starting adjusting screw lock

1шт.

26

359620R91

SCREW, starting adjusting

1шт.

27

359619R91

SCREW W/LOCK NUT ASSY, adjusting starting

1шт.

28

359616R1

PIN, valve lever

1шт.

29

36756D

SCREW, type B set

1шт.

30

268154R91

COLLAR ASSY, throttle shaft

1шт.

31

277189R1

DISC, choke

1шт.

32

359627R1

GASKET, air cleaner adapter

1шт.

33

36987D

ELBOW W/SLEEVE AND NUT, 3/16

1шт.

33

120488

SLEEVE,Ball Type, 3/16" Tube

3/16 tube

2шт.

33

1967623C1

PRESSURE SWITCH

3/16 tube

2шт.

34

279022R1

TUBE, economizer to carburetor balance

1шт.

35

19272R11

TEE W/SLEEVE AND NUT, 3/16

1шт.

36

277193R1

ELBOW, air cleaner

1шт.

37

154627

SPRING

SCREW, no. 12-24UNC x 5/8 chromium fil-hd mach

4шт.

38

36778D

SCREW AND NUT, choke tube clamp

1шт.

38

56389D

CLAMP, choke tube

1шт.

39

NOT USED

1шт.

40

120216

BOLT,Short NK, M8 x 60, Cl8.8

no. 10-32UNC x 1/2 cd-pltd slt-fil-hd mach

1шт.

41

36756D

SCREW, type B set

1шт.

42

277190R91

LEVER ASSY, choke and swivel

1шт.

43

443799

SCREW, no. 8-32UNC x 1/4 fil-hd, mach

2шт.

44

58889D

SUPPORT ASSY, choke tube

1шт.

NUT, 32UNC x 3/8 cd-pltd square

1шт.

SCREW, no. 10-32UNC x 3/8 fil-hd mach

1шт.

45

56365D

SCREW, no. 6-32UNC x 9/32 fil-hd mach

2шт.

46

58899D

SEAL, choke dust

1шт.

47

132198

SCREW, venturi set

1шт.

47

131184

CONNECTING LINK

WASHER, venturi lock

1шт.

48

64835D

NOZZLE, balance tube

1шт.

49

277186R91

LEVER ASSY, throttle

1шт.

50

36756D

SCREW, type B set

1шт.

128064R1

PLUG, 3/16 Welch expansion

2шт.
