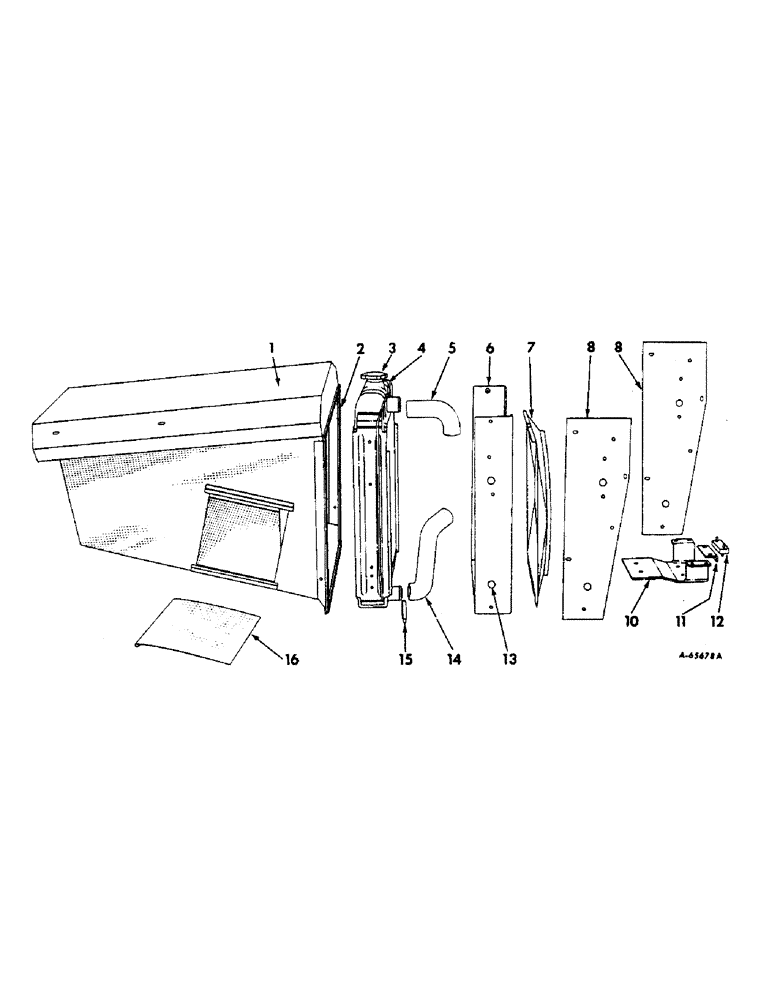

Запчасти Case IH 414 (242) - RADIATOR, RADIATOR SUPPORTS AND SCREEN (10) - ENGINE

1

666086R91

SCREEN, radiator

1шт.

BOLT, 5/16 x 3/4 mach

6шт.

NUT, 5/16

2шт.

WASHER, 5/16 lock

6шт.

WASHER, 11/32 x 3/4 x 16 ga

4шт.

2

666098R1

STRIP, radiator screen sealer

4шт.

3

361705R91

COVER

CAP RADIATOR PRESSURE, Used only with radiator, 370415R92

1шт.

3

393229R91

CAP

radiator pressure, Used with radiators, 370415R93 and 370415R94

1шт.

4

370415R94

RADIATOR ASSY, 416 up to CH1155L, 422, Serial Range: up-CH1966L

1шт.

4

395508R1

RADIATOR ASSY, 416CH1156L and above, 422CH1967 and above

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4 pipe

1шт.

SCREW, 1/4 x 1 cap

4шт.

WASHER, 1/4 lock

4шт.

5

369346R1

RADIATOR HOSE,2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

Inlet, 416 up to CH1155L, 422 up to CH1966L 2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

1шт.

5

395509R1

HOSE

radiator inlet, 416CH1156L and above, 422CH1967L and above

1шт.

6

666056R91

SUPPORT, radiator

1шт.

BOLT W/NUT,1/2 x 1 mach

2шт.

WASHER, 1/2 lock

2шт.

7

315726R2

HOUSING, fan

1шт.

NUT, 1/4

4шт.

SCREW, 1/4 x 5/8 cap

4шт.

WASHER, 1/4 lock

4шт.

8

666099R2

SIDE, radiator support

2шт.

BOLT, 5/16 x 3/4 mach

3шт.

WASHER, 5/16 lock

3шт.

9

NOT USED

1шт.

10

666048R91

SUPPORT, rear engine

1шт.

SCREW, 5/8 x 1-1/4 cap

2шт.

SCREW W/NUT, 5/8 x 1-3/4 cap

2шт.

WASHER, 5/8 lock

4шт.

11

662274R2

ANGLE, engine and radiator support

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

2шт.

WASHER, 1/2 lock

2шт.

WASHER, 17/32 x 1 x 16 ga

2шт.

12

72085R92

INSULATOR

engine mount

1шт.

NUT, 5/16NF

4шт.

WASHER, 5/16 lock

4шт.

13

369932R1

INSULATOR

PLATE, radiator mounting

4шт.

SCREW, no. 8-32 x 1/4 rd-hd self-tapping

16шт.

14

315725R1

RADIATOR HOSE,2.00" ID x 10.25", SAE 20R4

Outlet 2.00" ID x 10.25", SAE 20R4

1шт.

15

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

16

661340R1

DOOR, radiator screen inspection

2шт.
