Запчасти Case IH 414 (235) - LUBRICATING OIL PIPES AND CONNECTIONS (10) - ENGINE

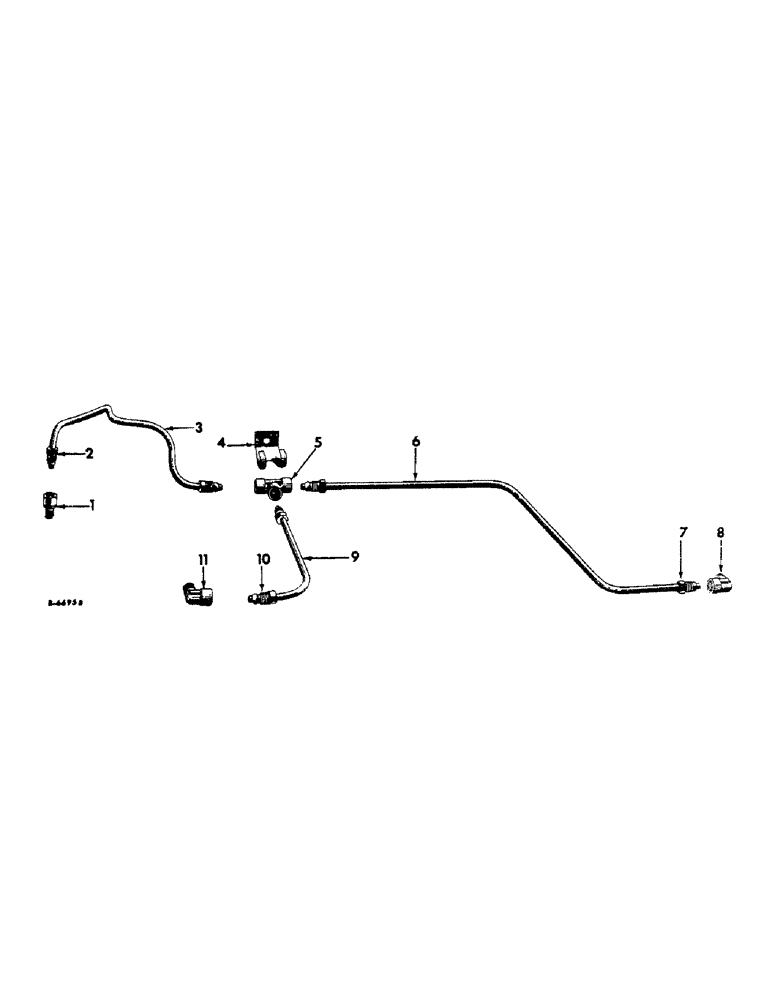

Схема запчастей Case IH 414 - (235) - LUBRICATING OIL PIPES AND CONNECTIONS (10) - ENGINE
10
1
11
3
4
8
6
5
7
9
2

Артикул

Название

Примечание

Количество

1

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

HALF UNION, 1/4

1шт.

2

19984R1

TUBE NUT,7/16"-24

NUT, connector

2шт.

3

356259R1

PIPE, lubricating oil, tee to crankcase front cover

1шт.

4

356258R1

CLIP, lubricating oil pipe tee

1шт.

5

39246D

TEE, lubricating oil pipe 5/16"-24

1шт.

6

356257R3

PIPE, lubricating oil

1шт.

7

19984R1

TUBE NUT,7/16"-24

NUT, oil pressure pipe

2шт.

8

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

oil pressure pipe

1шт.

9

356262R2

PIPE, lubricating oil, tee to hydraulic pump adapter

1шт.

10

19984R1

TUBE NUT,7/16"-24

NUT, oil pressure pipe

2шт.

11

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

oil pressure pipe

1шт.

Выбрано товаров: 11
