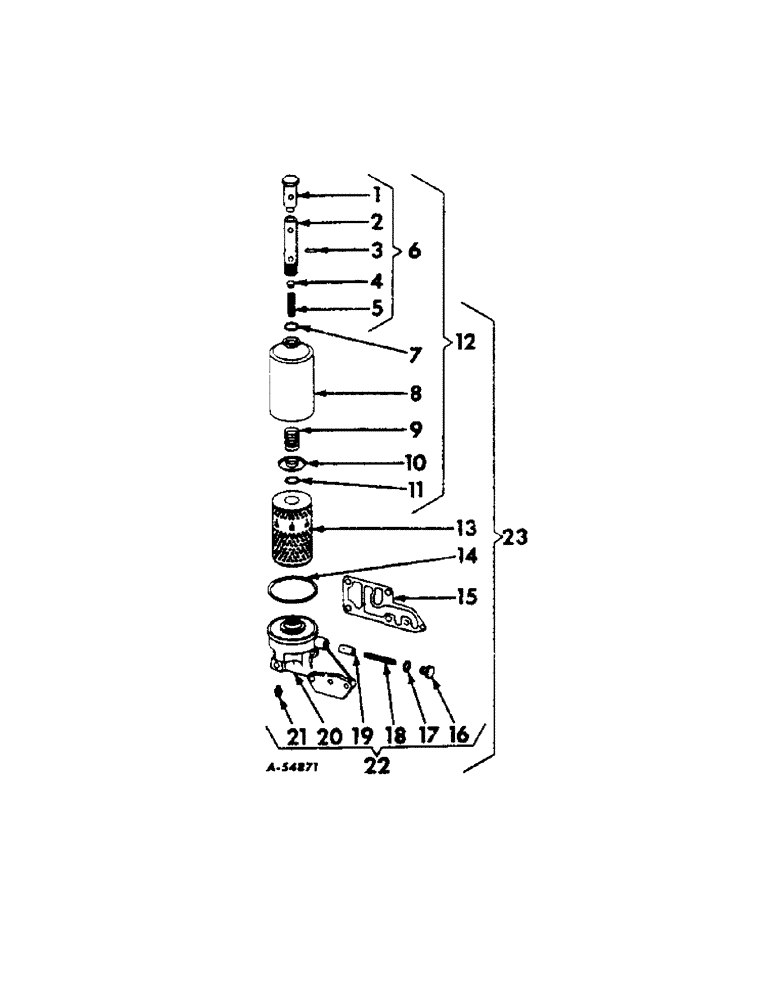

Запчасти Case IH 414 (233) - OIL FILTER (10) - ENGINE

1

NUT, pipe, Order 304005R91, ref no. 6

1шт.

2

304006R11

PIPE, center, Order 304005R91, ref no. 6

1шт.

3

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, , relief valve retaining 5/32" x 1", Slotted

1шт.

PIN, 1/16 x 1-1/4 cotter

1шт.

4

304008R1

VALVE

center tube relief

1шт.

5

304009R1

VALVE SPRING

SPRING, relief valve

1шт.

6

304005R91

FILTER CARTRIDGE

PIPE ASSY, center assy

1шт.

7

320273R91

GASKET

PACKAGE, center tube, Consists of gasket and pin, 103364

1шт.

8

303998R1

BODY

CASE, lubrication oil filter

1шт.

9

304011R1

SPRING

element hold down

1шт.

10

304010R1

WASHER

element retaining

1шт.

11

NOT USED

1шт.

12

303998R11

CASE, lubrication oil filter, Order 371236R91 filter assy, ref. no. 23

1шт.

13

279994R91

ELEMENT

oil filter

1шт.

14

304854R1

RING

GASKET, oil filter body shell

1шт.

15

371238R1

GASKET

oil filter base

1шт.

16

61263VA

PLUG

CAP, oil pressure relief valve

1шт.

17

3405H

GASKET

oil pressure relief valve

1шт.

18

49946HA

VALVE SPRING

SPRING, oil pressure relief valve

1шт.

19

61261VA

LOCK VALVE

VALVE, oil pressure relief

1шт.

20

BASE, oil filter, Order base, 371237R11

1шт.

21

9617020

PLUG,1/4" - 18 x 0.48"

oil filter base drain

1шт.

22

371237R11

BASE ASSY, oil filter

1шт.

23

371236R91

FILTER ASSY, oil, full flow

1шт.

SCREW, 5/16 x 1-5/8 cap

2шт.

SCREW, 7/16 x 1-1/4 cap

1шт.

SCREW, 7/16 x 1-3/4 cap

1шт.

SCREW, 7/16 x 3 cap

2шт.

WASHER, 5/16 lock

2шт.

WASHER, 7/16 lock

4шт.
