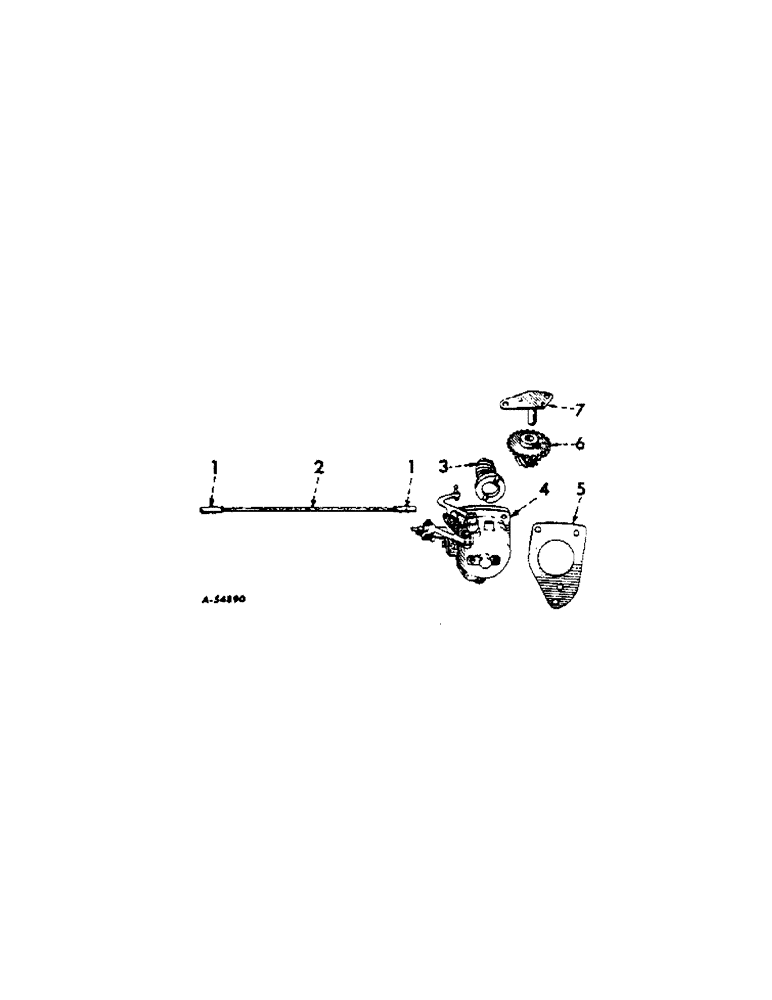

Запчасти Case IH 414 (233[1]) - GOVERNOR CONTROL (10) - ENGINE

1

109415

KNEE JOINT

JOINT, ball, type C, carburetor end

1шт.

1

304164R91

JOINT

ball, type S, governor end

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4NF jam

2шт.

2

275078R1

ROD, governor controlling

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4NF jam

2шт.

3

356270R1

SHAFT, governor drive

1шт.

4

313900R1

GOVERNOR ASSY, For service see governor unit

1шт.

SCREW, 3/8 x 1-1/4 cap

1шт.

SCREW, 3/8 x 1-3/4 cap

2шт.

WASHER, 3/8 lock

3шт.

5

45685D

GASKET

governor housing

1шт.

6

356267R11

GEAR ASSY, governor idler

1шт.

7

356265R11

SHAFT, governor idler gear

1шт.

192279

SCREW, 3/8 x 7/8 type A hex lock

2шт.
