Запчасти Case IH 414 (231) - FAN AND WATER PUMP (10) - ENGINE

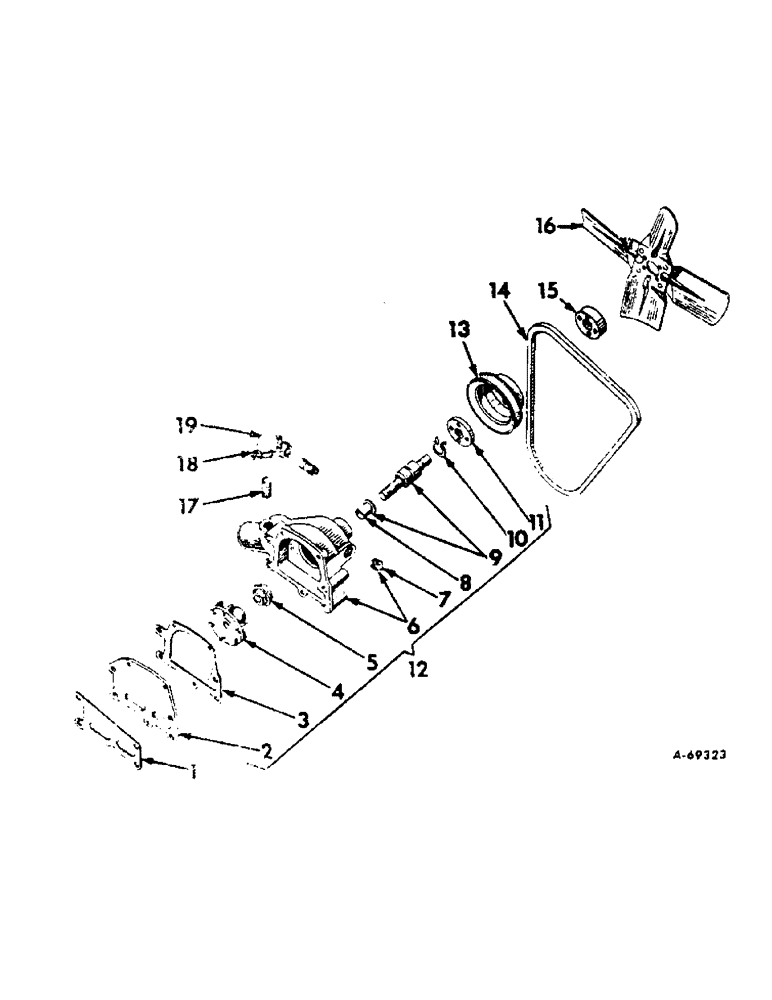

Схема запчастей Case IH 414 - (231) - FAN AND WATER PUMP (10) - ENGINE
3
6
10
2
16
4
15
5
9
11
1
8
19
14
7
18
12
13
17

Артикул

Название

Примечание

Количество

1

69676R1

GASKET

water pump

1шт.

2

274637R1

SPACER, water pump

1шт.

SCREW, 1/4 x 3/4 cap

3шт.

WASHER, 1/4 lock

3шт.

3

69674R1

GASKET

water pump

1шт.

4

69670R1

TORQ CONV IMPELLER

IMPELLER, water pump, Order impeller, 387931R1 and retainer w/seal, 265164C91

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, Used only with pump, 278101R92

1шт.

5

73296R92

SEAL

water pump

1шт.

6

BODY, water pump, Order 278101R92

1шт.

7

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe

1шт.

8

ST641

BEARING AND SHAFT W/SLINGER, 71351R1 assy

1шт.

9

71351R1

SLINGER

water pump

1шт.

10

102069H

RING

SNAP RING, bearing retainer

1шт.

11

116276R1

HUB

fan

1шт.

12

278101R92

PUMP

ASSY, water, Composed of

1шт.

ST645

BEARING AND SHAFT

1шт.

169204R1

BODY (NSS)

1шт.

69674R1

GASKET

1шт.

116276R1

HUB

1шт.

387931R1

TORQ CONV IMPELLER

IMPELLER

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, Sq Hd, 1/2"-14 NPTF

1шт.

265164C91

PACKING RING

RETAINER AND SEAL

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW

3шт.

73296R92

SEAL

1шт.

102069H

RING

SNAP RING

1шт.

274637R1

SPACER

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

SCREW, 3/8 x 3 cap

1шт.

SCREW, 3/8 x 3-1/4 cap

2шт.

WASHER, 3/8 lock

3шт.

13

318362R91

PULLEY

fan and water pump drive

1шт.

14

274705R1

BELT,0.81" W

V-BELT , Fan and water pump 0.81" W

1шт.

15

NOT USED

1шт.

16

267450R91

BLADE ASSY, fan

1шт.

SCREW, 1/4NF x 5/8 cap

4шт.

WASHER, 1/4 lock

4шт.

17

169193R1

PIPE

NIPPLE, water by-pass

2шт.

18

240369R91

CLAMP, water pump by-bass hose

2шт.

19

278102R1

HOSE

ELBOW, water by-pass

1шт.

265164C91

PACKING RING

RETAINER AND SEAL ASSY, water pump, Used only with pump, 278101R92

1шт.

274638R1

STUD, water pump and brace

1шт.

WASHER, 3/8 lock

1шт.

78984R91

KIT, water pump

1шт.

Выбрано товаров: 43
