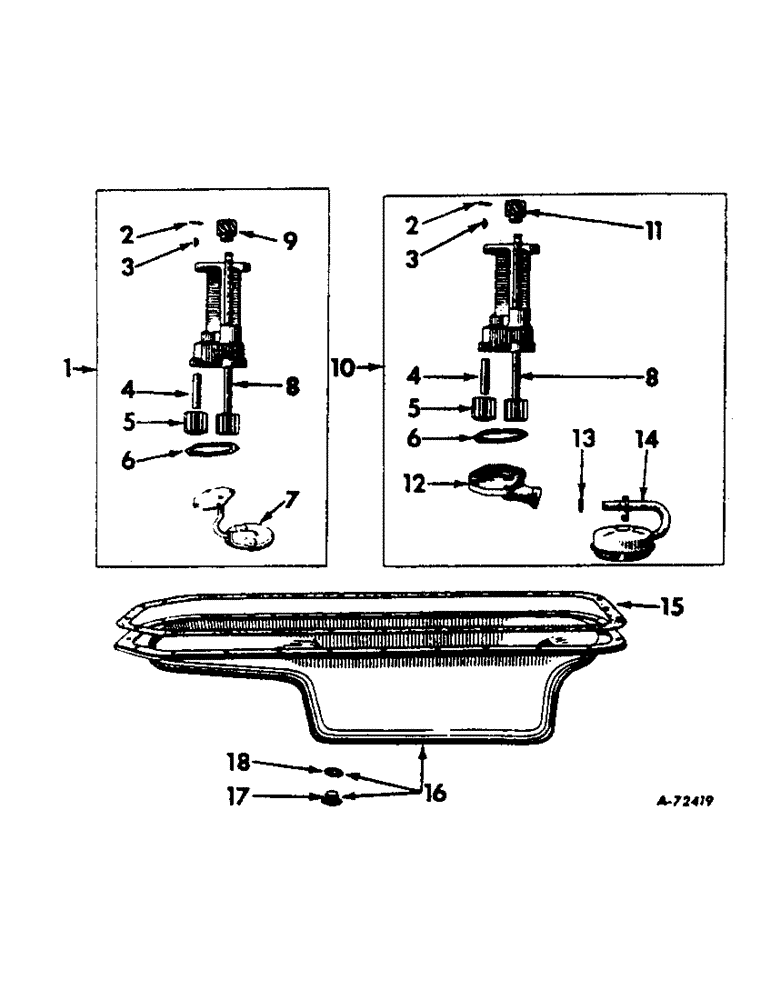

Запчасти Case IH 414 (230) - CRANKCASE OIL PAN AND OIL PUMP (10) - ENGINE

1

379138R91

PUMP, ENGINE OIL

PUMP ASSY, oil, 786347 and above

1шт.

SCREW, 5/16 x 1 cap

2шт.

WASHER, 5/16 lock

2шт.

2

112011

PIN,1/8" x 7/8"

1/8 x 7/8 sq-end straight

1шт.

3

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

KEY, oil pump drive gear, Woodruff no. 5

1шт.

4

35647H

SHAFT

idler gear

1шт.

5

227713R1

GEAR WHEEL

GEAR, pump driven

1шт.

6

69607R1

GASKET

oil pump cover

1шт.

7

379139R91

COVER

AND SCREEN ASSY, oil pump, 786347 and above

1шт.

8

230409R91

GEAR

SHAFT W/GEAR, oil pump drive

1шт.

9

69608R1

GEAR

oil pump drive

1шт.

10

318360R91

PUMP ASSY, oil, Serial Range: Up-786346

1шт.

SCREW, 5/16 x 1 cap

2шт.

WASHER, 5/16 lock

2шт.

11

211389R1

GEAR, oil pump drive

1шт.

12

169679R1

COVER, oil pump body, Serial Range: Up-786346

1шт.

SCREW, 5/16 x 1 cap

4шт.

WASHER, 5/16 lock

4шт.

13

169240R1

O-RING

oil pump screen, Serial Range: Up-786346

1шт.

14

308367R91

FILTER CARTRIDGE

SCREEN ASSY, oil pump, Order 379139R91, Serial Range: Up-786346

1шт.

PIN, 1/8 x 1-1/4 cotter, phosphate coated

1шт.

15

369984R1

GASKET

crankcase pan

1шт.

16

381137R91

PAN

ASSY, crankcase oil

1шт.

SCREW, 5/16 x 3/4 cap

25шт.

WASHER, 5/16 lock

20шт.

WASHER, 11/32 x 11/16 x .065 ga

5шт.

17

445096

PLUG

crankcase oil pan drain

1шт.

18

3405H

GASKET

oil pan drain plug

1шт.
