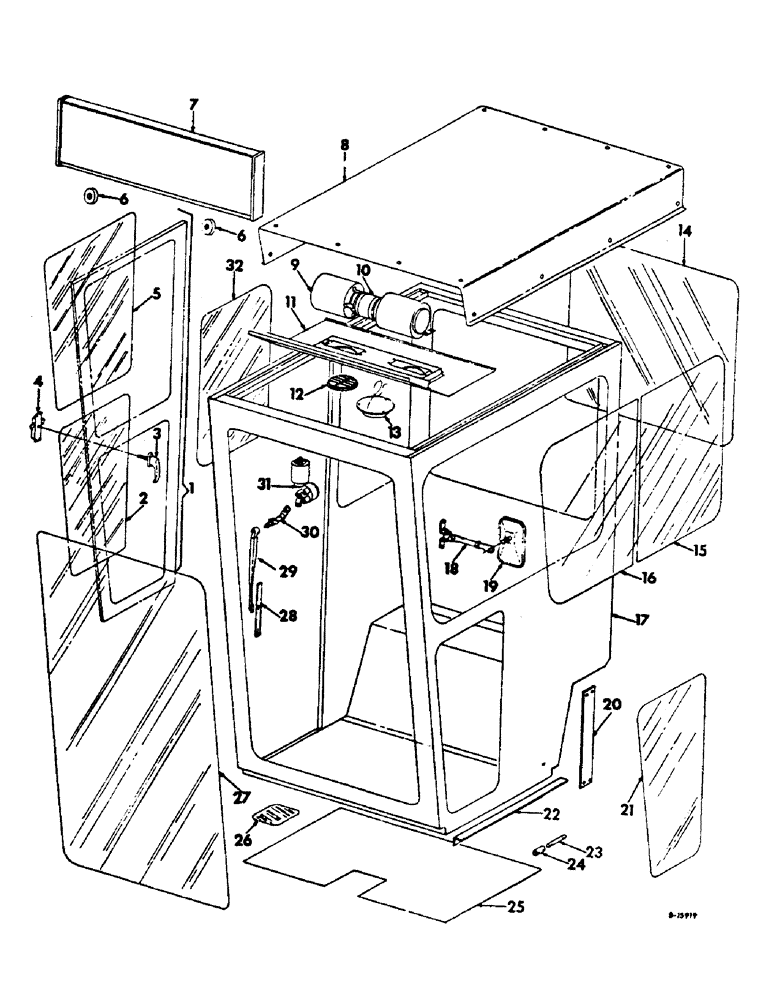

Запчасти Case IH 414 (215) - OPERATORS CAB ATTACHMENT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

204252C91

DOOR ASSY, cab, Includes ref nos 1 through 5

1шт.

2

204253C1

GLASS, door lower

1шт.

3

204255C1

HANDLE, door

1шт.

SCREW, 10-24 x 1/2 set-fil-hd mach

2шт.

WASHER, no. 10 lock

2шт.

4

204256C1

LATCH, door

1шт.

SCREW, 10-24 x 1/2 set-fil-hd mach

4шт.

WASHER, no. 10 lock

4шт.

5

204254C1

GLASS, door upper

1шт.

6

204257C1

ROLLER, door

2шт.

7

926389C1

FILTER, air

1шт.

8

204265C1

ROOF ASSY, cab

1шт.

9

204268C91

BLOWER ASSY, pressurizer, Includes ref no. 10

1шт.

10

204656C1

MOTOR ASSY, pressurizer

1шт.

11

204266C1

PLENUM ASSY, cab

1шт.

SCREW W/NUT, 1/4-20 x 1/2 hex-hd cap

6шт.

WASHER, 1/4 lock

6шт.

WASHER, 9/32 x 3/4 x 16 ga

6шт.

12

204267C1

LOUVER, plenum

2шт.

13

204269C1

LIGHT ASSY, dome

1шт.

14

204263C1

GLASS, rear

1шт.

15

204262C1

GLASS, sliding side

1шт.

16

204261C1

GLASS, stationary side

1шт.

17

FRAME, cab, Not serviced separately

1шт.

18

204276C1

ARM ASSY, mirror

1шт.

19

204277C1

MIRROR ASSY

1шт.

20

204233C1

STRAP, cab hold down

1шт.

SCREW W/NUT, 3/8 x 3/4 hex-hd cap

2шт.

WASHER, 3/8 lock

2шт.

21

204259C1

GLASS, lower left side

1шт.

22

204232C1

STIFFENER, platform left side

1шт.

SCREW W/NUT, 3/8 x 1 hex-hd cap

2шт.

SCREW W/NUT, 3/8 x 1-1/4 hex-hd cap

1шт.

WASHER, 3/8 lock

3шт.

WASHER, 1/2 lock

1шт.

23

204198C1

EXTENSION, drum rod, 416-501 thru 2239, 422-501 thru 3616

1шт.

BOLT W/NUT, 5/16 x 1-1/4 mach

2шт.

WASHER, 5/16 lock

2шт.

24

204199C1

COUPLING, drum rod extension, 416-501 thru 2239, 422-501 thru 422-501 thru 3616

1шт.

25

204657C1

MAT, floor

1шт.

26

204264C1

GLASS, floor

1шт.

27

204258C1

GLASS, windshield

1шт.

28

204642C1

BLADE

windshield wiper

1шт.

29

204275C1

ARM ASSY, windshield wiper

1шт.

30

923478C1

SHAFT, windshield wiper pivot

1шт.

31

204274C1

MOTOR ASSY, windshield wiper

1шт.

32

204260C1

GLASS, right side

1шт.

204270C1

HARNESS ASSY, wiring

1шт.

204271C1

SWITCH ASSY, blower

1шт.

204272C1

SWITCH ASSY, windshield wiper

1шт.

204273C1

BREAKER ASSY, circuit

1шт.

204670C1

FILLER, platform sheet, field application only

1шт.
