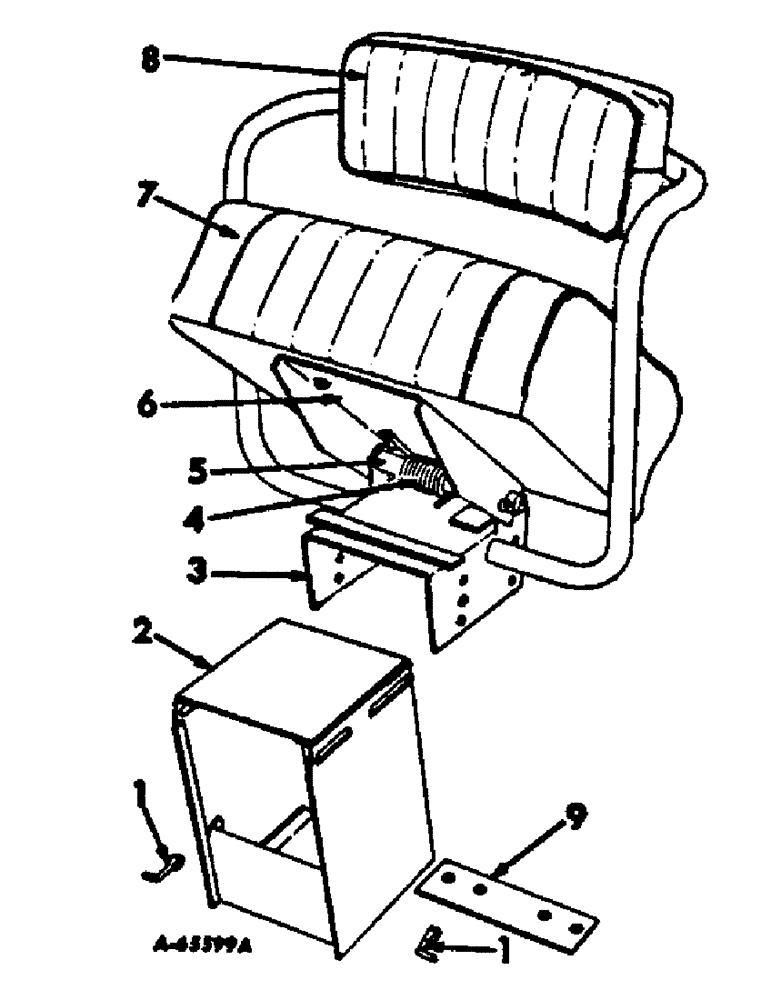

Запчасти Case IH 414 (175) - SEAT AND SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

665901R91

LOCK, seat support nut

4шт.

2

665885R91

SUPPORT, operators seat

1шт.

BOLT W/NUT, 3/8 x 1 mach

4шт.

WASHER, 3/8 lock

4шт.

3

665892R91

PLATE, operators seat

1шт.

BOLT, 3/8 x 3/4 crg

4шт.

4

627221R1

SPRING, operators seat

1шт.

5

665904R1

SHAFT, operator seat pivot

1шт.

PIN, 1/4 x 1-1/2 cotter

2шт.

6

665903R1

PLATE, operators seat base

1шт.

7

627200R91

SEAT, operators

1шт.

BOLT, 1/4 x 1 cd-pltd mach

4шт.

WASHER, 1/4 cd-pltd lock

4шт.

WASHER, 9/32 x 5/8 x 16 ga cd-pltd

4шт.

8

627201R91

REST, operators seat back

1шт.

BOLT, 1/4 x 1 cd-pltd mach

4шт.

WASHER, 1/4 cd-pltd lock

4шт.

9

665891R1

SPACER, seat support

1шт.
