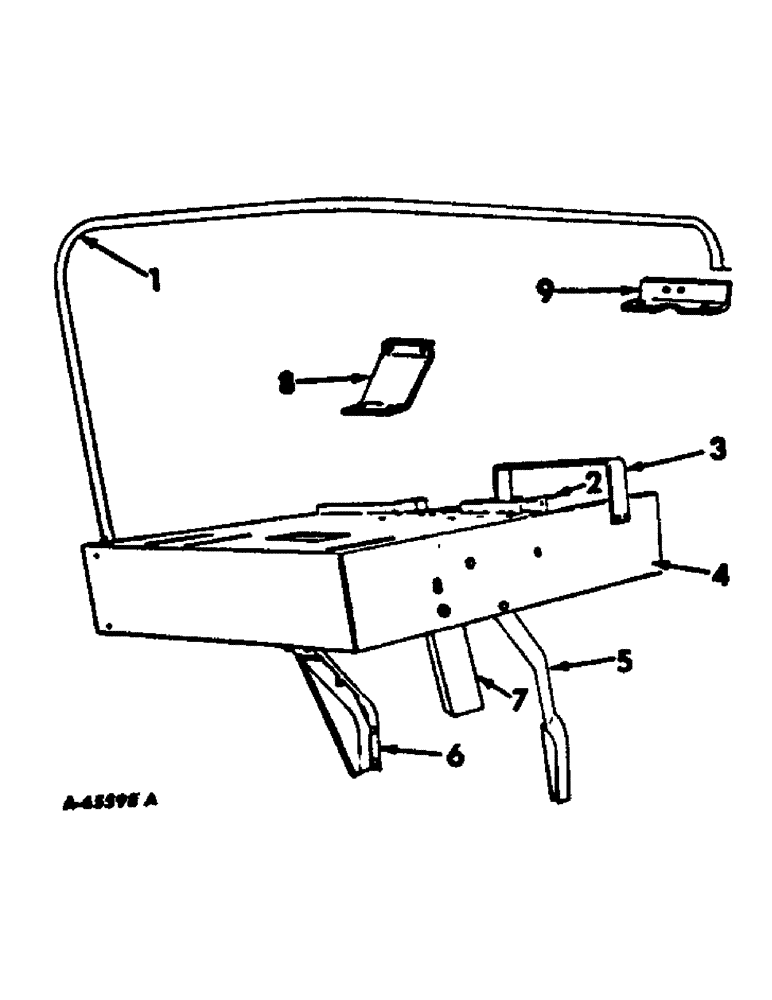

Запчасти Case IH 414 (174) - PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

665877R1

RAIL, platform hand

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

1шт.

BOLT W/NUT, 3/8 x 1-1/2 mach

1шт.

WASHER, 3/8 lock

2шт.

2

665868R91

STIFFENER, platform

1шт.

BOLT W/NUT, 3/8 x 3/4 crg

3шт.

BOLT W/NUT, 3/8 x 3/4 mach

9шт.

WASHER, 3/8 lock

12шт.

WASHER, 13/32 x 3/4 x 16 ga

4шт.

3

665951R1

BRACKET, hydraulic valve

1шт.

BOLT W/NUT, 3/8 x 1 mach

3шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

4шт.

4

665863R92

PLATFORM

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

4шт.

WASHER, 3/8 lock

4шт.

5

209658C1

ANGLE, left platform support

1шт.

BOLT W/NUT, 1/2 x 1 mach

2шт.

BOLT, 1/2 x 1-1/4 mach

2шт.

WASHER, 1/2 lock

4шт.

6

665874R93

ANGLE, right platform support

1шт.

BOLT W/NUT, 1/2 x 1 mach

2шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

WASHER, 1/2 lock

4шт.

7

204286C1

SUPPORT, platform right rear

1шт.

BOLT W/NUT, 1-2 x 1 mach

2шт.

WASHER, 1/2 lock

2шт.

8

204204C1

BRACE, platform corner

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

WASHER, 3/8 lock

2шт.

9

202513C1

ANGLE, handrail support

1шт.
