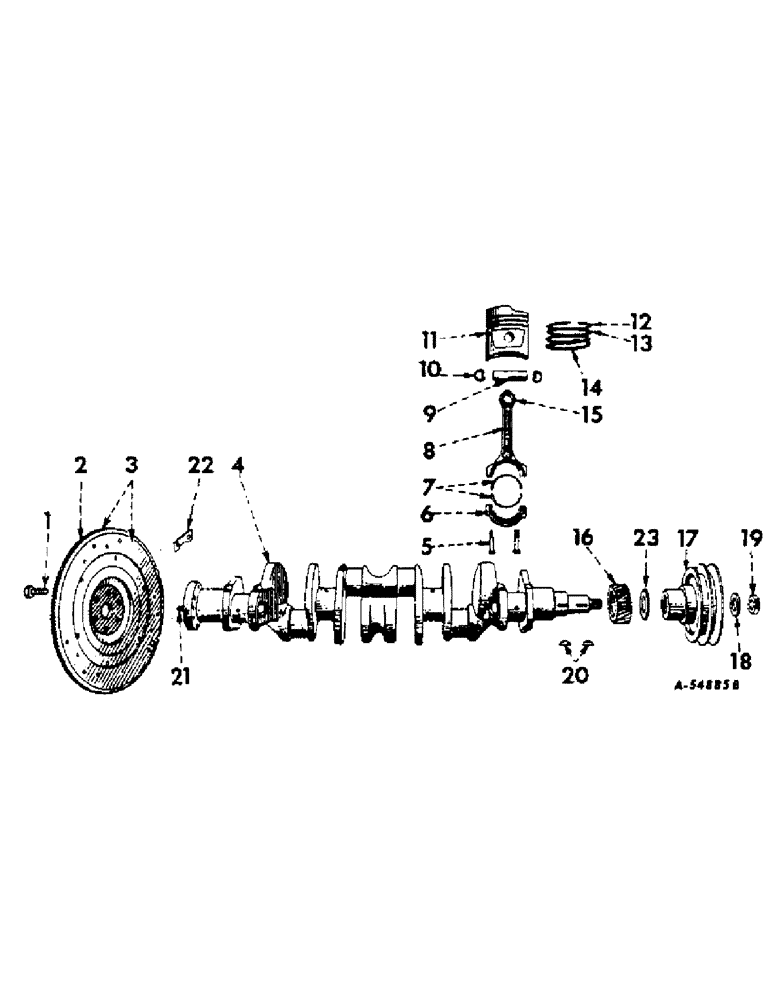

Запчасти Case IH 414 (227) - PISTONS, PINS, CONNECTING RODS, CRANKSHAFT AND FLYWHEEL (10) - ENGINE

1

70426R1

BOLT, flywheel

6шт.

2

95691H

GEAR

flywheel ring

1шт.

3

69496R11

FLYWHEEL W/BALL, 16008R1 and ring gear assy

1шт.

4

382711R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, standard, Consists of six connecting rod bearings for crankshaft bearings, crankshaft and pin, 82970R1

1шт.

4

382716R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, Consists of six connecting rod bearings, four crankshaft bearings, crankshaft and pin, 82970R1

1шт.

5

70013R1

BOLT, connecting rod

12шт.

6

70010R1

CAP, connecting rod, Order 70009R21, ref. no. 8

6шт.

7

141799R11

BEARING ASSY

BEARING, connecting rod, 2 halves, standard

6шт.

7

141804R94

KIT

BEARING, connecting rod, standard, set of 6

1шт.

7

141800R41

BEARING

connecting rod, 2 halves, .002 undersize

6шт.

7

141805R94

KIT

BEARING, connecting rod, .002 undersize, set of 6

1шт.

7

141801R41

BEARING, connecting rod, 2 halves, .020 undersize

6шт.

7

141806R94

BEARING, connecting rod, .020 undersize, set of 6

1шт.

7

141802R41

BEARIING, connecting rod, 2 halves, .030 undersize

6шт.

7

141807R94

BEARING, connecting rod, .030 undersize, set of 6

1шт.

7

141803R41

BEARING, connecting rod, 2 halves, .060 undersize

6шт.

7

155560R94

KIT

BEARING, connecting rod, 2 halves, .010 undersize, set of 6

1шт.

7

141808R94

BEARING, connecting rod, .060 undersize, set of 6

1шт.

7

155579R41

BEARING

connecting rod, .010 undersize

6шт.

8

70009R21

ROD W/CAP, 70010R1 and bushing, 70012R1 assy, connecting

6шт.

9

70014R1

PIN

piston, standard

6шт.

9

70015R1

PIN, piston, .005 oversize

6шт.

10

19517D

SPECIAL RING

RETAINER, piston pin

12шт.

11

172445R11

PISTON W/PIN, 70014R1 and retainers, 19517D assy, standard, gasoline

6шт.

11

172447R11

PISTON W/PIN, 70014R1 and retainers, 19517D assy, .020 oversize, gasoline

6шт.

11

172449R11

PISTON W/PIN, 70014R1 and retainers, 19517D assy, .030 oversize, gasoline

6шт.

11

172450R11

PISTON W/PIN, 70014R1 and retainers, 19517D assy, .040 oversize, gasoline

6шт.

11

172453R11

PISTON W/PIN, 70014R1 and retainers, 19517D assy, standard, L.P. gas

6шт.

12

141868R1

RING, compression piston, standard

6шт.

12

141869R1

RING, compression piston, .020 oversize

6шт.

12

141870R1

RING, compression piston, .030 oversize

6шт.

12

141871R1

RING, compression piston, .040 oversize

6шт.

13

164426R1

RING, compression piston, standard

6шт.

13

173174R1

RING, compression piston, .020 oversize

6шт.

13

173175R1

RING, compression piston, .030 oversize

6шт.

13

173176R1

RING, compression piston, .040 oversize

6шт.

14

190853R91

RING

oil control piston, standard

6шт.

14

149098R91

RING, oil control piston, .020 oversize

6шт.

14

149098R91

RING, oil control piston, .030 oversize

6шт.

14

149099R91

RING, oil control piston, .040 oversize

6шт.

15

70012R1

BUSHING

connecting rod piston pin

6шт.

16

76978R1

GEAR, crankshaft

1шт.

17

274633R1

PULLEY, fan drive and unloader

1шт.

18

70109R1

WASHER

starting crank unit

1шт.

19

219760

BACK-UP RING

starting crank

1шт.

20

103462

KEY

3/16 x 1, no. 13 Woodruff

2шт.

21

82970R1

STUD

PIN, dowel, Serial Range: flywheel-crankshaft

1шт.

22

268048R1

LOCK, flywheel bolt

3шт.

23

308347R1

SLINGER, crankshaft oil

1шт.

173182R91

RING

SET, piston, standard, Consists of

1шт.

141861R1

RINGS

6шт.

164426R1

RINGS

6шт.

190853R91

RING

S

6шт.

173183R91

RING SET, piston, .020 oversize, Consists of

1шт.

141869R1

RINGS

6шт.

173174R1

RINGS

6шт.

149098R91

RINGS

6шт.

173184R91

RING

SET, piston, .030 oversize, Consists of

1шт.

141870R1

RINGS

6шт.

173175R1

RINGS

6шт.

149098R91

RINGS

6шт.

173185R91

RING SET, piston, .040 oversize, Consists of

1шт.

141871R1

RINGS

6шт.

173176R1

RINGS

6шт.

149099R91

RINGS

6шт.
