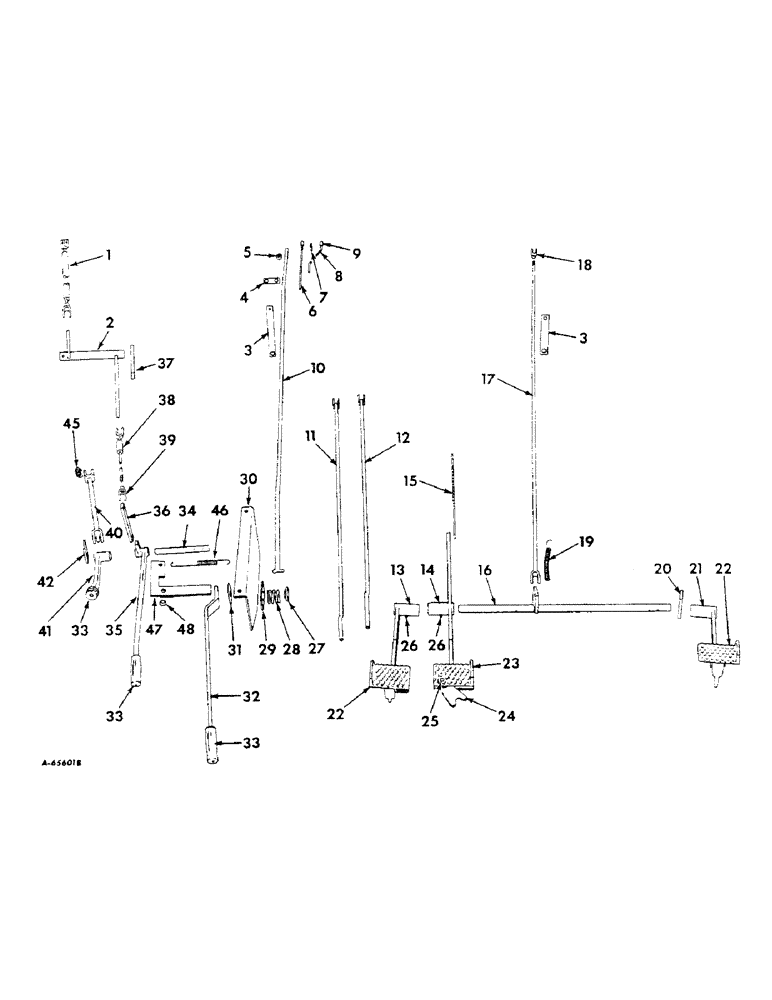

Запчасти Case IH 414 (066) - PEDALS AND RIGHT HAND CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

668099R91

ROD, fan control (4141120G up) (4202060G up)

1шт.

1

667475R11

ROD, fan control (414501E thru 1119G) (420501E thru 2059G)

1шт.

3/32 X 5/8" COTTER PIN

2шт.

1/8 X 1" COTTER PIN

1шт.

327-5094

CLEVIS PIN,5/16" x .940"

5/16" ROD END PIN

1шт.

114787

AXLE PIN

1/2" ROD END PIN

1шт.

2

667466R91

ROCKSHAFT, fan drive

1шт.

3/16 X 1-1/4" COTTER PIN

1шт.

3

661994R1

STRAP, rod support

2шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

4

661810R1

STRAP, governor control rod support rear (For 264 engine only)

1шт.

5

5326

COLLAR, governor control rod

1шт.

3/8" JAM NUT

1шт.

102892

SET SCREW

3/8 X 1/2" SQ-HD CUP-PT SET SCREW

1шт.

6

666042R1

ROD, governor control rear (For 264 and 282 engines only)

1шт.

5/16NF JAM NUT

1шт.

7

275829R2

BALL JOINT, governor control rod (For 264 and 282 engines only)

1шт.

7

666035R1

STUD, ball joint (For 263 engine only)

1шт.

1/4NF JAM NUT

1шт.

1/16 X 1/2" COTTER PIN

1шт.

1/4" LOCK WASHER

1шт.

8

666112R1

ROD, governor control rear (For 263 engine only)

1шт.

1/4NF JAM NUT

1шт.

9

369474R1

TURNBUCKLE

governor control rod (For 263 engine only)

1шт.

5/16NF LEFT HAND NUT

1шт.

10

666046R91

ROD, governor control

1шт.

3/32 X 3/4" COTTER PIN

1шт.

11

665961R91

ROD, hydraulic control valve upper

1шт.

1/8 X 1/2" COTTER PIN

1шт.

1/8 X 1" COTTER PIN

1шт.

517194R1

1/4 X 1-3/8" STD-HD PIN

1шт.

12

665959R91

ROD, hydraulic control valve lower

1шт.

1/8 X 1/2" COTTER PIN

1шт.

1/8 X 1" COTTER PIN

1шт.

517194R1

1/4 X 1-3/8" STD-HD PIN

1шт.

13

666005R91

PEDAL, right brake

1шт.

14

666000R91

PEDAL, left brake

1шт.

15

666006R1

RATCHET, brake pedal

1шт.

1/8 X 3/4" COTTER PIN

1шт.

B921/2

3/8 X 7/8" STD-HD PIN

1шт.

16

666013R91

SHAFT, clutch pedal

1шт.

1/4 X 1-1/2" COTTER PIN

2шт.

17

661303R91

ROD, clutch 1/2NF NUT

1шт.

3/16 X 1" COTTER PIN

1шт.

PG141

PIN

1/2 X 2" STD-HD PIN

1шт.

18

221465

CLEVIS, clutch rod

1шт.

1/8 X 1" COTTER PIN

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

1/2" ROD END PIN

1шт.

19

48599DA

SPRING

pedal return

1шт.

20

666016R1

BEARING, clutch pedal

1шт.

5/16 X 3/4" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

1шт.

21

666012R91

PEDAL, clutch

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

22

627510R1

PAD, clutch pedal

2шт.

3/8 X 1-1/4" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

23

627511R91

PAD, left brake pedal

1шт.

3/8 X 1-1/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

24

43751DB

LATCH, PEDALS

LOCK, brake pedal

1шт.

25

51293D

SPRING

brake lock

1шт.

1/4 X 1-1/4" B-HD RIVET

1шт.

26

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4" drive lubrication

2шт.

27

11840R

WASHER

governor control

1шт.

28

55770D

SPRING

governor control friction

1шт.

29

666045R1

PLATE, governor control

1шт.

1/2 X 3" MACH BOLT

1шт.

452170R1

NUT,1/2"-13, GB

1/2" ELASTIC STOP NUT

1шт.

PO13669

PIN,1/4" x 1 1/8"

1/4 X 1-1/8" STD-HD PIN

1шт.

30

665999R1

SUPPORT, brake cylinder and pedal

1шт.

3/8 X 3/4" CRG BOLT W/NUT

1шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

2шт.

31

58666D

FRICTION WASHER

governor control friction

2шт.

32

666043R1

LEVER, governor control

1шт.

33

662579R1

GRIP

lever

3шт.

34

666298R1

SHAFT, fan and ground drive control

1шт.

1/8 X 1-1/4" COTTER PIN

2шт.

35

665857R1

LEVER, fan control

1шт.

36

667470R1

ARM, fan control

1шт.

37

667471R1

BEARING, fan drive rockshaft

1шт.

5/8 X 3" MACH BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

38

668098R91

ROD, fan control short (4141120G up) (4202060G up)

1шт.

38

667472R91

ROD, fan control short (414501E thru 1119G) (420501E thru 2059G)

1шт.

5/16NF NUT

1шт.

1/8 X 1" COTTER PIN

1шт.

114787

AXLE PIN

1/2" ROD END PIN

1шт.

39

213-315

CLEVIS

5/16" adjustable

1шт.

3/32 X 5/8" COTTER PIN

1шт.

327-5094

CLEVIS PIN,5/16" x .940"

5/16" ROD END PIN

1шт.

40

666161R91

ROD, ground drive lever

1шт.

41

666166R1

LEVER, ground drive control

1шт.

42

666165R1

PLATE, ground drive bearing

1шт.

3/8 X 1" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

43

372751R91

SHOCK ABSORBER

ABSORBER, shock

1шт.

44

666164R1

BRACKET, shock absorber

1шт.

5/16 X 1" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

45

281402R1

SPRING

1шт.

46

10310R

SPRING

latch

1шт.

47

667940R1

LATCH, fan control lever

1шт.

48

362206R1

SPACER

1шт.

3/8 X 1-1/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

13/32 X 1" X 16 GA WASHER

3шт.
