(090[1]) - FUEL LEVEL GAUGE ATTACHMENT

Запчасти Case IH 414 (090[1]) - FUEL LEVEL GAUGE ATTACHMENT (88) - ACCESSORIES

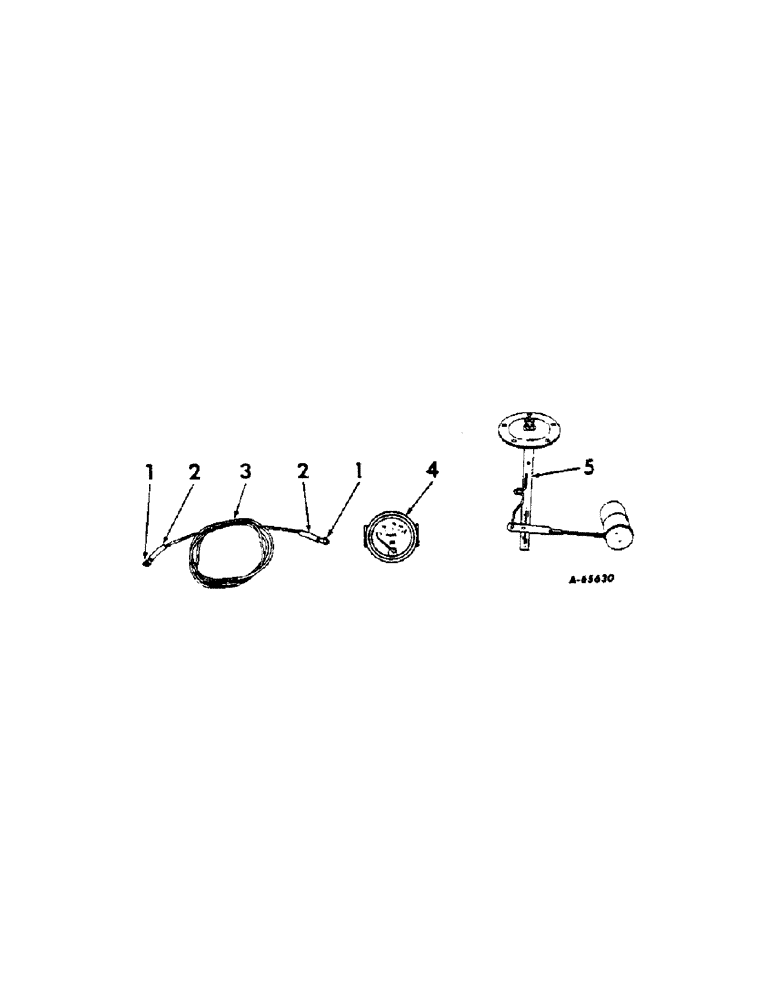

Схема запчастей Case IH 414 - (090[1]) - FUEL LEVEL GAUGE ATTACHMENT (88) - ACCESSORIES
3
2
4
1
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

FUEL LEVEL GAUGE ATTACHMENT (When ordered) (666586R91)

1шт.

1

446658

TERMINAL CONNECTOR

TERMINAL, wire

4шт.

2

28499H

SLEEVE, wire

4шт.

3

666588R91

WIRE, fuel level gauge

1шт.

4

369607R92

GAUGE

fuel level

1шт.

5

666587R91

UNIT, fuel gauge sending

1шт.
