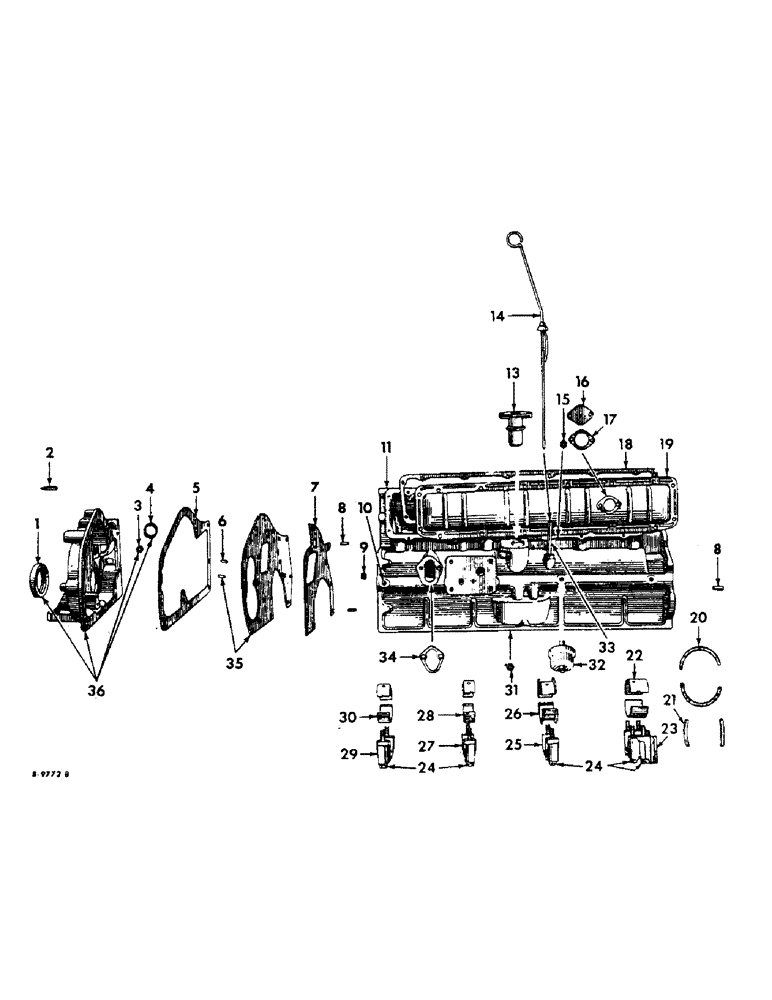

Запчасти Case IH 414 (224) - CRANKCASE, FRONT COVER, CRANKSHAFT BEARINGS, BEARING CAPS AND RELATED PARTS (10) - ENGINE

1

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

OIL SEAL, crankcase front cover

1шт.

2

274634R1

INDICATOR, timing

1шт.

3

356239R1

BUSHING, small governor drive shaft

1шт.

4

356238R1

BUSHING, large governor drive shaft

1шт.

5

356240R2

GASKET

crankcase front cover

1шт.

6

141189

BRACKET

PIN, 1/4 x 1/4 dowel

2шт.

7

356235R1

GASKET

crankcase front plate

1шт.

8

141221

PIN, crankcase front cover dowel 5/16 x 7/8 5/16" x 7/8"

2шт.

9

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8 csk-hd pipe

2шт.

10

134676R1

PLUG, 1/8 sltd-hdls pipe

1шт.

11

316282R11

CRANKCASE ASSY, less main bearings, Composed of

1шт.

356241R1

ADAPTER

1шт.

70133R1

BOLT

BOLT

10шт.

61403HC

BUSHING (NSS)

1шт.

70131R1

BEARING

BUSHING (NSS)

1шт.

70132R1

BEARING

BUSHING (NSS)

1шт.

71326R1

BEARING

BUSHING (NSS)

1шт.

70103R2

CAP

1шт.

70104R2

CAP

1шт.

70105R2

CAP

1шт.

316276R1

CAP

1шт.

316282R11

CRANKCASE (NSS)

1шт.

141221

PIN 5/16" x 7/8"

2шт.

134676R1

PLUG

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

2шт.

70128R1

PLUG,Cup, 1 5/8"

6шт.

70129R1

PLUG,Cup, 2"

2шт.

98375H

PLUG

1шт.

445684

PLUG

1шт.

442854

PLUG

1шт.

103476R93

SET, bearing

1шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

10шт.

12

NOT USED

1шт.

13

356241R1

ADAPTER, distributor mounting

1шт.

14

359159R11

GAUGE W/RETAINER, shield and washer assy, oil lever

1шт.

15

NOT USED

1шт.

16

NOT USED

1шт.

17

NOT USED

1шт.

18

369982R1

GASKET

push rod cover

1шт.

19

69734R11

COVER, push rod

1шт.

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 slt-rd-hd mach

16шт.

20

393180R91

SEAL

OIL SEAL, crankshaft rear bearing cap, one piece

1шт.

21

1738Y

PACKING

crankshaft rear bearing cap

2шт.

22

233253R91

BEARING

W/UPPER AND LOWER HALVES ASSY, crankshaft, rear, standard

1шт.

22

233257R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear, .002 undersize

1шт.

22

233261R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear, .010 undersize

1шт.

22

233265R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear, .020 undersize

1шт.

22

233269R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear, .030 undersize

1шт.

23

316276R1

CAP, rear crankshaft bearing

1шт.

24

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

10шт.

25

70105R2

CAP, rear intermediate crankshaft bearing

1шт.

26

233252R91

CRANKSHAFT BEARING

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear intermediate, standard

1шт.

26

233256R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear intermediate, .002 undersize

1шт.

26

233260R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear intermediate, .010 undersize

1шт.

26

233264R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear intermediate, .020 undersize

1шт.

26

233268R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft, rear intermediate, .030 undersize

1шт.

27

70104R2

CAP, front intermediate crankshaft bearing

1шт.

28

233251R91

CRANKSHAFT BEARING

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front intermediate, standard

1шт.

28

233255R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front intermediate, .002 undersize

1шт.

28

233259R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front intermediate, .010 undersize

1шт.

28

233263R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front intermediate, .020 undersize

1шт.

28

233267R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front intermediate, .030 undersize

1шт.

29

70103R2

CAP, front crankshaft bearing

1шт.

30

233250R91

CRANKSHAFT BEARING

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front, standard

1шт.

30

233254R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front, .002 undersize

1шт.

30

233258R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front, .010 undersize

1шт.

30

233262R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front, .020 undersize

1шт.

30

233266R91

BEARING W/UPPER AND LOWER HALVES ASSY, crankshaft front, .030 undersize

1шт.

31

144569

COCK, DRAIN

VALVE, water drain

1шт.

32

665014R91

SENDER UNIT

UNIT, oil pressure gauge sending

1шт.

33

NOT USED

1шт.

34

128868H

GASKET

fuel pump opening cover, L.P. gas

1шт.

35

356234R21

PLATE W/TWO PINS ASSY, front crankcase

1шт.

SCREW, 3/8 x 3/4 cap

2шт.

WASHER, 3/8 lock

2шт.

36

356236R21

COVER ASSY, crankcase front, Composed of

1шт.

356238R1

BUSHING

1шт.

356239R1

BUSHING

1шт.

356236R2

COVER INDICATOR (NSS)

1шт.

274634R1

TIMING

1шт.

357672R91

OIL SEAL

OIL SEAL

1шт.

SCREW, 3/8 x 2-1/4 cap

1шт.

SCREW, 3/8 x 3/4 cap

3шт.

SCREW, 3/8 x 1-1/4 cap

1шт.

SCREW, 3/8 x 2-1/2 cap

2шт.

SCREW, 3/8 x 3-1/4 cap

2шт.

SCREW, 5/16 x 1 cap

1шт.

WASHER, 5/16 lock

1шт.

WASHER, 3/8 lock

9шт.

233274R92

KIT

BEARING SET, crankshaft, standard, Consists of

1шт.

233250R92

SHANK

BEARING

1шт.

233251R91

CRANKSHAFT BEARING

BEARING

1шт.

233252R91

CRANKSHAFT BEARING

BEARING

1шт.

233253R91

BEARING

1шт.

233275R91

BEARING SET, crankshaft, .002 undersize, Consists of

1шт.

233254R91

BEARING

1шт.

233255R91

BEARING

1шт.

233256R91

BEARING

1шт.

233257R91

BEARING

1шт.

233276R91

BEARING SET, crankshaft, .010 undersize, Consists of

1шт.

233258R91

BEARING

1шт.

233259R91

BEARING

1шт.

233260R91

BEARING

1шт.

233261R91

BEARING

1шт.

233277R91

BEARING SET, crankshaft, .020 undersize, Consists of

1шт.

233262R91

BEARING

1шт.

233263R91

BEARING

1шт.

233264R91

BEARING

1шт.

233265R91

BEARING

1шт.

233278R91

BEARING SET, crankshaft, .030 undersize, Consists of

1шт.

233266R91

BEARING

1шт.

233267R91

BEARING

1шт.

233268R91

BEARING

1шт.

233269R91

BEARING

1шт.

356243R1

COVER, fuel pump pad, L.P gas

1шт.

SCREW, 5/16 x 5/8 cap

2шт.

WASHER, 5/16 lock

2шт.

70128R1

PLUG,Cup, 1 5/8"

core hole, in crankcase

6шт.

70129R1

PLUG,Cup, 2"

core hole, in crankcase

2шт.

98375H

PLUG

oil gauge hole

1шт.
