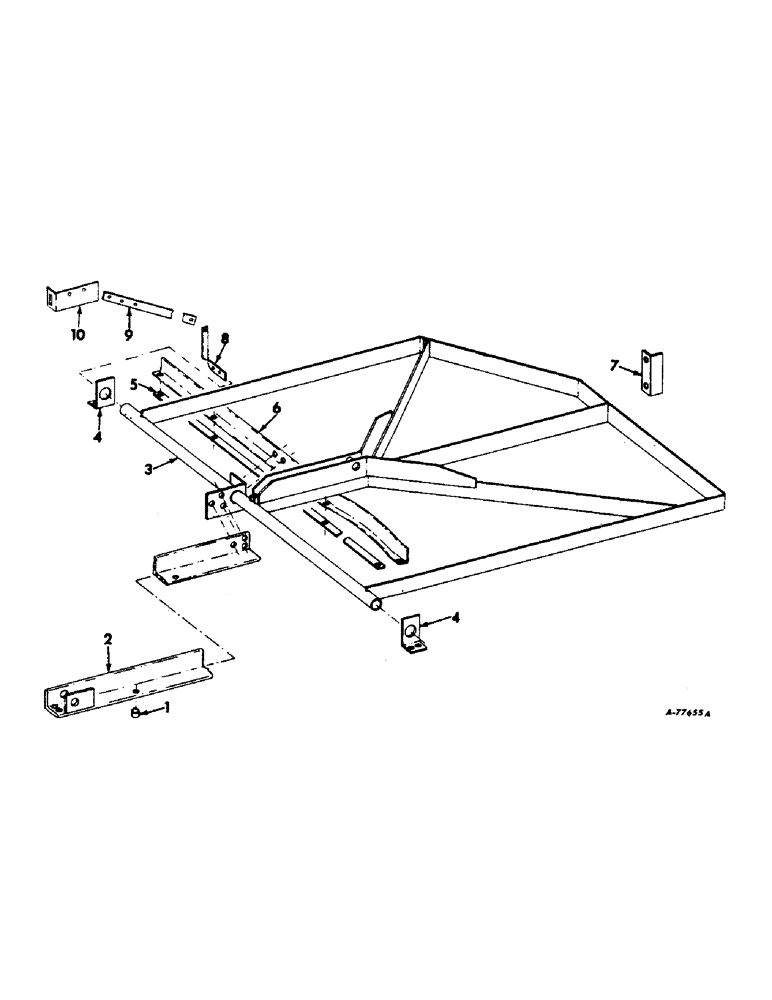

Запчасти Case IH 414 (210) - BASKET DISTRIBUTOR ATTACHMENT, VANE AND MOUNTING PARTS (80) - CROP STORAGE/UNLOADING

1

K11064

SPACER,3/8" Pipe x 1 1/4"

cylinder

5шт.

2

669420R91

ANGLE ASSY, cylinder

1шт.

BOLT W/NUT, 5/16 x 2-1/2 mach

3шт.

BOLT W/NUT, 3/8 x 2-1/2 mach

32шт.

WASHER, 5/16 lock

3шт.

WASHER, 3/8 lock

2шт.

3

669404R92

VANE ASSY, packer, For pickers equipped with basket extension attachment

1шт.

3

669415R92

VANE ASSY,packer, For pickers equipped with standard basket

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

5шт.

PIN, 1/4 x 2-3/4 cotter

2шт.

WASHER, 1/2 lock

5шт.

4

669426R1

BEARING, vane

2шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

4шт.

WASHER, 3/8 lock

4шт.

WASHER, 13/32 x 3/4 x 16 ga

6шт.

5

669434R1

STRAP, basket bottom mesh

1шт.

6

669427R1

ANGLE, basket bottom

1шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

7

669559R1

ANGLE, basket support rear reinforcement

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

WASHER, 1/2 lock

2шт.

8

670854R1

ARM, indicator

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

670855R1

STRAP, indicator

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

M909

HEADED PIN,3/8" x 3/4"

PIN, 3/8 x 3/4 std-hd

1шт.

10

670856R1

BRACKET, indicator

1шт.
