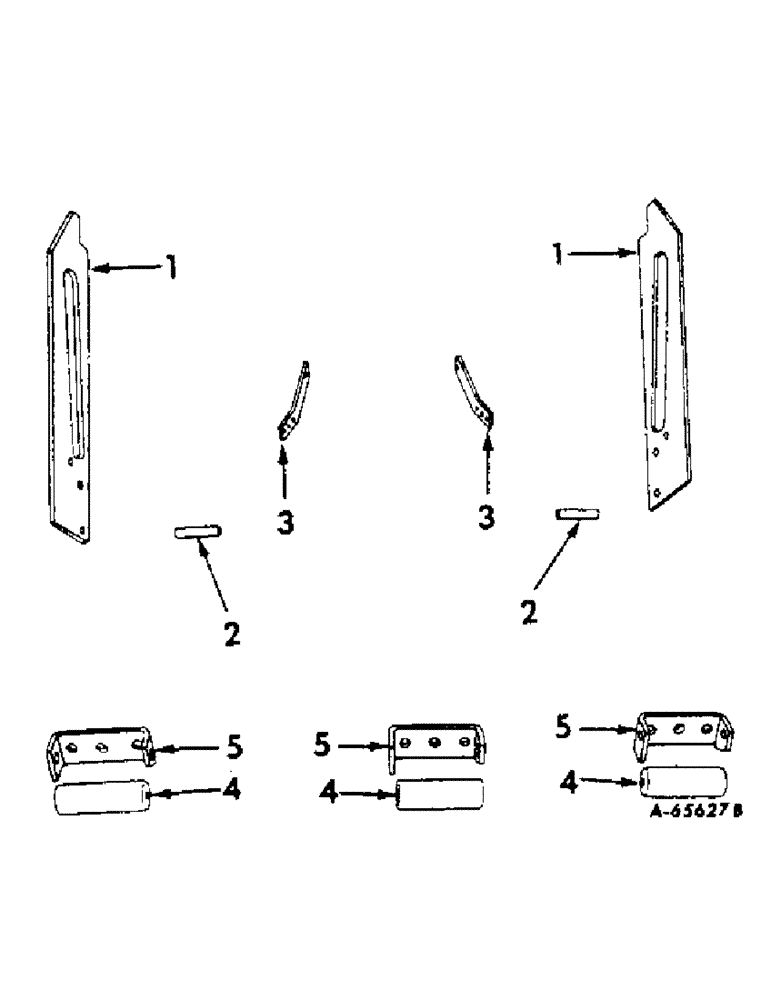

Запчасти Case IH 414 (196[1]) - BASKET HIGH LIFT, BASKET PIVOT BEARING PLATES AND ROLLERS (80) - CROP STORAGE/UNLOADING

BASKET HIGH LIFT ATTACHMENT, when ordered 664441R94, Includes 665273R91 hydraulic cylinder

1шт.

1

664444R2

PLATE, basket pivot bearing

2шт.

2

665274R1

ROLLER, basket stop

2шт.

3

664430R1

STRAP, basket cover lever

2шт.

BOLT, 1/2 x 1-1/2 mach

2шт.

NUT, 1/2 jam

4шт.

4

664951R1

ROLLER, basket guide

3шт.

PIN, 3/16 x 1 cotter

3шт.

CP10039

HEADED PIN,1/2" x 6 1/2"

PIN, 1/2 x 6-1/2 roller

3шт.

5

664952R2

BRACKET, roller

3шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

BOLT W/NUT, 1/2 x 1-3/4 mach

4шт.

WASHER, 1/2 lock

6шт.
