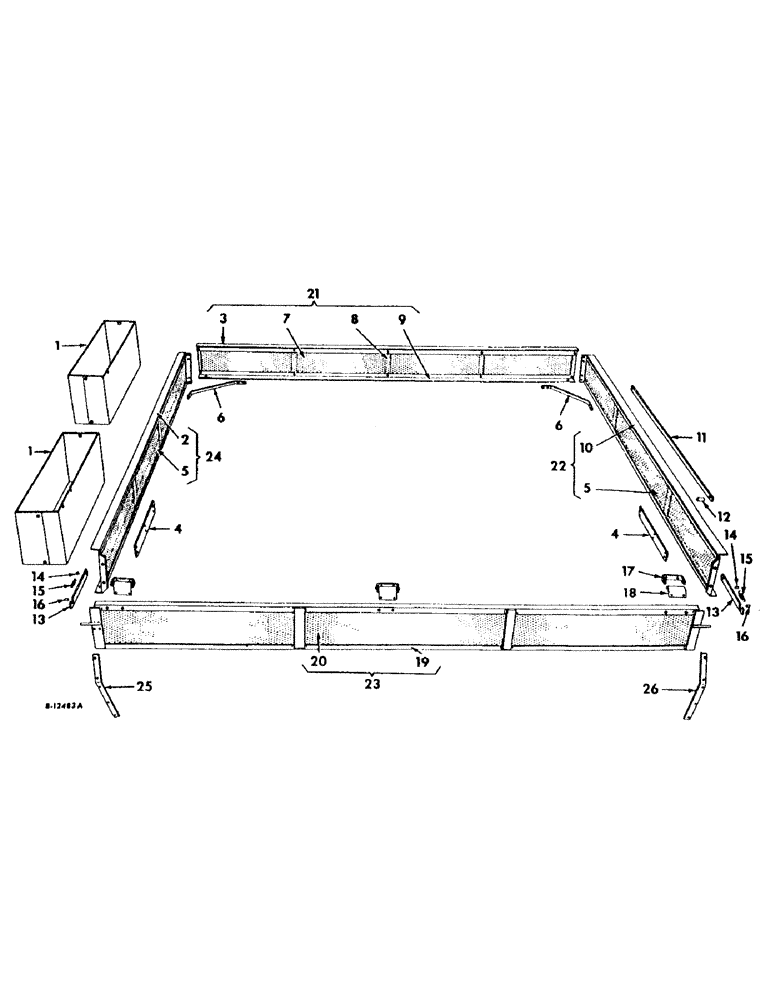

Запчасти Case IH 414 (169) - BASKET EXTENSION (80) - CROP STORAGE/UNLOADING

1

664426R11

EXTENSION DISTRIBUTOR, welded assy, 416-501 thru 1550, 422-501 thru 3076

2шт.

1

202424C1

EXTENSION, distributor, 416-1551 and up, 422-3077 and up

2шт.

BOLT W/NUT, 5/16 x 3/4 crg

20шт.

WASHER, 5/16 lock

20шт.

WASHER, 11/32 x 3/4 x 16 ga

4шт.

2

664418R93

FRAME, front basket extension ends, welded assy

1шт.

3

661066R1

ANGLE, right basket side

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

4шт.

BOLT W/NUT, 5/16 x 1 mach

16шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

BOLT W/NUT,1/2 x 1 mach

9шт.

RIVET, 3/16 x 5/8 b-hd

4шт.

WASHER, 5/16 lock

20шт.

WASHER, 3/8 lock

4шт.

WASHER, 1/2 lock

9шт.

4

664427R2

STRAP, reinforcing

2шт.

BOLT W/NUT, 5/16 x 1 mach

12шт.

WASHER, 5/16 lock

12шт.

5

664419R91

MESH, basket extension end, welded assy

2шт.

BOLT W/NUT, 1/2 x 1 mach

11шт.

RIVET, 3/16 5/8 b-hd

28шт.

RIVET, 3/16 x 3/4 b-hd

8шт.

WASHER, 1/2 lock

11шт.

6

661086R1

BRACE, basket corner

2шт.

BOLT W/NUT, 3/8 x 1 mach

8шт.

WASHER, 3/8 lock

8шт.

7

664422R91

MESH, right basket extension side, welded assy

1шт.

8

664415R1

CHANNEL, basket extension

9шт.

BOLT W/NUT, 5/16 x 1 mach

8шт.

WASHER, 5/16 lock

8шт.

9

664414R1

ANGLE, lower right side

1шт.

10

664409R93

FRAME, rear basket extension end, welded assy

1шт.

11

664417R1

BRACE, long basket cover lever

1шт.

BOLT W/NUT, 3/8 x 1-1/2 mach

1шт.

SCREW W/NUT, 1/2 x 3-3/4 cap

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 1/2 lock

1шт.

12

517920R1

SPACER,1/2" Pipe x 2"

BASKET LEVER ARM BRACE

1шт.

13

664400R1

ARM, extension door lock

2шт.

BOLT W/NUT, 5/16 x 1-1/4 mach

2шт.

PIN, 3/16 x 1 cotter

2шт.

WASHER, 5/16 lock

2шт.

WASHER, 11/32 x 7/8 x 16 ga

2шт.

WASHER, 9/16 x 1-3/8 x 12 ga

2шт.

14

86224H

SPACER,1/4" Pipe x 3/8"

Door lock arm pivot 1/4" Pipe x 3/8"

2шт.

15

127361H

SPRING

basket extension door lock arm return

2шт.

16

61401V

SPACER, door lock arm stop

2шт.

BOLT W/NUT, 1/4 x 1-1/2 mach

2шт.

WASHER, 1/4 lock

2шт.

WASHER, 9/32 x 5/8 x 16 ga

2шт.

17

662433R1

HINGE, basket cover

3шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

6шт.

PIN, 3/16 x 1 cotter

3шт.

590275R1

HEADED PIN,7/16" x 4 3/4"

PIN, 7/16 x 4-3/4 std-hd

3шт.

WASHER, 3/8 lock

6шт.

18

664398R91

HINGE, lower basket extension door, welded assy

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

6шт.

WASHER, 3/8 lock

6шт.

19

664404R91

FRAME, basket extension, welded assy

1шт.

20

664424R91

MESH, basket extension door, welded assy

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 b-hd

16шт.

104068

RIVET, 3/16 x 5/8 b-hd But Hd, 3/16" x 5/8"

4шт.

N32146

WASHER, 13/64 x 7/8 x 18 ga

6шт.

21

664961R91

SIDE, right basket extension, riveted assy

1шт.

22

664963R92

END, basket extension rear, riveted assy

1шт.

23

664964R91

DOOR, basket extension, riveted assy

1шт.

24

664962R92

END, front basket extension, riveted assy

1шт.

25

665269R2

SUPPORT, front basket extension

1шт.

BOLT W/NUT, 5/16 x 1 mach

3шт.

NUT, 5/16

2шт.

SCREW, 5/16 x 1-1/4 fl-hd

2шт.

WASHER, 5/16 lock

5шт.

26

664270R2

SUPPORT, rear basket extension

1шт.

BOLT W/NUT, 5/16 x 1 mach

3шт.

NUT, 5/16

2шт.

SCREW, 5/16 x 1-1/4 fl-hd

2шт.

WASHER, 5/16 lock

5шт.
