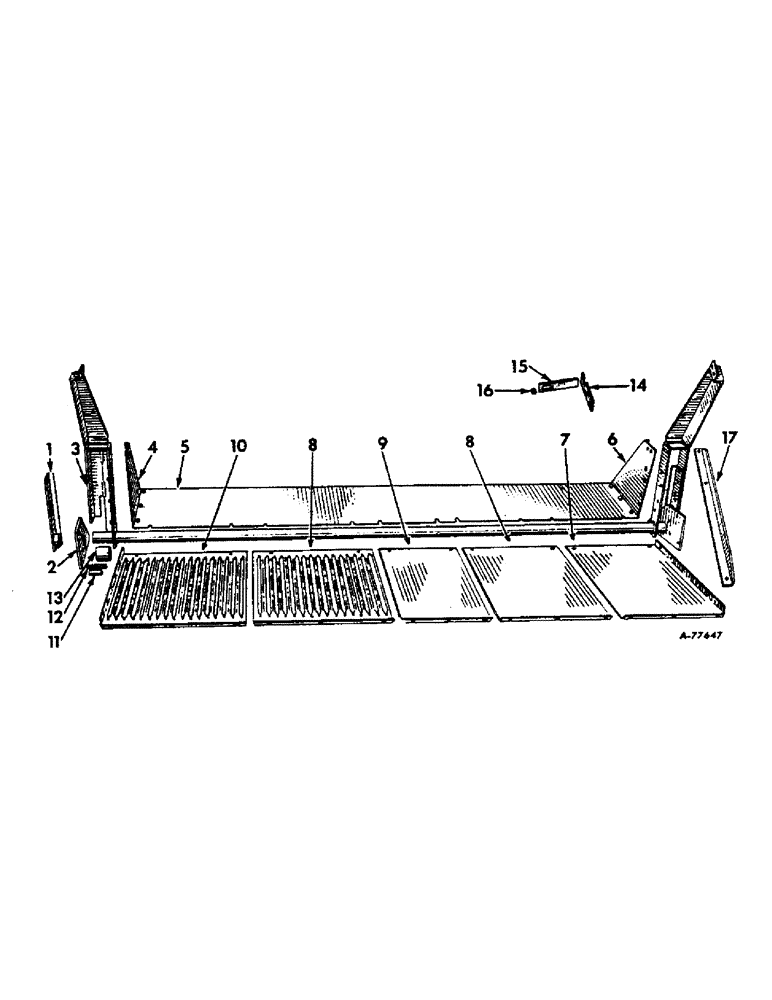

Запчасти Case IH 414 (168) - BASKET PIVOT SHAFT AND BASKET SECTIONS (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
664459R91
PLATE, rear basket pivot shaft arm, welded assy
1шт.
1
664458R91
PLATE, front basket pivot shaft arm, welded assy
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
4шт.
BOLT W/NUT, 1/2 x 3-3/4 mach
1шт.
WASHER, 1/2 lock
5шт.
2
664921R1
PLATE, basket pivot bearing
2шт.
3
664449R92
SHAFT, basket pivot welded assy
1шт.
BOLT W/NUT, 5/16 x 3 mach
10шт.
BOLT W/NUT, 3/8 x 1 mach
8шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
8шт.
BOLT W/NUT, 1/2 x 1-1/4 plow
4шт.
BOLT W/NUT, 5/8 x 5-3/4 mach
2шт.
BOLT W/NUT, 3/4 x 5-3/4 mach
2шт.
WASHER, 5/16 lock
10шт.
WASHER, 3/8 lock
8шт.
WASHER, 1/2 lock
12шт.
WASHER, 5/8 lock
2шт.
WASHER, 3/4 lock
2шт.
WASHER, 11/32 x 3/4 x 16 ga
10шт.
4
665083R1
SIDE, rear basket extension
1шт.
BOLT W/NUT, 5/16 x 3/4 mach
2шт.
WASHER, 5/16 lock
2шт.
5
661138R2
EXTENSION, basket
1шт.
BOLT W/NUT, 5/16 x 1/2 mach
6шт.
WASHER, 5/16 lock
6шт.
WASHER, 11/32 x 3/4 x 16 ga
6шт.
6
665082R1
SIDE, front basket extension
1шт.
BOLT W/NUT, 5/16 x 3/4 mach
2шт.
WASHER, 5/16 lock
2шт.
7
668423R1
SECTION, basket sloping side end
1шт.
BOLT W/NUT, 5/16 x 3/4 crg
4шт.
BOLT W/NUT, 5/16 x 3/4 mach
3шт.
BOLT W/NUT, 3/8 x 3/4 mach
1шт.
WASHER, 5/16 lock
7шт.
WASHER, 3/8 lock
1шт.
8
668425R1
SECTION, center basket sloping side
2шт.
BOLT W/NUT, 5/16 x 3/4 mach
6шт.
WASHER, 5/16 lock
6шт.
9
668426R1
SECTION, center narrow basket sloping side
1шт.
BOLT W/NUT, 5/16 x 3/4 mach
2шт.
BOLT W/NUT, 5/16 x 1 mach
1шт.
WASHER, 5/16 lock
3шт.
10
668424R1
SECTION, rear basket sloping side
1шт.
BOLT W/NUT, 5/16 x 3/4 crg
4шт.
BOLT W/NUT, 5/16 x 3/4 mach
3шт.
BOLT W/NUT, 3/8 x 3/4 mach
1шт.
WASHER, 5/16 lock
7шт.
WASHER, 3/8 lock
1шт.
11
664455R1
SPACER, basket cylinder push rod
2шт.
557270R1
WASHER
29/32 x 1-1/4 x 11 ga
4шт.
12
665220R1
SPACER,3/4" X-Strng Pipe x 3 7/8"
BUSHING, basket stop
2шт.
13
664446R1
BEARING, basket pivot
2шт.
14
665113R1
LATCH, basket
1шт.
15
665114R1
LATCH, safety
1шт.
16
PO11230
SPACER,3/8" Pipe x .406"
BUSHING, safety latch
1шт.
SCREW W/NUT, 7/16 x 1-3/4 cap
1шт.
WASHER, 7/16 lock
1шт.
188755R1
WASHER
15/32 x 1-1/2 x 11 ga
2шт.
17
665182R1
SUPPORT, basket sloping side
1шт.
BOLT W/NUT, 5/16 x 1 mach
1шт.
BOLT W/NUT, 5/16 x 3-1/4 mach
1шт.
WASHER, 5/16 lock
2шт.
WASHER, 11/32 x 3/4 x 16 ga
1шт.
Выбрано товаров: 63
