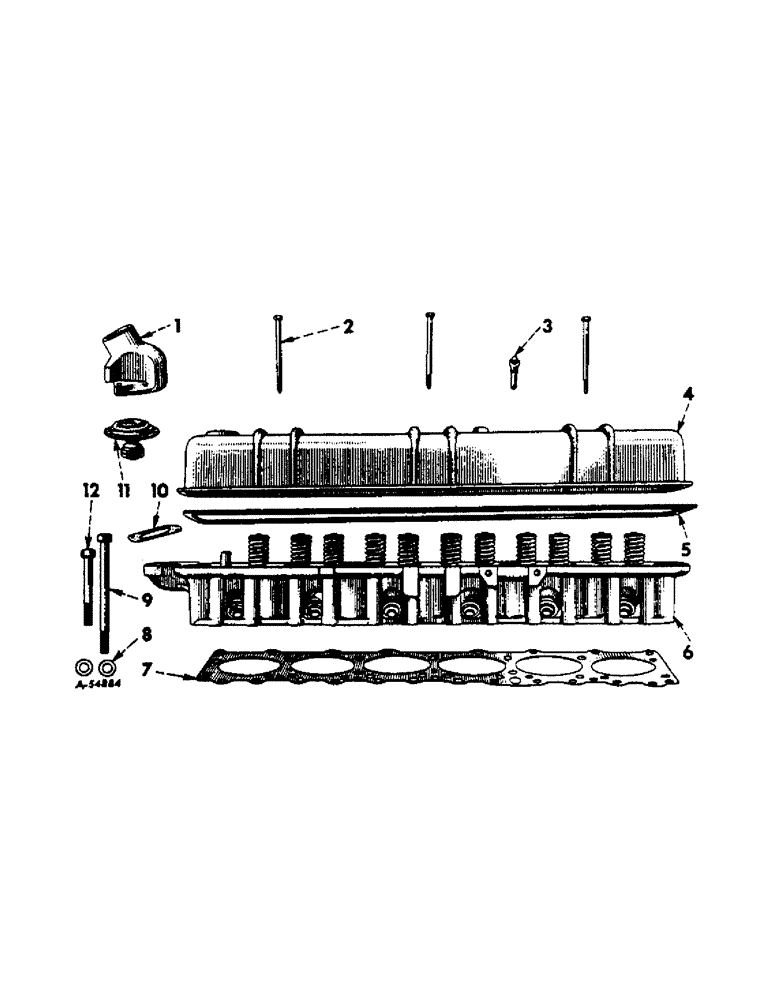

Запчасти Case IH 414 (223) - CYLINDER HEAD, VALVE COVER AND CONNECTIONS (10) - ENGINE

1

359999R2

ELBOW, water outlet

1шт.

SCREW, 5/16 x 1-1/8 cap

2шт.

WASHER, 5/16 lock

2шт.

2

168144R1

BOLT (SPREADER)

BOLT, cylinder head cover

3шт.

Q399

WASHER

5/16 plain

3шт.

3

665016R91

TEMPERATURE SENDER

UNIT ASSY, temperature sending

1шт.

4

378617R91

COVER

ASSY, cylinder head

1шт.

164420R1

GROMMET

cylinder head cover

3шт.

5

369983R1

GASKET

cylinder head cover

1шт.

6

184874R93

HEAD W/VALVES AND SPRINGS ASSY, cylinder, Composed of

1шт.

84482R1

CUP

6шт.

75941H

DAMPER

12шт.

866834R1

BAFFLE

DEFLECTOR

6шт.

184873R93

HEAD

1шт.

41339D

KEY

LOCK

12шт.

84484R3

RETAINER

LOCK

12шт.

151167R3

SEAT

RETAINER

6шт.

105306R2

CUP

RETAINER

6шт.

76954R1

SPRING

12шт.

164429R1

VALVE

6шт.

234276R1

VALVE

6шт.

127985R1

VALVE

6шт.

6

184873R93

HEAD W/VALVE STEM GUIDES ASSY, cylinder, Composed of

1шт.

164414R1

HEAD (NSS)

1шт.

237248R1

GUIDE

12шт.

103867

PLUG

1шт.

70128R1

PLUG,Cup, 1 5/8"

1шт.

126373R1

SEAT

RING

6шт.

7

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

8

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

15шт.

9

118643HA

BOLT

long cylinder head

7шт.

10

69742R1

GASKET

water outlet elbow

1шт.

11

216906R91

THERMOSTAT

160 deg

1шт.

12

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

short cylinder head

8шт.

70128R1

PLUG,Cup, 1 5/8"

1-5/8 expansion, in cylinder head

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 sq-hd pipe, in cylinder head

1шт.
