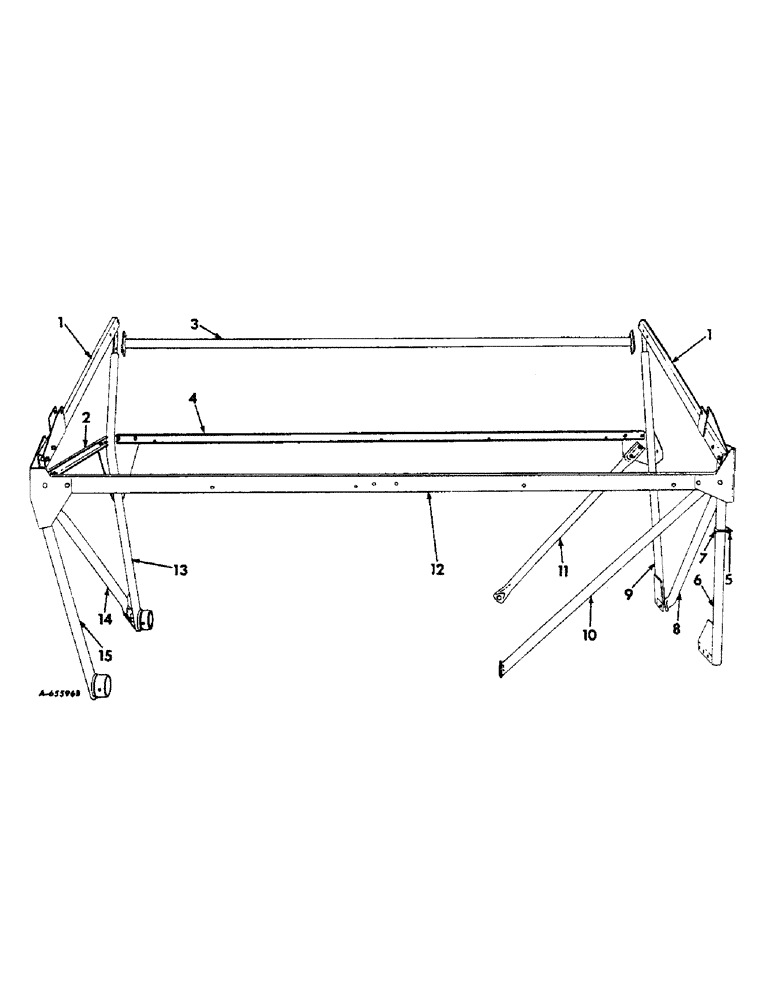

Запчасти Case IH 414 (165) - BASKET SUPPORTS (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
664940R91
SUPPORT, basket oblique
2шт.
BOLT W/NUT, 1/2 x 2 mach
4шт.
WASHER, 1/2 lock
4шт.
2
661028R1
SUPPORT, basket rear center
1шт.
BOLT W/NUT, 1/2 x 1 mach
4шт.
WASHER, 1/2 lock
4шт.
3
665275R91
SUPPORT, basket horizontal
1шт.
BOLT W/NUT, 1/2 x 2 mach
4шт.
WASHER, 1/2 lock
4шт.
4
661037R2
TIE, left basket support
1шт.
BOLT W/NUT, 1/2 x 1 mach
4шт.
WASHER, 1/2 lock
4шт.
5
661635R1
CLIP, fan support U-bolt
2шт.
6
665825R91
SUPPORT, right front basket, welded assy
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
2шт.
WASHER, 1/2 lock
2шт.
7
661102R1
BRACKET
U-BOLT, fan, Serial Range: support-frame
2шт.
NUT, 3/8
4шт.
WASHER, 3/8 lock
4шт.
8
665839R1
BRACE, basket support front
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
4шт.
WASHER, 1/2 lock
4шт.
9
664916R91
SUPPORT, left front basket, welded assy
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
1шт.
WASHER, 1/2 lock
1шт.
10
665840R91
BRACE, right basket support, welded assy
1шт.
BOLT, 1/2 x 3/4 mach
2шт.
WASHER, 1/2 lock
2шт.
11
661038R1
BRACE, left basket support
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
2шт.
BOLT W/NUT, 3/4 x 1-3/4 mach
1шт.
WASHER, 1/2 lock
2шт.
WASHER, 3/4 lock
1шт.
12
664445R2
TIE, right basket support
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
4шт.
WASHER, 1/2 lock
4шт.
13
665829R91
SUPPORT, left rear basket, welded assy
1шт.
BOLT W/NUT, 1/2 x 5-1/4 mach
1шт.
WASHER, 1/2 lock
1шт.
14
665838R1
BRACE, basket support rear
1шт.
BOLT W/NUT, 1/2 x 1-1/4 mach
1шт.
BOLT W/NUT, 1/2 x 1-1/2 mach
1шт.
WASHER, 1/2 lock
2шт.
15
665834R92
SUPPORT, right rear basket, welded assy
1шт.
BOLT W/NUT, 1/2 x 5-1/4 mach
1шт.
WASHER, 1/2 lock
1шт.
Выбрано товаров: 46
