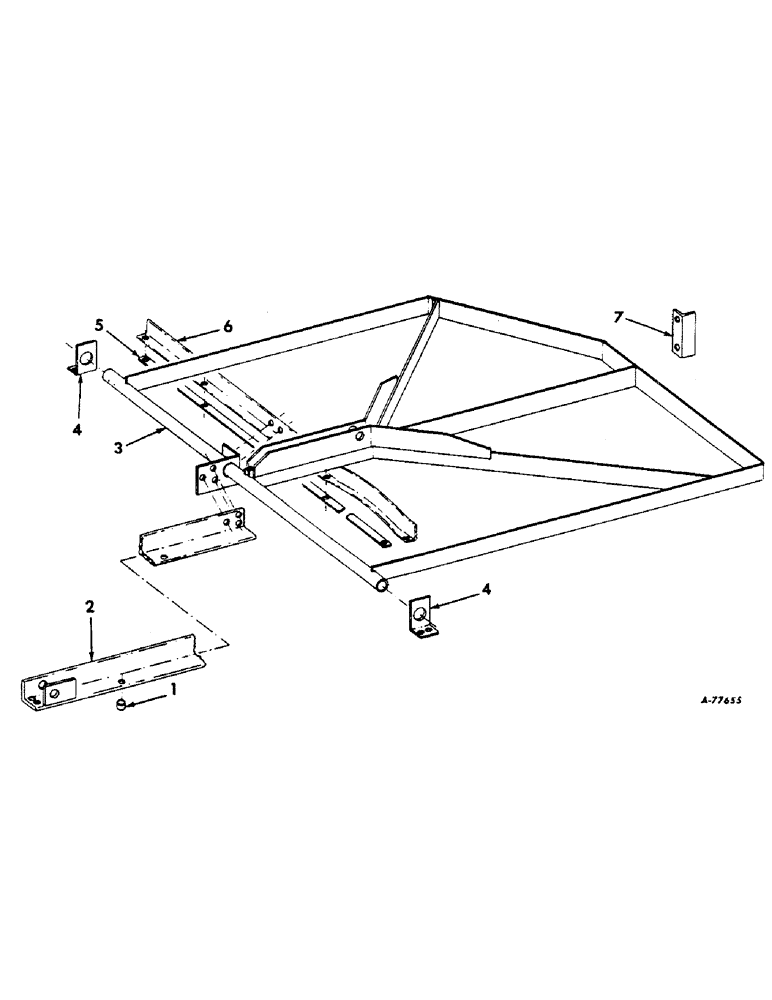

Запчасти Case IH 414 (097) - BASKET DISTRIBUTOR ATTACHMENT, VANE AND MOUNTING PARTS (80) - CROP STORAGE/UNLOADING

1

K11064

SPACER,3/8" Pipe x 1 1/4"

cylinder

5шт.

2

669420R91

ANGLE ASSY, cylinder

1шт.

5/16 X 2-1/2" MACH BOLT W/NUT

3шт.

3/8 X 2-1/2" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

3шт.

3/8" LOCK WASHER

2шт.

3

669404R91

VANE ASSY, packer (For pickers equipped with basket extension attachment)

1шт.

3

669415R91

VANE ASSY, packer (For pickers equipped with standard basket)

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

5шт.

1/4 X 2-3/4" COTTER PIN

2шт.

1/2" LOCK WASHER

5шт.

4

669426R1

BEARING, vane

2шт.

3/8 X 1-1/4" MACH BOLT W/NUT

4шт.

3/8" LOCK WASHER

4шт.

13/32 X 3/4" X 16 GA WASHER

6шт.

5

669434R1

STRAP, basket bottom mesh

1шт.

6

669427R1

ANGLE, basket bottom

1шт.

3/8 X 1" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

7

669559R1

ANGLE, basket support rear reinforcement

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

1шт.

1/2 X 2-1/4" MACH BOLT W/NUT

1шт.

1/2" LOCK WASHER

2шт.
