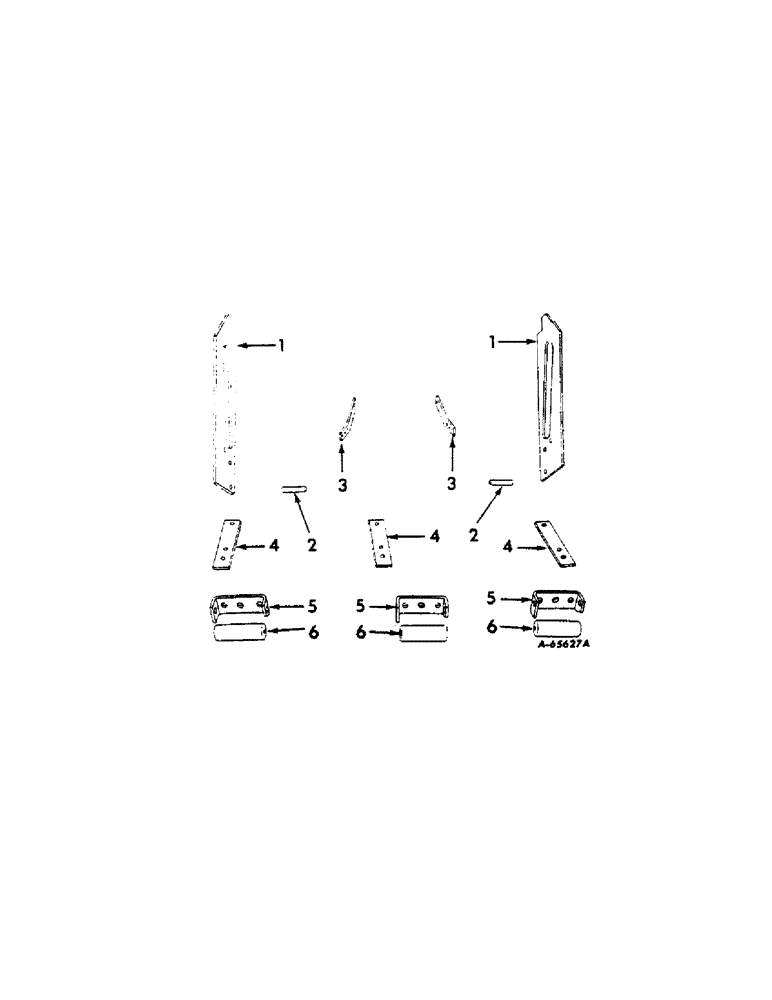

Запчасти Case IH 414 (081) - BASKET HIGH LIFT ATTACHMENT, BASKET PIVOT BEARING PLATES, SLIDE RAILS AND ROLLERS (80) - CROP STORAGE/UNLOADING

BASKET HIGH LIFT ATTACHMENT (When ordered) (664441R94) (Includes 665273R91 hydraulic cylinder)

1шт.

1

664444R2

PLATE, basket pivot bearing

2шт.

2

665274R1

ROLLER, basket stop

2шт.

3

664430R1

STRAP, basket cover lever

2шт.

1/2 X 1-1/2" MACH BOLT

2шт.

1/2" JAM NUT

4шт.

4

666209R1

RAIL, basket slide

3шт.

5/16 X 1" PLOW BOLT W/NUT

4шт.

5/16 X 1-1/4" PLOW BOLT W/NUT

2шт.

5/16" LOCK WASHER

6шт.

5

664952R2

BRACKET, roller

3шт.

1/2 X 1-1/2" MACH BOLT W/NUT

2шт.

1/2 X 1-3/4" MACH BOLT W/NUT

4шт.

1/2" LOCK WASHER

6шт.

6

664951R1

ROLLER, basket guide

3шт.

3/16 X 1" COTTER PIN

3шт.

CP10039

HEADED PIN,1/2" x 6 1/2"

1/2 X 6-1/2" ROLLER PIN

3шт.
