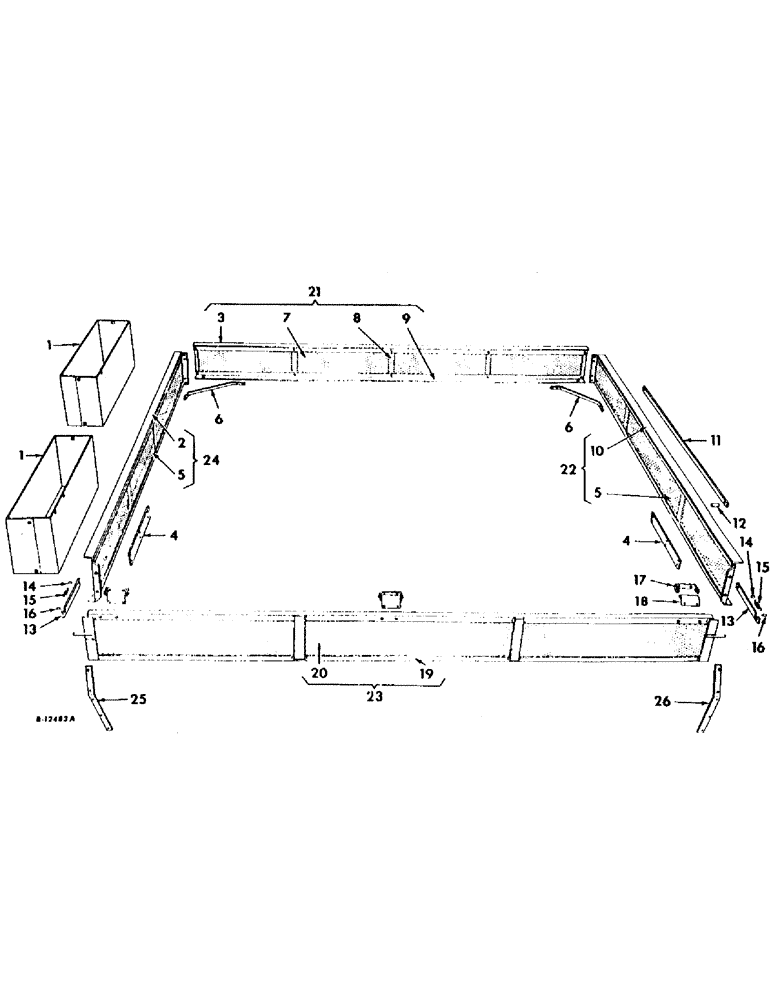

Запчасти Case IH 414 (079) - BASKET EXTENSION ATTACHMENT (80) - CROP STORAGE/UNLOADING

BASKET EXTENSION ATTACHMENT (When ordered) (664397R92)

1шт.

1

664426R11

EXTENSION, distributor (Welded assembly)

2шт.

5/16 X 3/4" CRG BOLT W/NUTS

20шт.

5/16" LOCK WASHER

20шт.

11-32 X 3/4" X 16 GA WASHER

4шт.

2

664418R92

FRAME, front basket extension ends (Welded assembly)

1шт.

3

661066R1

ANGLE, right basket side

1шт.

5/16 X 3/4" MACH BOLT W/NUT

4шт.

5/16 X 1" MACH BOLT W/NUT

16шт.

3/8 X 1" MACH BOLT W/NUT

2шт.

3/8 X 1-1/4" MACH BOLT W/NUT

2шт.

1/2 X 1" MACH BOLT W/NUT

9шт.

3/16 X 5/8" B-HD RIVET

4шт.

5/16" LOCK WASHER

20шт.

3/8" LOCK WASHER

4шт.

1/2" LOCK WASHER

9шт.

4

664427R1

STRAP, reinforcing

2шт.

5/16 X 1" MACH BOLT W/NUT

12шт.

5/16" LOCK WASHER

12шт.

5

664419R91

MESH, basket extension end (Welded assembly)

2шт.

1/2 X 1" MACH BOLT W/NUT

11шт.

3/16 X 5/8" B-HD RIVET

28шт.

3/16 X 3/4" B-HD RIVET

8шт.

1/2" LOCK WASHER

11шт.

6

661086R1

BRACE, basket corner

2шт.

3/8 X 1" MACH BOLT W/NUT

8шт.

3/8" LOCK WASHER

8шт.

7

664422R91

MESH, right basket extension side (Welded assembly)

1шт.

8

664415R1

CHANNEL, basket extension

9шт.

5/16 X 1" MACH BOLT W/NUT

8шт.

5/16" LOCK WASHER

8шт.

9

664414R1

ANGLE, lower right side

1шт.

10

664409R92

FRAME, rear basket extension end (Welded assembly)

1шт.

11

664417R1

BRACE, long basket cover lever

1шт.

3/8 X 1-1/2" MACH BOLT W/NUT

1шт.

1/2 X 3-1/2" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

1/2" LOCK WASHER

1шт.

12

517920R1

SPACER,1/2" Pipe x 2"

basket lever arm brace

1шт.

13

664400R1

ARM, extension door lock

2шт.

5/16 X 1-1/4" MACH BOLT W/NUT

2шт.

3/16 X 1" COTTER PIN

2шт.

5/16" LOCK WASHER

2шт.

9/16 X 1-3/8" X 12 GA WASHER

2шт.

11/32 X 7/8" X 16 GA WASHER

2шт.

14

86224H

SPACER,1/4" Pipe x 3/8"

Door lock arm pivot 1/4" Pipe x 3/8"

2шт.

15

127361H

SPRING

basket extension door lock arm return

2шт.

16

664416R1

SPACER, door lock arm stop

2шт.

1/4 X 1-1/2" MACH BOLT W/NUT

2шт.

1/4" LOCK WASHER

2шт.

9/32 X 5/8" X 16 GA WASHER

2шт.

17

662433R1

HINGE, basket cover

3шт.

3/8 X 1-1/4" MACH BOLT W/NUT

6шт.

3/16 X 1" COTTER PIN

3шт.

590275R1

HEADED PIN,7/16" x 4 3/4"

7/16 X 4-3/4" STD-HD PIN

3шт.

3/8" LOCK WASHER

6шт.

18

664398R91

HINGE, lower basket extension door (Welded assembly)

1шт.

3/8 X 1-1/4" MACH BOLT W/NUT

6шт.

3/8" LOCK WASHER

6шт.

19

664404R91

FRAME, basket extension (Welded assembly)

1шт.

20

664424R91

MESH, basket extension door (Welded assembly)

1шт.

3/16 X 5/8" B-HD RIVET

20шт.

N32146

13/64 X 7/8" X 18 GA WASHER

2шт.

21

664961R91

SIDE, right basket extension (Riveted assembly)

1шт.

22

664963R91

END, basket extension rear (Riveted assembly)

1шт.

23

664964R91

DOOR, basket extension (Riveted assembly)

1шт.

24

664962R91

END, front basket extension (Riveted assembly)

1шт.

25

665269R1

SUPPORT, front basket extension

1шт.

5/16 X 1" MACH BOLT W/NUT

3шт.

5/16" NUT

2шт.

5/16 X 1-1/4" FL-HD SCREW

2шт.

5/16" WASHER

5шт.

26

665270R1

SUPPORT, rear basket extension

1шт.

5/16 X 1" MACH BOLT W/NUT

3шт.

5/16" NUT

2шт.

5/16 C 1-1/4" FL-HD SCREW

2шт.

5/16" LOCK WASHER

5шт.
