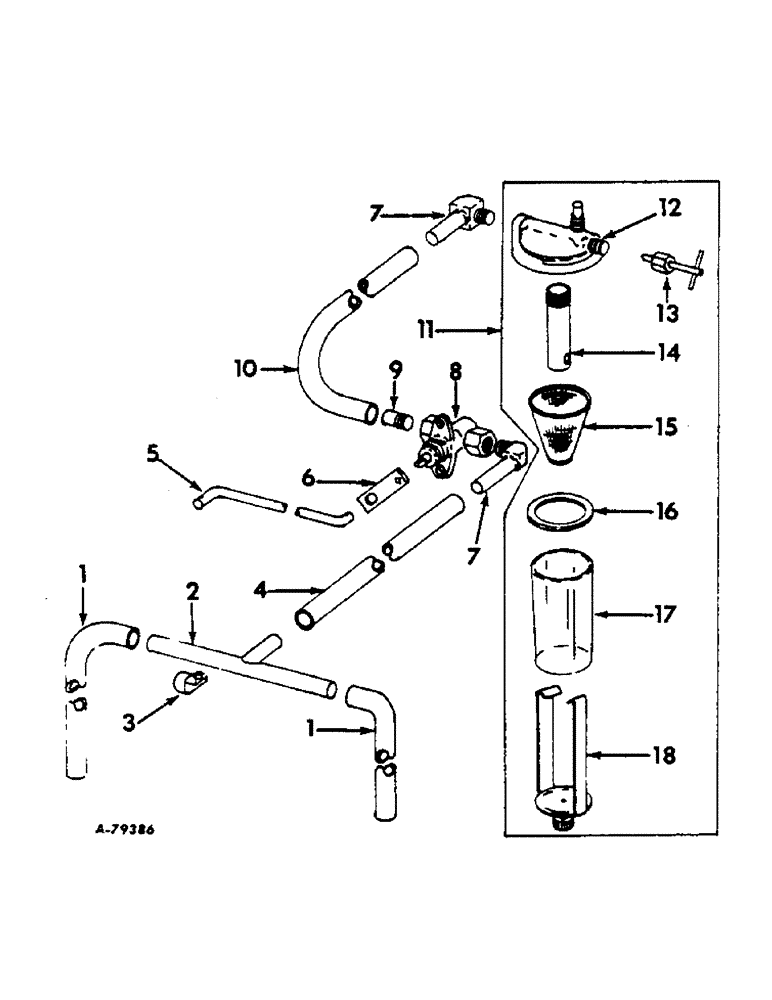

Запчасти Case IH 414 (073) - WATER FILTER AND LINES, 4141120G UP, 4202060G UP (80) - CROP STORAGE/UNLOADING

1

HOSE, tee to drum water (Use 23 inches of 9/32" hose from 50-foot roll marked, 665180R1)

2шт.

2

665245R91

TEE

water line (Welded assembly)

1шт.

3

27385D

CLIP, water line tee

1шт.

4

HOSE, valve to tee (Use 27 inches of 1/2" hose from 50-foot roll marked, 665181R1)

1шт.

5

665985R1

ROD, shutoff valve

1шт.

3/32 X 1/2" COTTER PIN

2шт.

9/32 X 5/8" X 16 GA WASHER

2шт.

6

665984R1

LEVER, water shutoff valve

1шт.

8/32 X 1/2" RD-HD SCREW

1шт.

22910V

21/64 X 5/8" X 18 GA WASHER

1шт.

13/64 X 1/2" X 16 GA WASHER

1шт.

7

667482R1

ELBOW

water hose connector

2шт.

8

658899R92

VALVE, water shutoff

1шт.

1/4 X 3/4" MACH BOLT W/NUT

2шт.

1/4" LOCK WASHER

2шт.

9

665253R1

CONNECTOR, water hose

1шт.

10

HOSE, filter to valve (Use 50 inches of 1/2" hose from 50-foot roll marked, 665181R1)

1шт.

11

370074R91

FILTER

ASSEMBLY, water

1шт.

12

(Not serviced separately) (Order 370074R91)

1шт.

13

370519R91

STEM

ASSEMBLY

1шт.

14

54762D

TUBE

center

1шт.

15

370784R91

FILTER SCREEN

SCREEN ASSEMBLY

1шт.

16

370520R1

GASKET

1шт.

17

370783R1

BOWL

glass

1шт.

18

370785R91

CLAMP

BAIL ASSEMBLY

1шт.
