Запчасти Case IH 414 (063) - BASKET COVER GRATES (80) - CROP STORAGE/UNLOADING

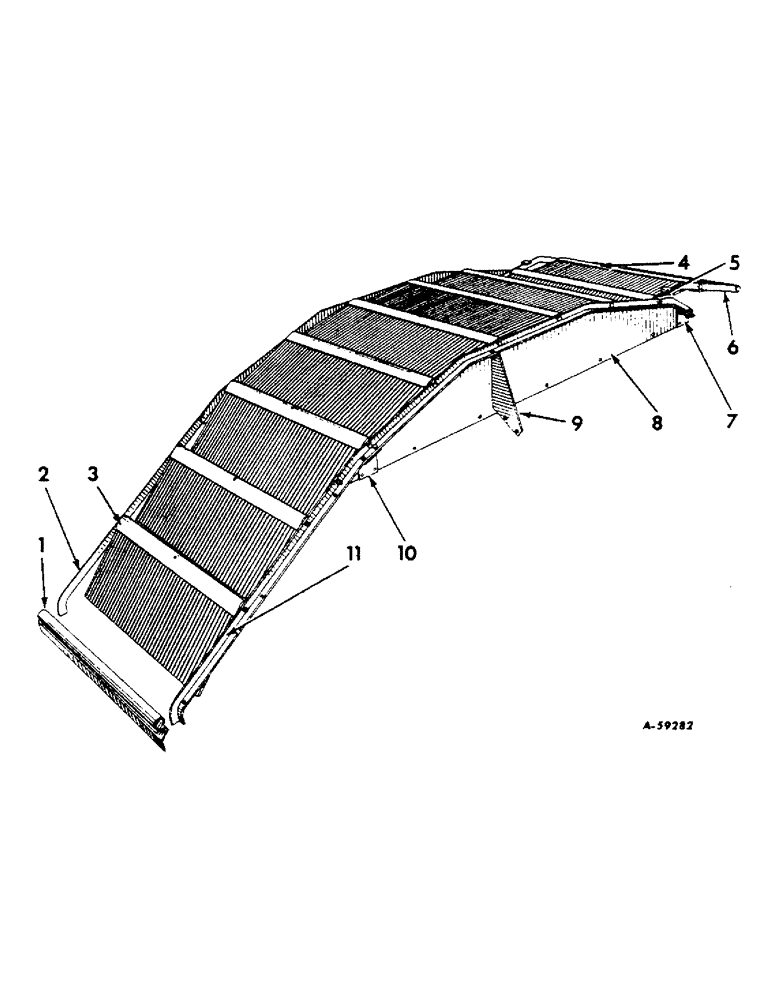

Схема запчастей Case IH 414 - (063) - BASKET COVER GRATES (80) - CROP STORAGE/UNLOADING
6
10
1
11
9
4
3
7
8
2
5

Артикул

Название

Примечание

Количество

1

664928R1

SHEET, rear basket cover

1шт.

3/8 X 3/4" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

2

664728R1

ANGLE, left basket tunnel

1шт.

3/8 X 3/4" MACH BOLT W/NUT

6шт.

3/8" LOCK WASHER

6шт.

3

11677R

GRATE

basket cover (Welded assembly)

7шт.

3/8 X 3/4" MACH BOLT W/NUT

14шт.

3/8" LOCK WASHER

14шт.

4

664736R91

GRATE, basket door (Welded assembly)

3шт.

3/8 X 3/4" MACH BOLT W/NUT

4шт.

3/8" LOCK WASHER

4шт.

5

665065R1

BUSHING, basket cover door pivot

2шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

2шт.

6

664740R1

SIDE, basket door

2шт.

7

664730R1

PLATE, left front tunnel angle attaching

1шт.

7

664731R1

PLATE, right front tunnel angle attaching

1шт.

8

664727R1

SIDE, tunnel

2шт.

5/16 X 3/4" MACH BOLT W/NUT

10шт.

3/8 X 3/4" MACH BOLT W/NUT

8шт.

3/8 X 1-1/2" MACH BOLT W/NUT

2шт.

3/8" NUT

2шт.

5/16" LOCK WASHER

10шт.

3/8" LOCK WASHER

10шт.

9

664717R1

BRACE, left upper cover

1шт.

9

664718R1

BRACE, right upper cover

1шт.

3/8 X 3/4" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

10

664923R1

PLATE, left rear tunnel angle attaching

1шт.

10

664924R1

PLATE, right rear tunnel angle attaching

1шт.

11

664729R1

ANGLE, right basket tunnel

1шт.

3/8 X 3/4" MACH BOLT W/NUT

6шт.

3/8" LOCK WASHER

6шт.

Выбрано товаров: 34
