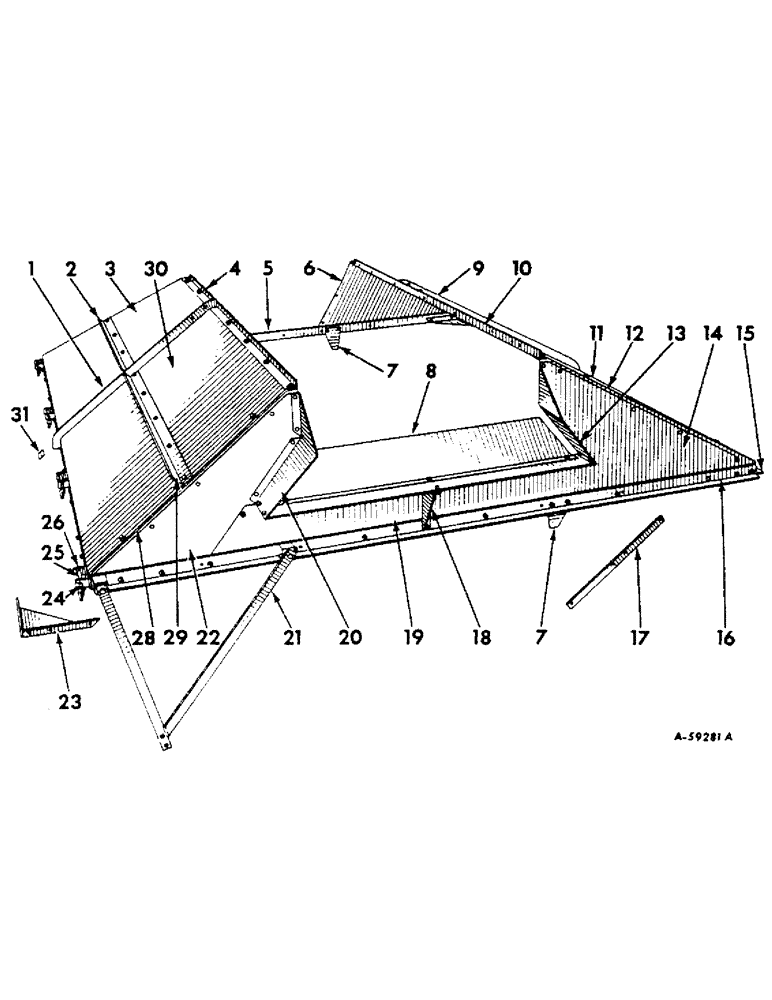

Запчасти Case IH 414 (061) - BASKET COVER (80) - CROP STORAGE/UNLOADING

1

664724R1

BRACE, right center basket cover

1шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

2

665064R1

ANGLE, rear basket cover step

1шт.

3/8 X 1/2" MACH BOLT W/NUT

3шт.

3/8" LOCK WASHER

3шт.

510579R1

WASHER

13/32 X 1-1/4" 16 GA WASHER

3шт.

3

664713R1

COVER, right rear basket

1шт.

5/16 X 3/4" MACH BOLT W/NUT

12шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

5/16" LOCK WASHER

12шт.

3/8" LOCK WASHER

1шт.

11/32 X 3/4" X 16 GA WASHER

12шт.

13/32 X 3/4" X 16 GA WASHER

1шт.

4

664716R1

ANGLE, right basket cover

1шт.

5

660854R92

ANGLE, rear basket cover (Welded assembly)

1шт.

6

664712R1

COVER, left rear basket top

1шт.

5/16 X 3/4" MACH BOLT W/NUT

12шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

5/16" LOCK WASHER

12шт.

3/8" LOCK WASHER

1шт.

11/32 X 3/4" X 16 GA WASHER

12шт.

13/32 X 3/4" X 16 GA WASHER

1шт.

7

10821RA

GUIDE, basket cover centering

2шт.

3/8 X 3/4" MACH BOLT W/NUT

3шт.

3/8" LOCK WASHER

3шт.

13/32 X 3/4" X 16 GA WASHER

2шт.

8

664733R1

BAFFLE, basket inlet

1шт.

5/16 X 1/2" MACH BOLT W/NUT

4шт.

5/16 X 3/4" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

6шт.

9

664725R1

BRACE, left center basket cover

1шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

10

664715R1

ANGLE, left basket cover

1шт.

11

664710R1

SIDE, left basket top cover

1шт.

5/16 X 3/4" MACH BOLT W/NUT

6шт.

5/16" LOCK WASHER

6шт.

11/32 X 3/4" X 16 GA WASHER

6шт.

12

664720R1

ANGLE, left front basket top

1шт.

5/16 X 3/4" MACH BOLT W/NUT

7шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8 X 1" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

7шт.

3/8" LOCK WASHER

3шт.

11/32 X 3/4" X 16 GA WASHER

3шт.

13/32 X 3/4" X 16 GA WASHER

2шт.

13

664734R1

SIDE, left basket inlet

1шт.

14

664723R1

SHEET, left front basket cover

1шт.

5/16 X 1/2" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

15

660857R1

ANGLE, basket cover side

2шт.

16

660853R92

ANGLE, basket cover front (Welded assembly)

1шт.

17

664719R1

ANGLE, basket cover brace

2шт.

3/8 X 3/4" MACH BOLT W/NUT

5шт.

3/8 X 1" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

6шт.

18

664925R1

GUSSET, basket front center

1шт.

19

664726R1

COVER, basket front center

1шт.

5/16 X 1/2" MACH BOLT W/NUT

6шт.

5/16 X 3/4" MACH BOLT W/NUT

1шт.

5/16" LOCK WASHER

7шт.

20

664735R1

SIDE, right inlet basket

1шт.

21

664401R91

LEVER, basket cover (Welded assembly)

1шт.

1/2 X 1" MACH BOLT W/NUT

4шт.

1/2 X 1-3/4" MACH BOLT W/NUT

2шт.

1/2" LOCK WASHER

6шт.

76730H

WASHER

17/32 X 1-1/2" X 11 GA WASHER

2шт.

22

664722R1

SHEET, right front basket cover

1шт.

5/16 X 1/2" MACH BOLT W/NUT

3шт.

5/16" LOCK WASHER

3шт.

23

660858R1

BRACE, basket cover corner

4шт.

3/8 X 3/4" MACH BOLT W/NUT

17шт.

3/8" LOCK WASHER

17шт.

13/32 X 3/4" X 16 GA WASHER

12шт.

24

590275R1

HEADED PIN,7/16" x 4 3/4"

PIN, 7/16 x 4-3/4" std-hd

4шт.

3/16 X 1" COTTER PIN

4шт.

25

662429R91

HINGE, basket cover (Welded assembly)

4шт.

3/8 x 3/4" MACH BOLT W/NUT

10шт.

3/8 X 1" MACH BOLT W/NUT

6шт.

3/8" LOCK WASHER

16шт.

13/32 X 3/4" X 16 GA WASHER

2шт.

26

662433R1

HINGE, basket cover

4шт.

28

664721R1

ANGLE, right front basket top

1шт.

5/16 X 3/4" MACH BOLT W/NUT

6шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8 X 1" MACH BOLT W/NUT

1шт.

5/16" LOCK WASHER

6шт.

3/8" LOCK WASHER

2шт.

11/32 X 3/4" X 16 GA WASHER

3шт.

29

665063R1

ANGLE, front basket cover step

1шт.

3/8 X 1/2" MACH BOLT W/NUT

3шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

4шт.

510579R1

WASHER

13/32 X 1-1/4" X 16 GA WASHER

4шт.

30

661714R1

COVER, right basket top

1шт.

5/16 X 3/4" MACH BOLT W/NUT

6шт.

3/8 X 3/4" MACH BOLT

1шт.

5/16" LOCK WASHER

6шт.

3/8" LOCK WASHER

1шт.

11/32 X 3/4" X 16 GA WASHER

6шт.

13/32 X 3/4" X 16 GA WASHER

1шт.

31

665062R1

TIE, basket cover step angle

1шт.
