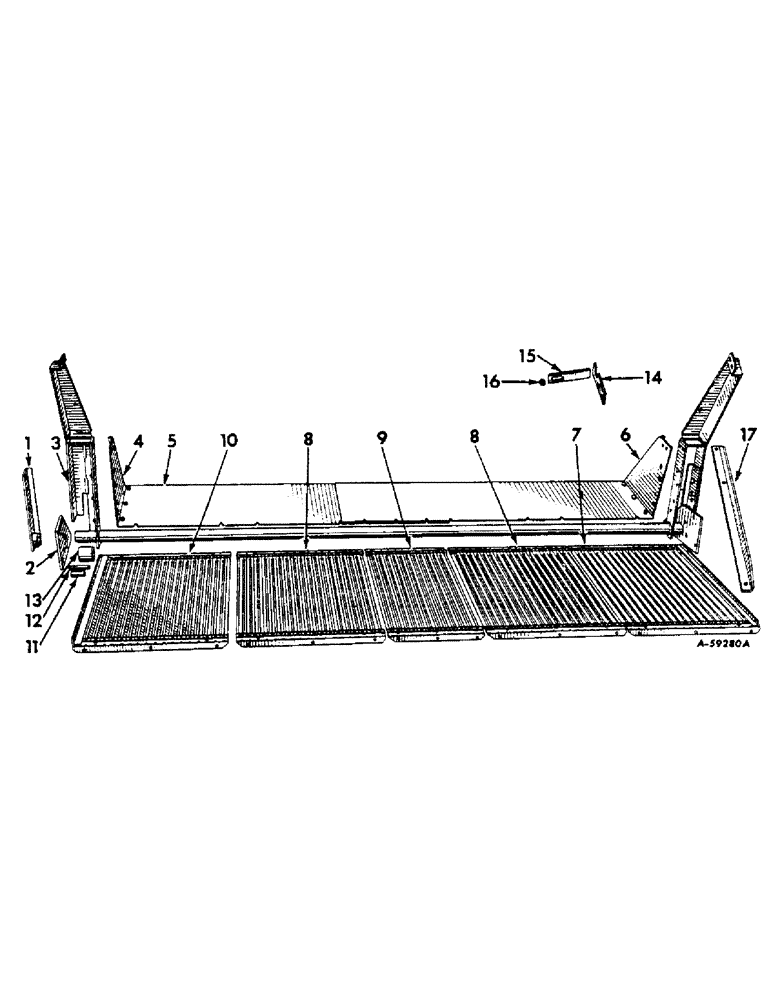

Запчасти Case IH 414 (060) - BASKET PIVOT SHAFT AND BASKET SECTIONS (80) - CROP STORAGE/UNLOADING

1

664459R91

PLATE, rear basket pivot shaft arm (Welded assembly)

1шт.

1

664458R91

PLATE, front basket pivot shaft arm (Welded assembly)

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

4шт.

1/2 X 3-3/4" MACH BOLT W/NUT

1шт.

1/2" LOCK WASHER

5шт.

2

664921R1

PLATE, basket pivot bearing

2шт.

3

664449R92

SHAFT, basket pivot (Welded assembly)

1шт.

5/16 X 3" MACH BOLT W/NUT

10шт.

3/8 X 1" MACH BOLT W/NUT

8шт.

5/8 X 5-3/4" MACH BOLT W/NUT

2шт.

1/2 X 1-1/4" MACH BOLT W/NUT

8шт.

3/4 X 5-3/4" MACH BOLT W/NUT

2шт.

1/2 X 1-1/4" PLOW BOLT W/NUT

4шт.

5/16" LOCK WASHER

10шт.

3/8" LOCK WASHER

8шт.

5/8" LOCK WASHER

2шт.

1/2" LOCK WASHER

12шт.

3/4" LOCK WASHER

2шт.

11/32 X 3/4" X 16 GA WASHER

10шт.

4

665083R1

SIDE, rear basket extension

1шт.

5/16 X 3/4" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

5

661137R91

EXTENSION, basket (Welded assembly)

1шт.

5/16 X 1/2" MACH BOLT W/NUT

6шт.

5/16" LOCK WASHER

6шт.

11/32 X 3/4" X 16 GA WASHER

6шт.

6

665082R1

SIDE, front basket extension

1шт.

5/16 X 3/4" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

7

659439R91

SECTION, basket sloping side end (Riveted assembly)

1шт.

5/16 X 3/4" CRG BOLT W/NUT

4шт.

5/16 X 3/4" MACH BOLT W/NUT

3шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

112421

.170 X 11/32" FL-HD RIVET

38шт.

5/16" LOCK WASHER

7шт.

3/8" LOCK WASHER

1шт.

8

659441R91

SECTION, center basket sloping side (Riveted assembly)

2шт.

5/16 X 3/4'" MACH BOLT W/NUT

6шт.

112421

.170 X 11/32" FL-HD RIVET

72шт.

5/16" LOCK WASHER

6шт.

9

661427R91

SECTION, center narrow basket sloping side (Riveted assembly)

1шт.

5/16 X 3/4" MACH BOLT W/NUT

2шт.

5/16 X 1" MACH BOLT W/NUT

1шт.

112421

.170 X 11/32" FL-HD RIVET

24шт.

5/16" LOCK WASHER

3шт.

10

659440R91

SECTION, rear basket sloping side (Riveted assembly)

1шт.

5/16 X 3/4" CRG BOLT W/NUT

4шт.

5/16 X 3/4" MACH BOLT W/NUT

3шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

112421

.170 X 11/32" FL-HD RIVET

38шт.

5/16" LOCK WASHER

7шт.

3/8" LOCK WASHER

1шт.

11

664455R1

SPACER, basket cylinder push rod

2шт.

557270R1

WASHER

29/32 X 1-1/4" X 11 GA WASHER

4шт.

12

665220R1

SPACER,3/4" X-Strng Pipe x 3 7/8"

BUSHING, BASKET STOP

2шт.

13

664446R1

BEARING, basket pivot

2шт.

14

665113R1

LATCH, basket

1шт.

15

665114R1

LATCH, safety

1шт.

16

PO11230

SPACER,3/8" Pipe x .406"

BUSHING, safety latch

1шт.

7/16 X 1-3/4" CAP SCREW W/NUT

1шт.

7/16" LOCK WASHER

1шт.

PO105341/2

15/32 X 1-1/2" X 11 GA WASHER

2шт.

17

665182R1

SUPPORT, basket sloping side

1шт.

5/16 X 1" MACH BOLT W/NUT

1шт.

5/16 X 3-1/4" MACH BOLT W/NUT

1шт.

5/16" LOCK WASHER

2шт.

11/32 X 3/4" X 16 GA WASHER

1шт.
