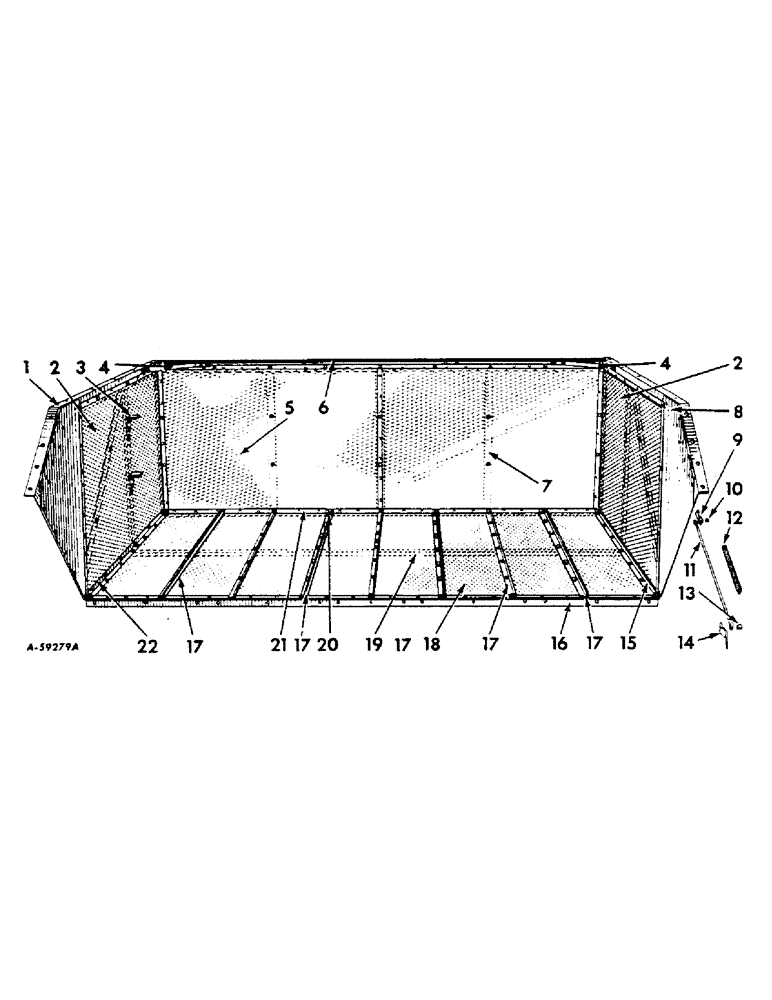

Запчасти Case IH 414 (059) - BASKET (80) - CROP STORAGE/UNLOADING

1

664890R91

FRAME, front basket end (Welded assembly)

1шт.

2

11628R

MESH, basket side (Welded assembly)

2шт.

5/16 X 3/4" MACH BOLT W/NUT

6шт.

5/16 X 1" MACH BOLT W/NUT

4шт.

3/8 X 1" MACH BOLT W/NUT

2шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 X 1/2" B-HD RIVET

22шт.

104068

3/16 X 5/8" B-HD RIVET But Hd, 3/16" x 5/8"

6шт.

5/16" LOCK WASHER

4шт.

3/8" LOCK WASHER

2шт.

11/32 X 3/4" X 16 GA WASHER

6шт.

N32146

13/64 X 7/8 X 18 GA WASHER

8шт.

3

664929R1

STEP, basket

2шт.

3/8 X 1" MACH BOLT W/NUT

4шт.

3/8" LOCK WASHER

4шт.

4

661086R1

BRACE, basket corner

2шт.

3/8 X 1" MACH BOLT W/NUT

8шт.

3/8" LOCK WASHER

8шт.

5

661068R91

MESH, basket side (Welded assembly)

2шт.

5/16 X 3/4" MACH BOLT W/NUT

26шт.

5/16 X 1" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

20шт.

11/32 X 3/4" X 16 GA WASHER

12шт.

6

661066R1

ANGLE, right basket side

1шт.

7

661067R1

CHANNEL, right basket side

3шт.

8

661092R91

FRAME, rear basket end (Welded assembly)

1шт.

9

661159R91

LINK, basket cover lift

2шт.

1/2" SQ NUT

2шт.

10

27046B

SPACER,1/2" Pipe x 9/16"

basket cover lever

2шт.

11

661161R1

ROD, basket cover lift

2шт.

1/2" NUT

2шт.

12

NOT USED

1шт.

13

S5680

SPACER, basket cover lift rod

2шт.

14

664529R1

STRAP, basket cover lift rod

2шт.

1/2 X 2-1/2" MACH BOLT W/NUT

4шт.

1/2 X 3-3/4" MACH BOLT W/NUT

2шт.

1/2" NUT

2шт.

1/2" LOCK WASHER

6шт.

15

661060R2

ANGLE, rear basket bottom end

1шт.

16

661133R2

ANGLE, left basket bottom

1шт.

17

665824R1

SUPPORT, short basket bottom mesh

7шт.

18

661063R91

MESH, basket bottom (Welded assembly)

2шт.

5/16 X 3/4" MACH BOLT W/NUT

45шт.

5/16 X 1" MACH BOLT W/NUT

27шт.

5/16" LOCK WASHER

72шт.

19

661062R2

SUPPORT, basket bottom mesh

1шт.

20

661059R1

STRAP, basket bottom mesh

7шт.

21

661134R1

ANGLE, right basket bottom

1шт.

22

661061R2

ANGLE, front basket bottom end

1шт.
