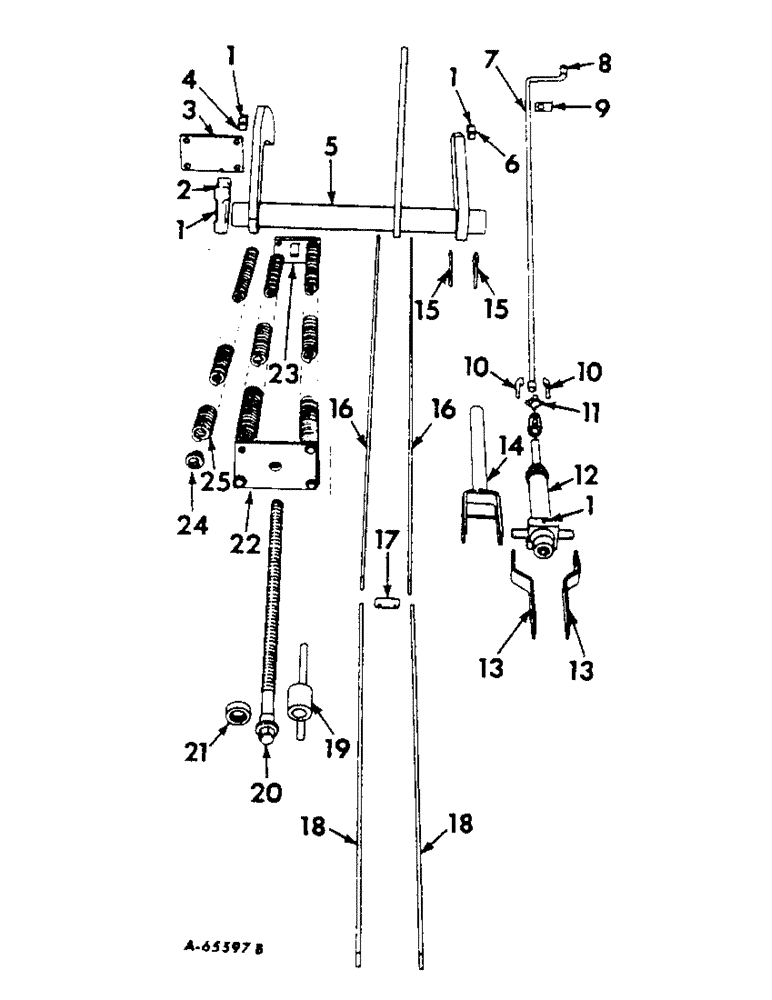

Запчасти Case IH 414 (058) - BALANCE SPRINGS AND LIFTING SHAFTS (80) - CROP STORAGE/UNLOADING

1

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4" self tapping lubrication

8шт.

2

665912R1

BEARING, lifting shaft

2шт.

5/8 X 2-3/4" MACH BOLT W/NUT

6шт.

5/8" LOCK WASHER

6шт.

3

665948R91

ANCHOR, drum drive cylinder (Welded assembly)

1шт.

1/2 X 1-1/4" MACH BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

4

665911R1

CAP, lifting arm

2шт.

1/2 X 1-3/4" MACH BOLT

4шт.

1/2" LOCK WASHER

4шт.

5

665905R91

SHAFT, left lifting (Welded assembly)

1шт.

5

665906R91

SHAFT, right lifting (Welded assembly)

1шт.

6

11880RA

CAP, lifting arm

2шт.

1/2 X 1-3/4" MACH BOLT

4шт.

1/2" LOCK WASHER

4шт.

7

665932R1

ROD, drum adjusting

2шт.

8

662579R1

GRIP

drum adjusting rod

2шт.

9

665933R1

CLIP, drum adjusting rod

2шт.

10

PO722

PIVOT, drum adjusting rod

8шт.

11

PO723

SPIDER ASSY.

CROSS, drum adjusting rod

2шт.

5/16 X 1-3/4" MACH BOLT W/NUT

4шт.

5/16" LOCK WASHER

4шт.

12

665925R91

HOUSING, drum adjusting screw (Welded assembly)

2шт.

3/16 X 1-1/4" COTTER PIN

4шт.

13

665923R1

ARM, cylinder pivot

4шт.

3/16 X 1" COTTER PIN

2шт.

Q837

HEADED PIN,15.88mm OD x 38.1mm L

5/8 X 1-1/2" DLD HEADED PIN

2шт.

14

665920R91

TUBE, drum lift (Welded assembly) 19" Length

2шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

4шт.

15

665919R1

PLATE, hydraulic cylinder anchor 414CH501E thru CH812E, 420CH501E thru CH1371E

4шт.

1/2 X 2" MACH BOLT W/NUT

4шт.

12" LOCK WASHER

4шт.

16

665918R1

LINK, balance link

4шт.

1/4 X 1-1/4" COTTER PIN

2шт.

PO20851

3/4 X 1-11/16 DLD HEADED PIN

2шт.

17

661221R1

PIN, balance spring link

2шт.

3/16 X 1" COTTER PIN

4шт.

18

665924R1

LINK, hydraulic cylinder

4шт.

19

665913R91

BRACKET, balance spring (Welded assembly)

2шт.

3/4 X 1-3/4" MACH BOLT W/NUT

4шт.

3/4" LOCK WASHER

4шт.

20

11977R

SCREW, balance spring adjusting

2шт.

21

662557R91

BEARING, balance spring adjusting

2шт.

22

665915R91

PLATE, balance spring rear (Welded assembly)

2шт.

1/2 X 1-1/4" MACH BOLT

8шт.

1/2" LOCK WASHER

8шт.

23

665917R1

PLATE, balance spring front

2шт.

1/2 X 1-1/4" MACH BOLT

8шт.

1/2" LOCK WASHER

8шт.

24

M1425

PLUG

balance spring

16шт.

25

M80437

SPRING, balance

8шт.
