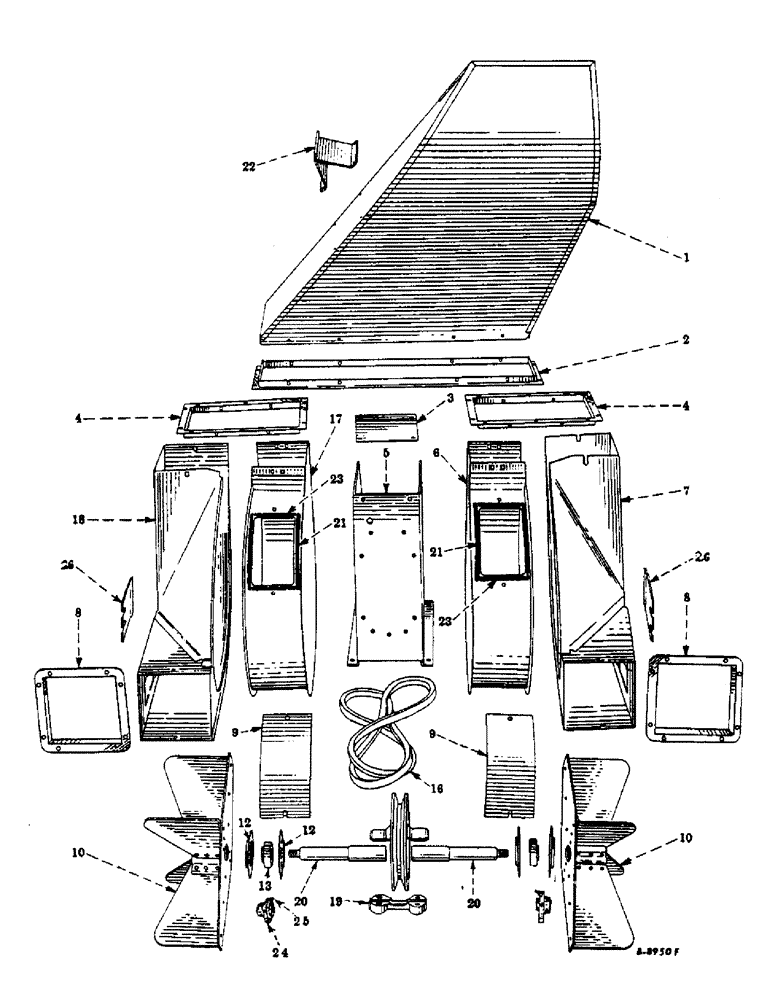

Запчасти Case IH 414 (161) - DUAL FANS (74) - CLEANING

1

664741R91

DISTRIBUTOR, left, welded assy

1шт.

1

664742R91

DISTRIBUTOR, right, welded assy, 416-501H thru 1550

1шт.

202413C1

422-501H thru 3076

1шт.

1

202416C1

DISTRIBUTOR ASSY, left

1шт.

1

202414C1

DISTRIBUTOR ASSY, right, 416-1551 and up, 422-3077 and up

1шт.

BOLT W/NUT, 5/16 x 3/4 crg

10шт.

WASHER, 5/16 lock

10шт.

2

661019R91

FLANGE, distributor, welded assy, 416-501H thru 1550, 422-501H thru 3076

2шт.

BOLT W/NUT, 3/8 x 3/4 mach

39шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

40шт.

3

661018R1

SHEET, distributor filler, 416-501H thru 1550, 422-501H thru 3076

2шт.

3

202423C1

SHEET, distributor filler, 416-1551 and up, 422-3077 and up

1шт.

4

657874R91

FLANGE, fan housing outlet, welded assy, 416-501H thru 1550, 422-501H thru 3076

4шт.

BOLT W/NUT, 5/16 x 3/4 crg

24шт.

WASHER, 5/16 lock

24шт.

5

661007R21

BRACKET, right fan , welded assy

2шт.

BOLT W/NUT, 1/25 x 1 mach

8шт.

WASHER, 1/2 lock

8шт.

6

657888R91

HOUSING, left fan, welded assy, 416-501H thru 1550, 422-501H thru 3076

2шт.

6

202425C1

HOUSING ASSY FAN LEFT, 416-1551 and up, 422-3077 and up

2шт.

BOLT W/NUT, 3/8 x 3/4 crg

12шт.

BOLT W/NUT, 3/8 x 1 crg

4шт.

657803R1

NUT, 5/16 wing

4шт.

WASHER, 3/8 lock

16шт.

7

657877R92

COVER, left fan housing, welded assy, 416-501H thru 1550, 422-501H thru 3076

2шт.

7

672610R91

COVER ASSY, fan housing left, 416-1551 and up, 422-3077 and up

2шт.

BOLT W/NUT, 5/16 x 3/4 crg

2шт.

BOLT W/NUT, 5/16 x 1/2 mach

22шт.

WASHER, 5/16 lock

24шт.

8

655007R1

FLANGE, fan housing inlet, 416-501H thru 1550, 422-501H thru 3076

16шт.

BOLT W/NUT, 5/16 x 3/4 crg

16шт.

WASHER, 5/16 lock

16шт.

9

11588RA

DOOR, fan housing, 416-501H thru 1550, 422-501H thru 3076

4шт.

10

656522R1

FAN, aluminum

4шт.

10

664988R91

FAN

ROTOR, fan, riveted assy

4шт.

432786

KEY

1/4 x 2-3/4 Woodruff

4шт.

11

NOT USED IN THIS APPLICATION

1шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

SUPPORT, fan shaft bearing, 416CH501H thru 779H, 422CH501H thru 1192H

8шт.

BOLT W/NUT, 3/8 x 1 crg

12шт.

WASHER, 3/8 lock

12шт.

13

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

fan shaft, 416CH501H thru 779H

4шт.

14

NOT USED IN THIS APPLICATION

1шт.

15

NOT USED IN THIS APPLICATION

1шт.

16

666390R1

BELT

Fan drive

2шт.

17

657889R91

HOUSING, right fan, welded assy, 416-501H thru 1550, 422-501H thru 3076

2шт.

17

202426C1

HOUSING ASSY FAN RIGHT, 416-1551 and up, 422-3077 and up

2шт.

BOLT W/NUT, 3/8 x 3/4 crg

12шт.

BOLT W/NUT, 3/8 x 1 crg

4шт.

NUT, 5/16 wing

4шт.

WASHER, 3/8 lock

16шт.

18

657878R92

COVER, right fan housing, welded assy, 416-1551 and up, 422-3077 and up

2шт.

BOLT W/NUT, 5/16 x 3/4 crg

2шт.

BOLT W/NUT, 5/16 x 1/2 mach

22шт.

WASHER, 5/16 lock

24шт.

19

665843R11

PULLEY ASSY, fan drive

2шт.

114735

KEY, 3/16 x 1-1/8 Woodruff

4шт.

SCREW W/NUT, 1/2NF x 2-1/2 cap

8шт.

WASHER, 1/2 lock

8шт.

20

662517R1

SHAFT

fan

4шт.

NUT, 3/4NF sltd

4шт.

PIN, 5/32 x 1-1/4 cotter

4шт.

23471S

WASHER

25/32 x 1-1/2 x 7 ga

4шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

4шт.

21

665288R1

GASKET, fan housing door long, 416-501H thru 1550, 422-501H thru 3076

8шт.

22

665034R11

STEP, distributor, welded assy

1шт.

BOLT W/NUT, 5/16 x 1/2 crg

4шт.

WASHER, 5/16 lock

4шт.

23

665289R1

GASKET, fan housing door short, 416-501H thru 1550, 422-501H thru 3076

8шт.

24

670989R91

BEARING ASSY

BEARING W/HOUSING, fan shaft, 416CH780K up, 422CH1193K up

4шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4 crg

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

25

20810R1

LUBE NIPPLE,#10-32 x .50" lg

FITTING, 10-32NF2A str lub, 416CH780K up, 422CH 1193K up

4шт.

26

670010R1

DOOR, fan housing

2шт.

657803R1

NUT, 5/16 wing

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.
