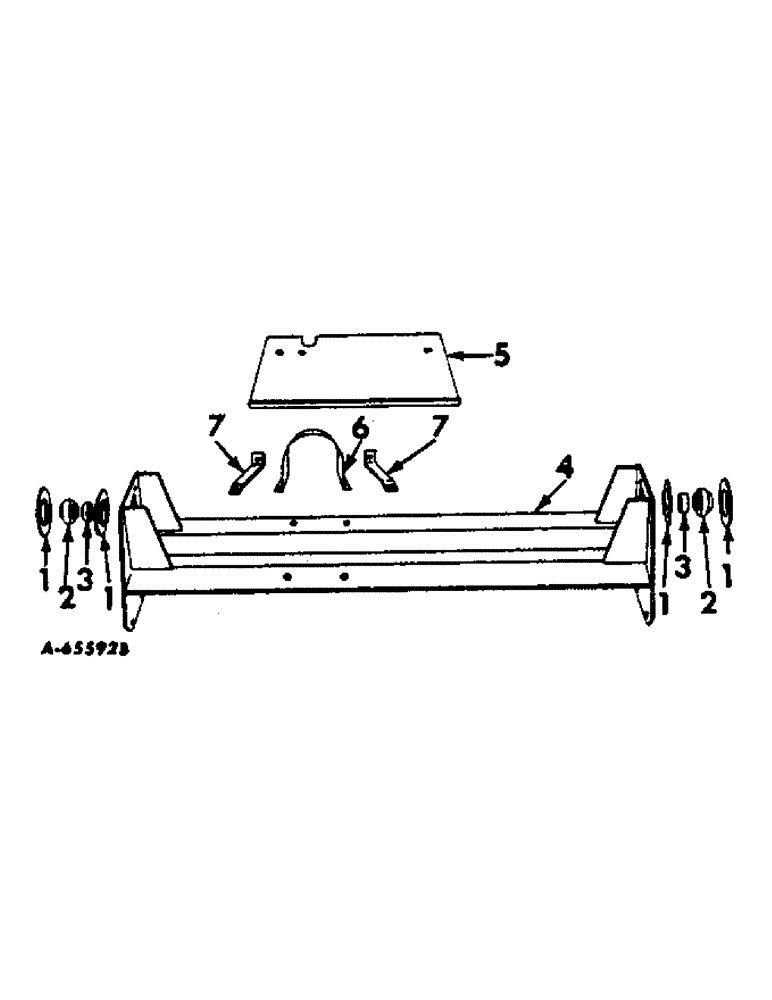

Запчасти Case IH 414 (159) - FAN DRIVE MOUNT (74) - CLEANING

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

SUPPORT, fan shaft bearing

4шт.

BOLT W/NUT, 3/8 x 1 crg

6шт.

WASHER, 3/8 lock

6шт.

2

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

fan drive cross shaft

2шт.

3

557115R11

COLLAR

COLLAR W/SET SCREW, bearing lock

2шт.

4

666555E92

MOUNT, fan drive, welded assy

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

6шт.

WASHER, 1/2 lock

6шт.

5

668414R1

SHIELD, ground drive clutch

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

3шт.

WASHER, 5/16 lock

3шт.

6

670354R1

SHIELD, fan clutch, 146780K up, 4221193K up

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

7

670981R1

SUPPORT, fan clutch shield end, 416780K up, 4221193K up

2шт.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

4шт.
