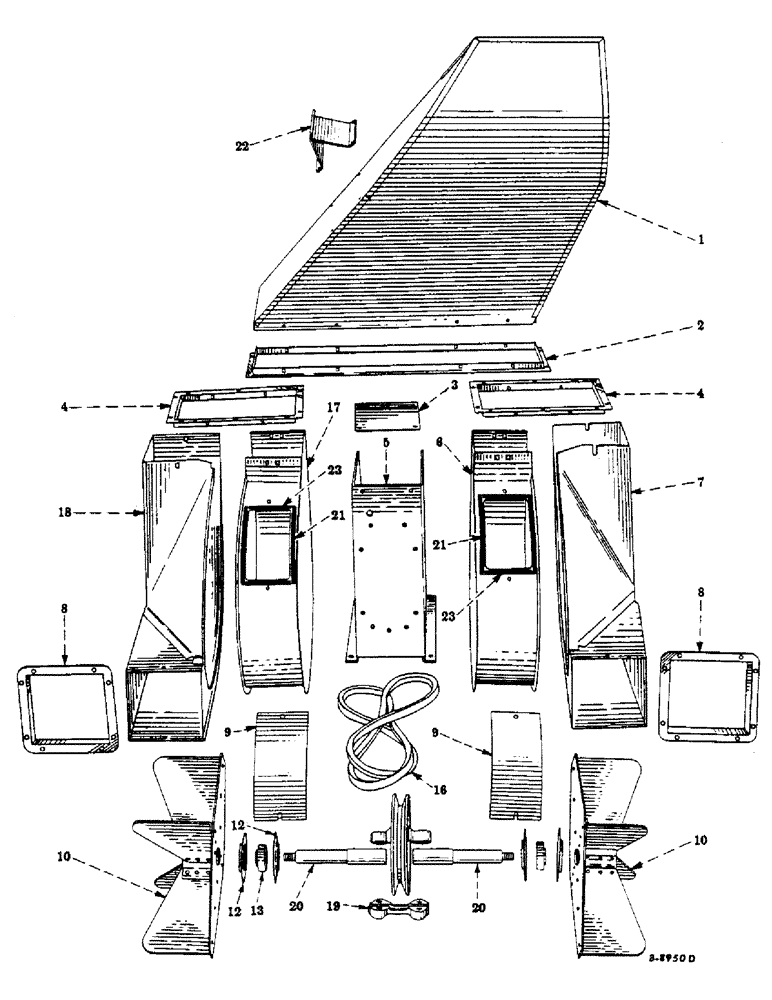

Запчасти Case IH 414 (053) - DUAL FANS (74) - CLEANING

1

664741R91

DISTRIBUTOR, left (Welded assembly)

1шт.

1

664742R91

DISTRIBUTOR, right (Welded assembly)

1шт.

5/16 X 3/4" CRG BOLT W/ NUT

10шт.

5/16" LOCK WASHER

10шт.

2

661019R91

FLANGE, distributor (Welded assembly)

2шт.

3/8 X 3/4" MACH BOLT W/NUT

39шт.

3/8 X 1" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

40шт.

3

661018R1

SHEET, distributor filler

2шт.

4

657874R91

FLANGE, fan housing outlet (Welded assembly)

4шт.

5/16" X 3/4" CRG BOLT W/NUT

24шт.

5/16" LOCK WASHER

24шт.

5

661007R21

BRACKET, right fan (Welded assembly)

2шт.

1/2 X 1" MACH BOLT W/NUT

8шт.

1/2" LOCK WASHER

8шт.

6

657888R91

HOUSING, left fan (Welded assembly)

2шт.

3/8 X 3/4" CRG BOLT W/NUT

12шт.

3/8 X 1" CRG BOLT W/NUT

4шт.

657803R1

5/16" WING NUT

4шт.

3/8" LOCK WASHER

16шт.

7

657877R91

COVER, left fan housing (Welded assembly)

2шт.

5/16 X 3/4" CRG BOLT W/NUT

2шт.

5/16 X 1/2" MACH BOLT W/NUT

22шт.

5/16" LOCK WASHER

24шт.

8

655007R1

FLANGE, fan housing inlet

16шт.

5/16 X 3/4" CRG BOLT W/NUT

16шт.

5/16" LOCK WASHER

16шт.

9

11588RA

DOOR, fan housing

4шт.

10

656522R1

FAN (Aluminum assembly)

4шт.

10

664988R91

FAN

ROTOR, fan (Riveted assembly)

4шт.

432786

KEY

1/4 X 2-3/4" WOODRUFF KEY

4шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

SUPPORT, fan shaft bearing

8шт.

3/8 X 1" CRG BOLT W/NUT

12шт.

3/8" LOCK WASHER

12шт.

13

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

fan shaft

4шт.

16

666390R1

BELT

Fan drive

2шт.

17

657889R91

HOUSING, right fan (Welded assembly)

2шт.

3/8 X 3/4" CRG BOLT W/NUT

12шт.

3/8 X 1" CRG BOLT W/NUT

4шт.

5/16" WING NUT

4шт.

3/8" LOCK WASHER

16шт.

18

657878R91

COVER, right fan housing (Welded assembly)

2шт.

5/16 X 3/4" CRG BOLT W/NUT

2шт.

5/16 X 1/2" MACH BOLT W/NUT

22шт.

5/16" LOCK WASHER

24шт.

19

665843R11

PULLEY ASSEMBLY, fan driven

2шт.

114735

3/16 X 1-1/8" WOODRUFF KEY

4шт.

1/2NF X 2-1/2" CAP SCREW W/NUT

8шт.

1/2" LOCK WASHER

8шт.

20

662517R1

SHAFT

fan

4шт.

3/4 NF SLTD NUT

4шт.

5/32 X 1-1/4" COTTER PIN

4шт.

615168R1

WASHER

25/32 X 1-1/2" X 11 GA WASHER

4шт.

557275R1

1-5/32 X 2-1/4" X 11 GA WASHER

8шт.

21

665288R1

GASKET, fan housing door long

8шт.

22

665034R11

STEP, distributor (Welded assembly)

1шт.

5/16 X 1/2" CRG BOLT W/NUT

4шт.

5/16" LOCK WASHER

4шт.

23

665289R1

GASKET, fan housing door short

8шт.
