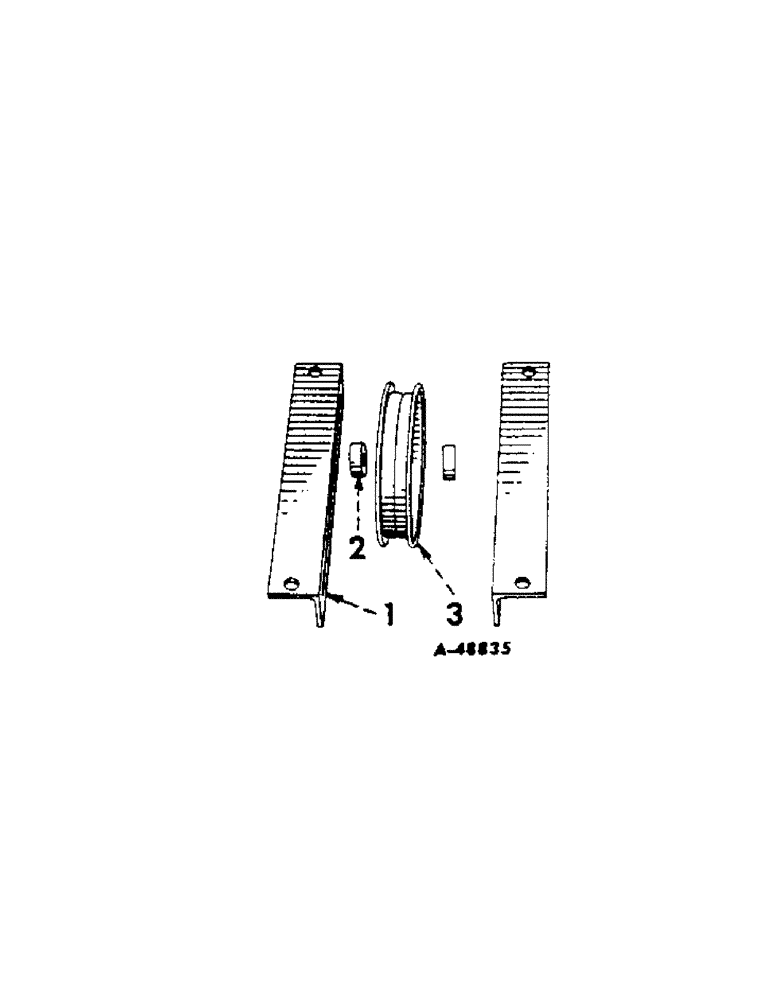

Запчасти Case IH 414 (051) - FAN DRIVE IDLER (74) - CLEANING

1

661995R1

BRACKET, fan idler adjusting

4шт.

1/2 X 1" MACH BOLT W/NUT

8шт.

1/2" LOCK WASHER

8шт.

17/32 X 1" X 16 GA WASHER

8шт.

2

661629R1

WASHER, fan idler (414501E thru 1119G) (420501E thru 2059G)

4шт.

2

668075R1

WASHER

fan idler (4141120G up) (4202060G up)

4шт.

3

564745R91

PULLEY

BEARING, fan idler (414501E thru 1119G) (420501E thru 2059G)

2шт.

5/8 X 3-1/4" MACH BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

21/32 X 1-1/4" X 11 GA WASHER

4шт.

3

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

BEARING, fan idler (4141120G up) (4202060G up)

2шт.

5/8 x 3-3/4" MACH BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

21/32 X 1-1/4" X 11 GA WASHER

4шт.
