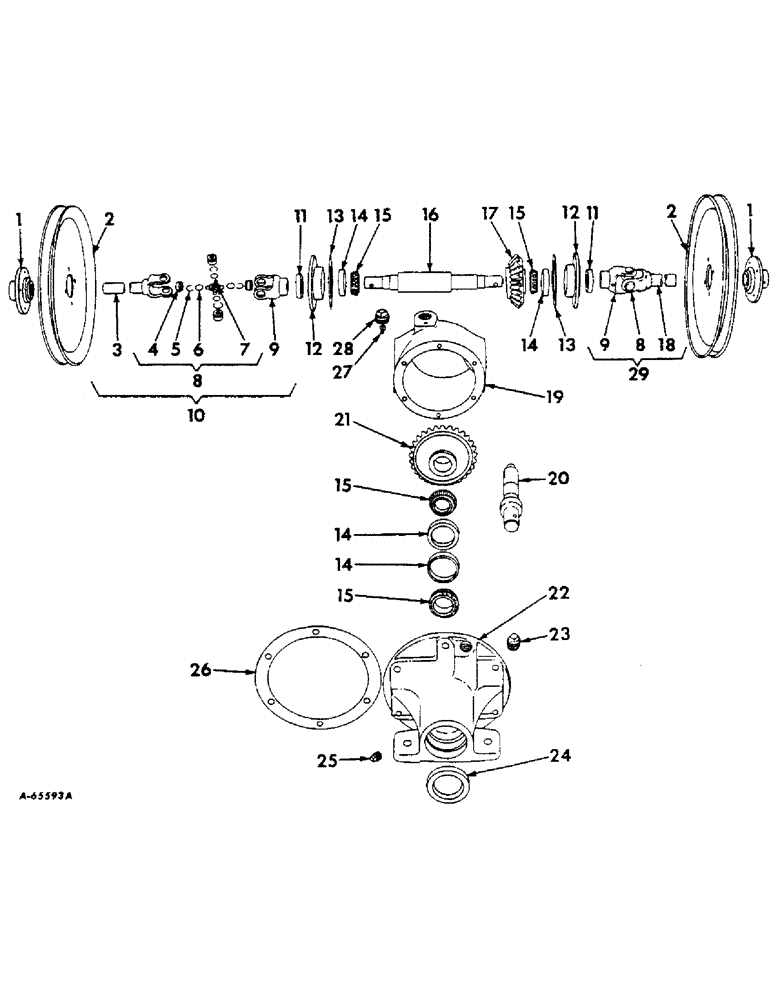

Запчасти Case IH 414 (050) - FAN DRIVE (74) - CLEANING

1

666562R1

HUB

fan drive pulley

2шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

2

564568R11

PULLEY, fan drive

2шт.

5/16 X 1" MACH BOLT W/NUT

8шт.

5/16" LOCK WASHER

8шт.

3

666660R91

YOKE AND SHAFT

1шт.

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

4

661678R91

BEARING

NEEDLE CUP

8шт.

5

357426R1

RING

SNAP RING

8шт.

6

357425R1

CORK SEAL

WASHER, cork

8шт.

7

271284

YOKE

1/8" 67-1/2 degree elbow lubrication

2шт.

8

150635R91

KIT

cross service

2шт.

9

666661R1

YOKE

2шт.

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, 3/8" x 1 5/8", Slotted

2шт.

10

666560R91

SHAFT ASSEMBLY, left fan drive

1шт.

11

666553R91

OIL SEAL

OIL SEAL, fan drive shaft

2шт.

12

585501R1

CAP, fan drive housing

2шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

3/8 X 1-1/4" NYLOCK CAP SCREW

8шт.

13

626838R1

SHIM

fan drive housing end cap (.020)

4шт.

13

626839R1

SHIM

fan drive housing end cap (.005)

4шт.

14

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Fan drive and pinion shaft

4шт.

15

618023R1

CONE

fan drive and pinion shaft bearing

4шт.

16

666550R1

SHAFT, fan drive gear

1шт.

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

2шт.

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

1шт.

17

666551R1

GEAR, fan drive

1шт.

18

666662R91

SHAFT

YOKE AND SHAFT

1шт.

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

19

585500R1

HOUSING, fan drive

1шт.

1/2 X 1-1/4" MACH BOLT

2шт.

1/2" LOCK WASHER

1шт.

20

666548R1

SHAFT, fan drive pinion

1шт.

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

1шт.

124557

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

3/4NF SLOTTED NUT

1шт.

1/8 X 1-1/2" COTTER PIN

1шт.

23471S

WASHER

25/32 X 1-1/2" X 7 GA WASHER

1шт.

21

666549R1

PINION, fan drive

1шт.

22

666547R1

HOUSING, fan drive pinion

1шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

3/8 X 1-1/4" NYLOCK CAP SCREW

6шт.

1/2 X 1-1/34" MACH BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

23

2778F

PLUG

VENT, fan drive housing (414501E thru 1119G) (420 501E thru 2059G)

1шт.

23

668076R1

PLUG, fan drive gear box vent (4141120G up) (4202060G up)

1шт.

24

666552R91

OIL SEAL

OIL SEAL, fan drive pinion shaft

1шт.

25

9617020

PLUG,1/4" - 18 x 0.48"

1/4" pipe

1шт.

26

626835R1

SHIM

fan drive pinion housing (.020)

2шт.

26

626836R1

SHIM

fan drive pinion housing (.007)

2шт.

26

626837R1

SHIM

fan drive pinion housing (.005)

1шт.

27

664337R1

SCREW, 3/8 x 1/2" nylock cap

1шт.

28

103870

PLUG, 1" pipe

1шт.

29

666561R91

JOINT

SHAFT ASSEMBLY, right fan drive

1шт.
