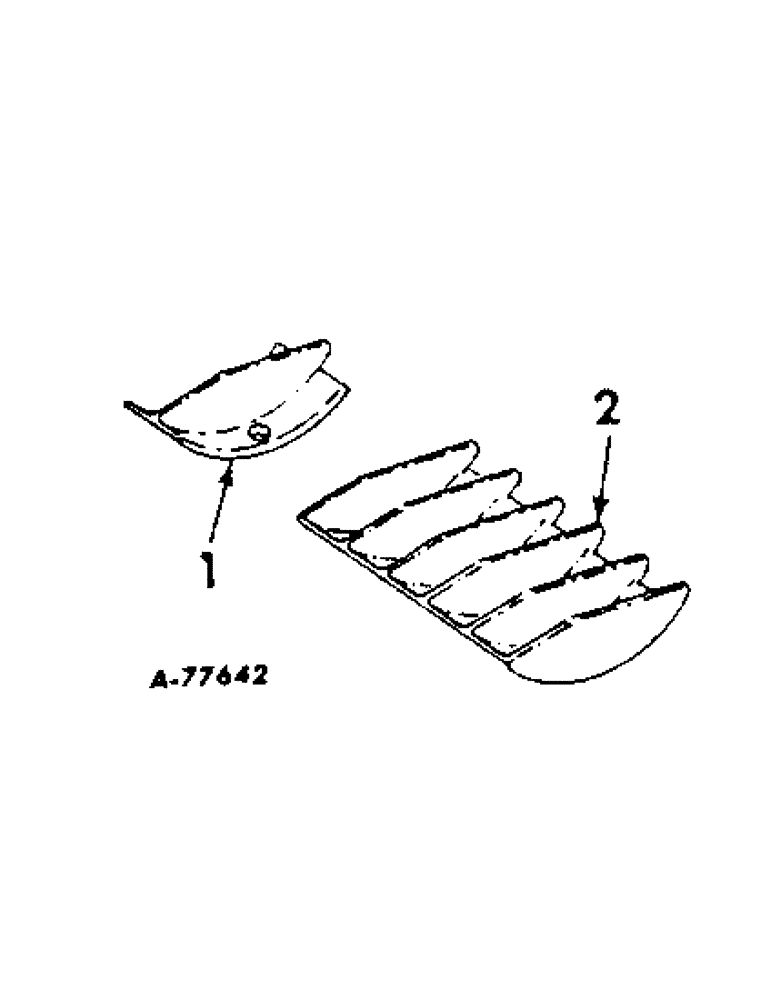

Запчасти Case IH 414 (125[1]) - ALUMINUM DEEP RIB COMPRESSOR PLATES (60) - PRODUCT FEEDING

1

669577R1

GUIDE

PLATE, compressor rib short

2шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

4шт.

178743

SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"

1/4-28 x 5/8 slt-fl-hd mach

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

669576R1

LARGE PLATE

PLATE, compressor rib long, 4 for units A and B, 6 for units C and D

1шт.

178743

SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"

1/4-28 x 5/8 slt-fl-hd mach, 12 for units A and B, 16 for units C and D

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex, 1 per screw

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per screw 1/4"

1шт.
