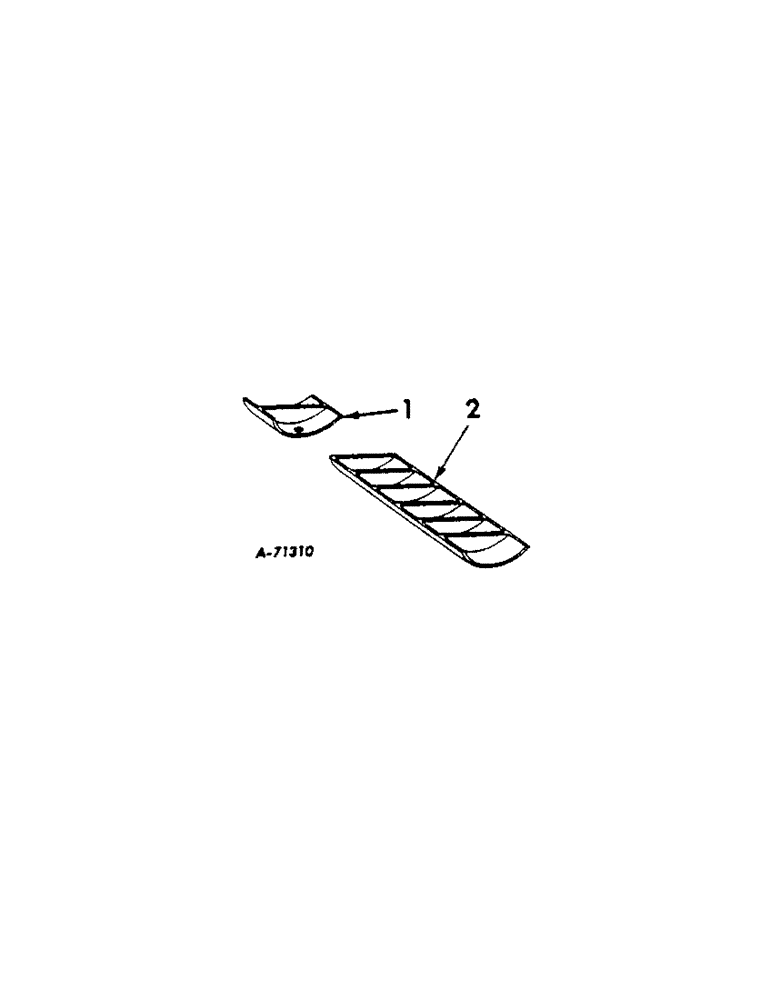

Запчасти Case IH 414 (027[1]) - ALUMINUM RIB COMPRESSOR PLATES (60) - PRODUCT FEEDING

ALUMINUM RIB COMPRESSOR PLATES (When ordered) (667404R91) (Unit A and B) (414CH813F up)

1шт.

ALUMINUM RIB COMPRESSOR PLATES (When ordered) (667405R91) (Unit C and D) (420CH1372F up)

1шт.

1

667389R1

PLATE, rear compressor rib short

2шт.

1

667387R1

GUIDE

PLATE, front compressor rib short

2шт.

178743

SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"

1/4 NF X 5/8" SLT-FL-HD SCREW

8шт.

25-114

NUT,1/4"-28, G5

1/4 NF NUT

8шт.

1/4" LOCK WASHER

8шт.

2

667388R1

PLATE, rear compressor rib long (2 for unit A and B; 3 for unit C and D)

1шт.

2

667386R1

LARGE PLATE

PLATE, front compressor rib long (2 for unit A and B; 3 for unit C and D)

1шт.

178743

SCREW,Sl Flat Hd, 1/4" - 28 x 5/8"

1/4 NF X 5/8" SLT-FL-HD SCREW (8 for unit A and B; 12 for unit C and D)

1шт.

25-114

NUT,1/4"-28, G5

1/4 NF NUT (8 for unit A and B; 12 for unit C and D)

1шт.

1/4" LOCK WASHER (8 for unit A and B; 12 for unit C and D)

1шт.
