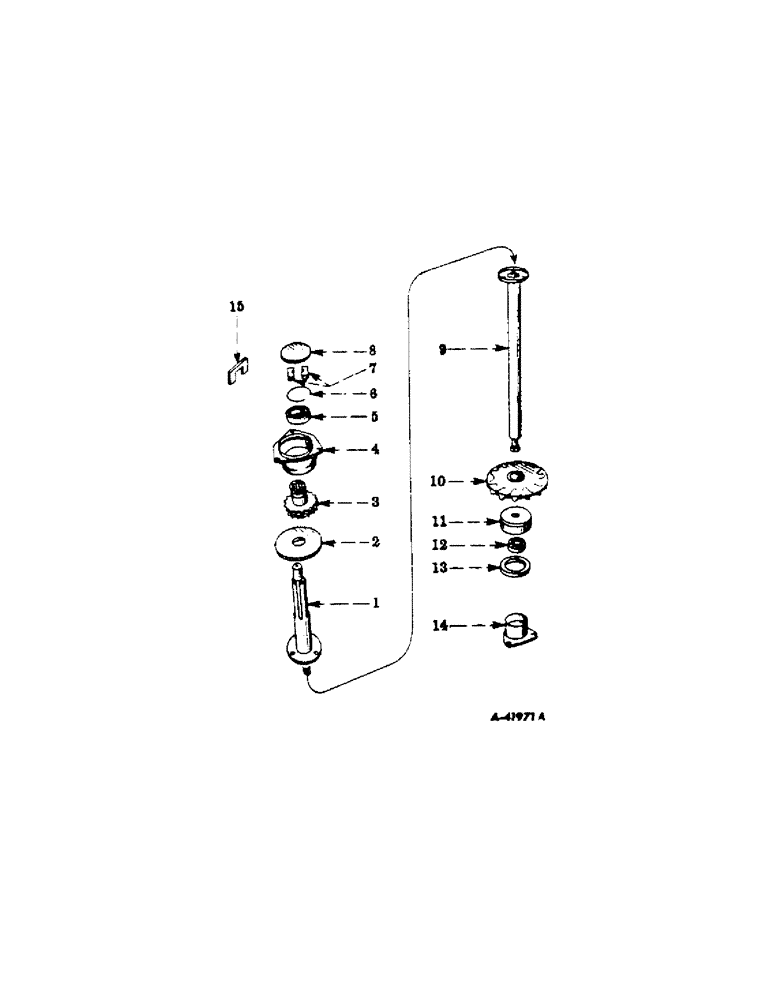

Запчасти Case IH 414 (025) - DOFFERS (60) - PRODUCT FEEDING

1

660631R1

SHAFT, doffer drive

2шт.

3/8NF X 3/4" CAPSCREW

6шт.

3/8" LOCK WASHER

6шт.

2

660638R1

FELT

SEAL, doffer shaft dust

2шт.

3

660632R1

SPROCKET, doffer drive (17 teeth)

2шт.

3

662502R1

SPROCKET, doffer drive (14 teeth) (Special)

2шт.

4

660634R1

CAGE, doffer drive shaft bearing

2шт.

3/8 X 3/4" MACH BOLT

6шт.

3/8" LOCK WASHER

6шт.

5

662060R91

BEARING

doffer drive shaft

2шт.

6

49137D

RING, SNAP

SNAP RING, bearing retainer

2шт.

7

660633R11

NUT ASSEMBLY, doffer shaft adjusting

2шт.

3/8NF X 2-1/2" CAP SCREW W/HUT

4шт.

3/8" LOCK WASHER

4шт.

8

660635R92

COVER, doffer shaft adjusting nut

2шт.

1/8 X 3/16" B-HD RIVET

4шт.

9

656170R91

SHAFT

doffer (2 for units A and B)

1шт.

9

10057RB

SHAFT

doffer (2 for unit C and D)

1шт.

3/4NF SLT NUT

2шт.

1/8 X 1-1/4" COTTER PIN

2шт.

10

664176R91

DOFFER

wide lug (28 for units A and B, 40 for units C and D)

1шт.

11

5RX

CARRIER, w/oil seal, doffer shaft

2шт.

110731

KEY

NO. 4 WOODRUFF KEY

2шт.

12

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, doffer shaft

2шт.

13

357672R91

OIL SEAL

OIL SEAL, doffer shaft

2шт.

14

20R

CAGE, doffer shaft bearing

2шт.

3/8 X 1/2" MACH BOLT

2шт.

3/8 X 3/4" MACH BOLT

6шт.

3/8" LOCK WASHER

8шт.

15

665278R1

TOOL, doffer adjusting

1шт.

667553R1

GASKET, doffer cover

1шт.

667573R1

CLIP

doffer dust seal

12шт.
