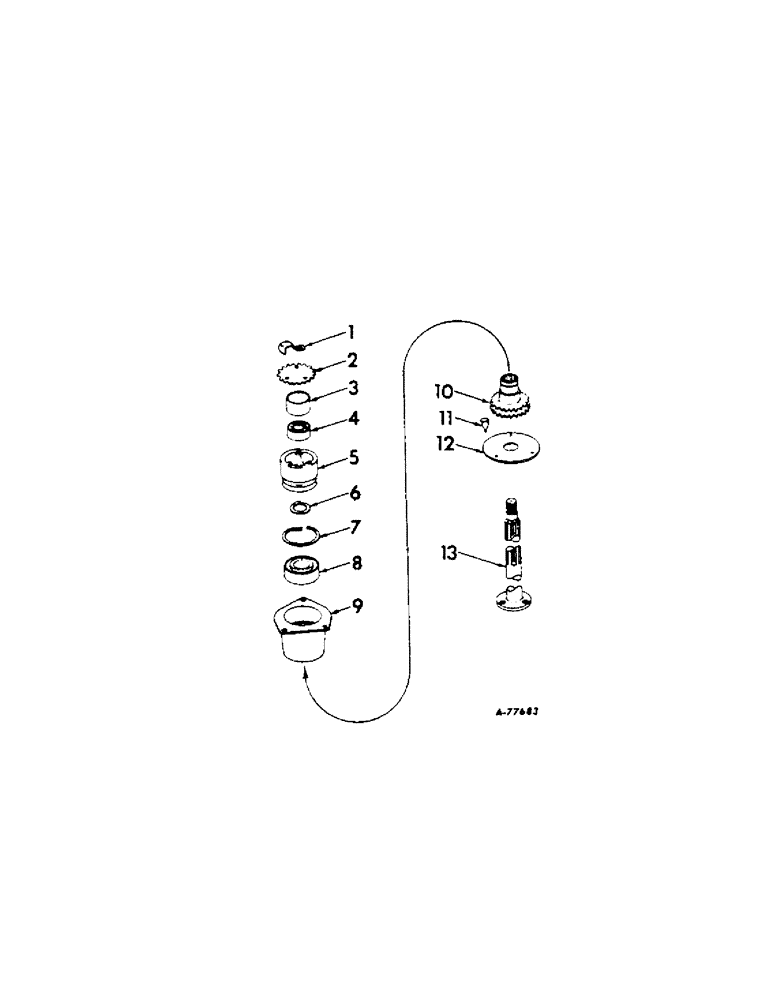

Запчасти Case IH 414 (025[1]) - DOFFER ADJUSTMENT ASSEMBLY, SERVICE PACKAGE (60) - PRODUCT FEEDING

669622R91

DOFFER ADJUSTMENT ASSEMBLY SERVICE PACKAGE (Note A)

4шт.

1

668820R1

LOCK

doffer adjusting screw

1шт.

2

10079R

COVER

CAP, doffer adjusting screw

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 X 3/4" MACH BOLT

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

10078R

SPACER

adjusting screw bearing

1шт.

4

ST287

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, doffer shaft

1шт.

5

7R

SCREW

doffer adjusting

1шт.

6

669287R1

RING

bearing retainer snap

1шт.

7

49137D

RING, SNAP

RING, bearing retainer snap (Large)

1шт.

8

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

doffer drive shaft

1шт.

9

668822R1

BEARING HOUSING

CAGE, doffer drive shaft bearing

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 X 3/4" MACH BOLT

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

668821R1

DRIVE SPROCKET

SPROCKET, doffer drive (17-T)

1шт.

11

667573R1

CLIP

doffer seal trim

3шт.

12

660638R1

FELT

doffer shaft dust seal

1шт.

13

668823R1

SHAFT

doffer drive

1шт.

427639

SLOTTED NUT,3/4"-16, G5

3/4NF SLT. HEX. NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
