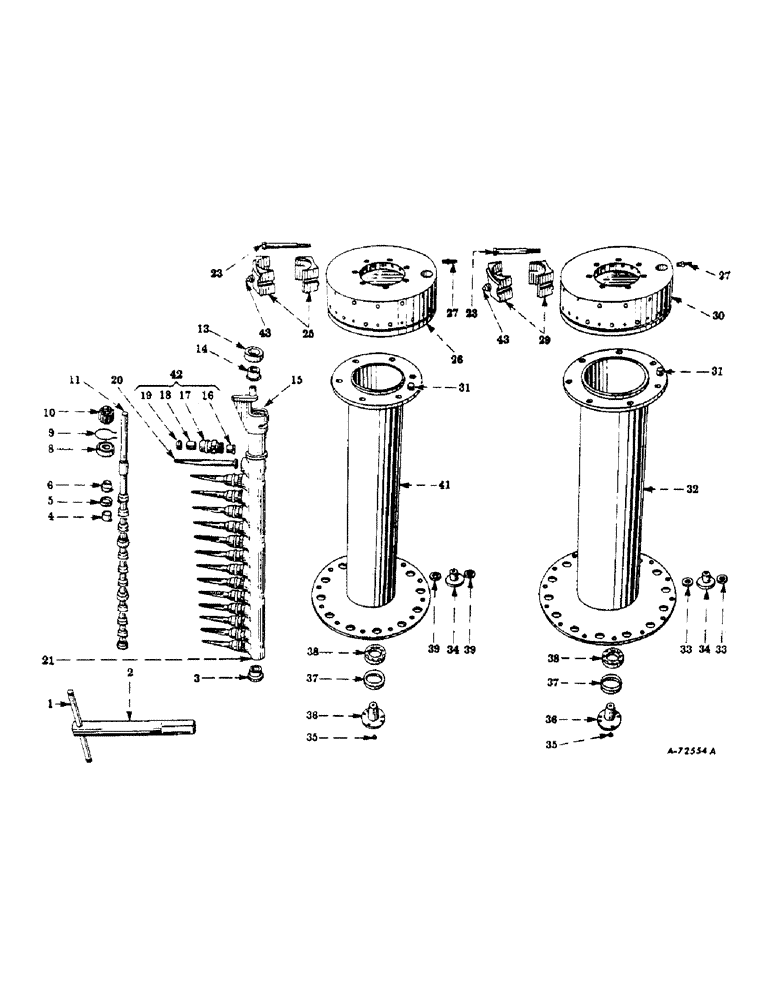

Запчасти Case IH 414 (023) - SPINDLE BARS AND PICKER DRUMS (60) - PRODUCT FEEDING

1

11076R

ROD

spindle nut wrench

1шт.

2

11073RB

OPEN END WRENCH

WRENCH, spindle nut

1шт.

3

10044RB

BUSHING

BEARING, picker bar pivot thrust

26шт.

3

664266R1

BEARING, picker bar pivot thrust (Oversize)

26шт.

4

10053RA

GEAR

long spindle (104 for units A and B, 130 for units C and D)

1шт.

655315R1

PIN

.146 X 1" ROLL PIN (104 for units A and B, 130 for units C and D)

1шт.

5

11456RB

BUSHING

BEARING, picker spindle gear (104 for units A and B, 130 for units C and D)

1шт.

5

664265R1

BEARING, picker spindle gear (Oversize) (104 for units A and B, 130 for units C and D)

1шт.

5

664682R1

BUSHING,0.88" ID x 1.127" OD x 7"

picker spindle gear (Undersize) (104 for units A and B, 130 for units C and D)

1шт.

6

10054RA

GEAR

short spindle (260 for units A and B, 390 for units C and D)

1шт.

655318R1

.146 X 1" ROLL PIN (260 for units A and B, 390 for units C and D)

1шт.

8

ST546

BEARING

spindle drive shaft

26шт.

9

10051R

OIL SEAL

SNAP RING, large spindle drive shaft bearing retainer

26шт.

9

665060R1

OIL SEAL

SNAP RING, spindle drive shaft bearing retainer (.008 oversize)

1шт.

9

665061R1

SNAP RING

SNAP RING, spindle drive shaft bearing retainer (.016 oversize)

1шт.

10

657789R2

GEAR

spindle drive shaft

26шт.

17342R1

PIN

3/32 X 1" ROLL PIN

26шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

26шт.

11

657791R21

SHAFT

spindle drive (Welded assembly) (26 for units A and B)

1шт.

11

657788R21

SHAFT

spindle drive (Welded assembly) (26 for units C and D)

1шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

26шт.

13

11457RA

RING

ROLLER, picker bar cam arm

26шт.

14

11458RA

BUSHING

picker bar cam arm

26шт.

15

660593R1

ARM, left picker bar cam

1шт.

15

660594R1

ARM, right picker bar cam

1шт.

16

656788R4

BUSHING,14.15mm ID x 19.11mm OD x 19.05mm L

picker spindle nut flange (364 for units A and B, 520 for units C and D)

1шт.

16

11947RD

BUSHING

picker spindle nut flange (364 for units A and B, 520 for units C and D) (Special) (For use with 666716R1 and 666717R1)

1шт.

17

661418R1

NUT

left picker spindle (196 for unit A, 168 for unit B, 280 for unit C, 240 for unit D)

1шт.

17

661419R1

NUT

right picker spindle (168 for unit A, 196 for unit B, 240 for unit C, 280 for unit D)

1шт.

18

10418R

BUSHING,14.15mm ID x 19.11mm OD x 19.05mm L

picker spindle nut plain (364 for units A and B, 520 for units C and D)

1шт.

18

11948R

BUSHING

picker spindle nut plain (364 for units A and B, 520 for units C and D) (Special) (For use with 666716R1 and 666717R1)

1шт.

19

661420R1

SHIELD

picker spindle (364 for units A and B, 520 for units C and D)

1шт.

19

664091R1

SHIELD

picker spindle (364 for units A and B, 520 for units C and D) (Special) (For use with 666716R1 and 666717R1)

1шт.

20

662606R1

SPINDLE

left picker (196 for unit A, 168 for unit B, 280 for unit C, 240 for unit D)

1шт.

20

662607R1

SPINDLE

right picker (168 for unit A, 196 for unit B, 240 for unit C, 280 for unit D)

1шт.

20

666716R1

SPINDLE

left picker (5/8" diameter, 3 degree 22 minutes) (Special) (196 for unit A, 168 for unit B, 280 for unit C, 240 for unit D)

1шт.

20

666717R1

SPINDLE

right picker (5/8" diameter, 3 degree 22 minutes) (Special) (168 for unit A, 196 for unit B, 240 for unit C, 280 for unit D)

1шт.

21

660535R92

BAR, left picker (14 for unit A, 12 for unit B)

1шт.

21

660536R92

BAR, right picker (12 for unit A, 14 for unit B)

1шт.

21

660545R92

BAR

left picker (12 for unit C, 12 for unit D)

1шт.

21

660545R92

BAR

right picker (12 for unit C, 14 for unit D)

1шт.

23

660533R2

BOLT,3/8" - 16 x 3 1/2", Grade 5

picker bar bearing

26шт.

13/32 X 7/8" X 11 GA WASHER

26шт.

25

660624R31

BEARING AND CAP, rear picker bar assembly

12шт.

446572

SCREW

1/4 X 3/4" F-HD SCREW W/SEM LOCK WASHER

12шт.

26

660623R1

HEAD, rear picker bar bearing

1шт.

3/8 X 1-1/4" MACH BOLT W/NUT

6шт.

3/8" LOCK WASHER

6шт.

27

11955R

TUBE

picker spindle oil

26шт.

29

660526R31

BEARING

AND CAP, front picker bar assembly

14шт.

446572

SCREW

1/4 X 3/4" F-HD SCREW W/SEM LOCK WASHER

14шт.

30

660525R1

HEAD, front picker bar bearing

1шт.

3/8 X 1-1/4" MACH BOLT W/NUT

7шт.

3/8" LOCK WASHER

7шт.

31

658141R1

PIN

DOWEL, picker rotor

2шт.

32

660534R91

ROTOR, front picker (Units A and B)

1шт.

660543R91

ROTOR, front picker (Units C and D)

1шт.

33

664228R1

WASHER

CLAMP, front picker bar pivot

14шт.

3/8 X 7/8" MACH BOLT

14шт.

3/8" LOCK WASHER

14шт.

34

664225R91

PIVOT

picker bar

26шт.

35

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

36

11702R

PIVOT

PILOT, picker rotor bearing

2шт.

3/8 X 3/4" MACH BOLT

6шт.

3/8" LOCK WASHER

6шт.

37

10034R

SEAL

OIL SEAL, picker rotor

2шт.

38

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING, picker rotor

2шт.

39

658116R1

WASHER

CLAMP, rear picker bar pivot

12шт.

3/8 X 7/8" MACH BOLT

12шт.

3/8" LOCK WASHER

12шт.

41

660785R91

ROTOR, rear picker (Units A and B)

1шт.

41

660626R91

ROTOR, rear picker (Units C and D)

1шт.

42

661418R11

NUT

W/BUSHINGS, left picker spindle (196 for unit A, 168 for unit B, 280 for unit C, 240 for unit D)

1шт.

42

661419R11

NUT

W/BUSHINGS, right picker spindle (168 for unit A, 196 for unit B, 240 for unit C, 280 for unit D)

1шт.

43

1988R91

FITTING, 1/4" self tapping lubrication

26шт.

11264R

SHIM,25.77mm ID x 31.75mm OD x 0.2mm Thk

(0.008"), Spindle nut, for picker bar 0.2032mm Thk

1шт.

664960R1

SHIM, spindle nut bushing (.007)

1шт.

656526R1

SHIM

picker bar pivot (.003)

1шт.

656527R1

SHIM

picker bar pivot (.005)

1шт.

656528R1

SHIM

picker bar pivot (.007)

1шт.

656529R1

SHIM

picker bar pivot (.010)

1шт.

656530R2

SHIM, picker bar pivot thrust bushing (.003)

1шт.

656531R2

SHIM, picker bar pivot thrust bushing (.005)

1шт.

656532R2

SHIM, picker bar pivot thrust bushing (.007)

1шт.

656533R2

SHIM, picker bar pivot thrust bushing (.010)

1шт.
