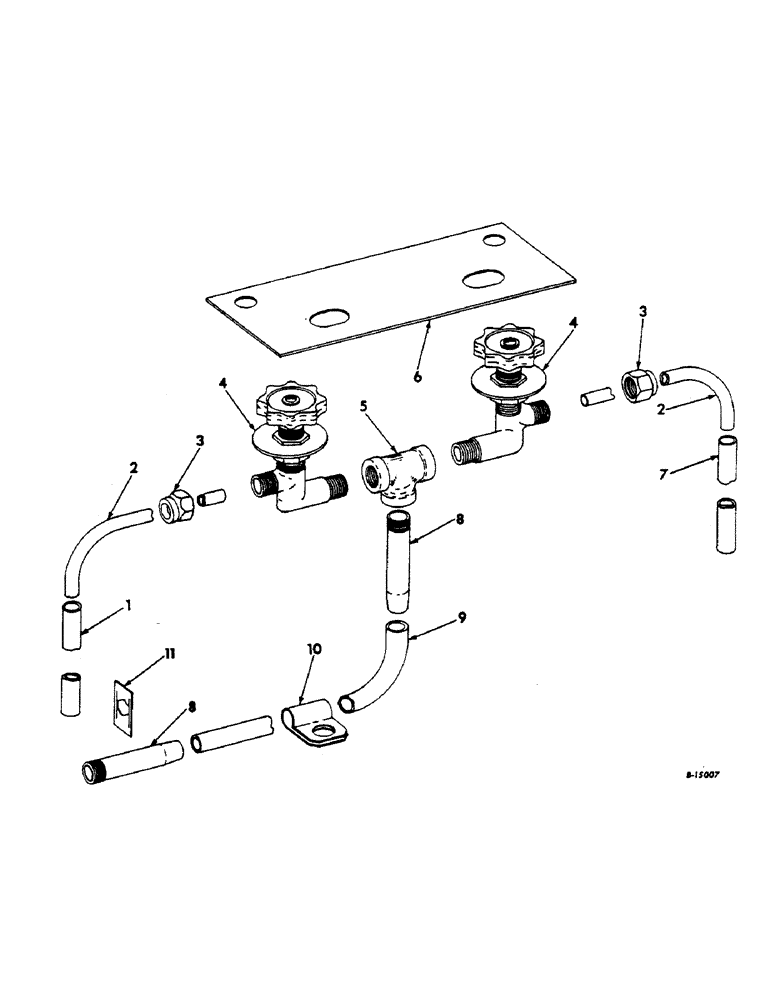

Запчасти Case IH 414 (013) - WATER LINES, IN DRUM, 4141120G THROUGH 1568G, 4202050G THROUGH 2820G (60) - PRODUCT FEEDING

1

HOSE, connector to stand water (Use 16 inches of 9/32" ID hose from 50-ft. roll marked 665180R1)

1шт.

2

660693R1

PIPE

water

2шт.

3

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/16" ball sleeve tube

2шт.

4

659204R91

VALVE

water metering

2шт.

5

217-10

TEE,1/8" - 27 NPTF Fem

1/8" water pipe

1шт.

6

667580R1

PLATE, water metering valve

1шт.

3/8 X 1" MACH BOLT W/NUT

1шт.

3/8" LOCK WASHER

1шт.

7

HOSE, connector to stand water (Use 37 inches of 9/32" ID hose from 50-ft. roll marked 665180R1)

1шт.

8

665597R1

NIPPLE, water

2шт.

9

HOSE, nipple to connector water (Use 57 inches of 9/32" ID hose from 50-ft. roll marked 665180R1)

1шт.

10

140582

CLAMP

CLIP, hose

4шт.

11

660698R1

NUT

water pipe connection

2шт.
