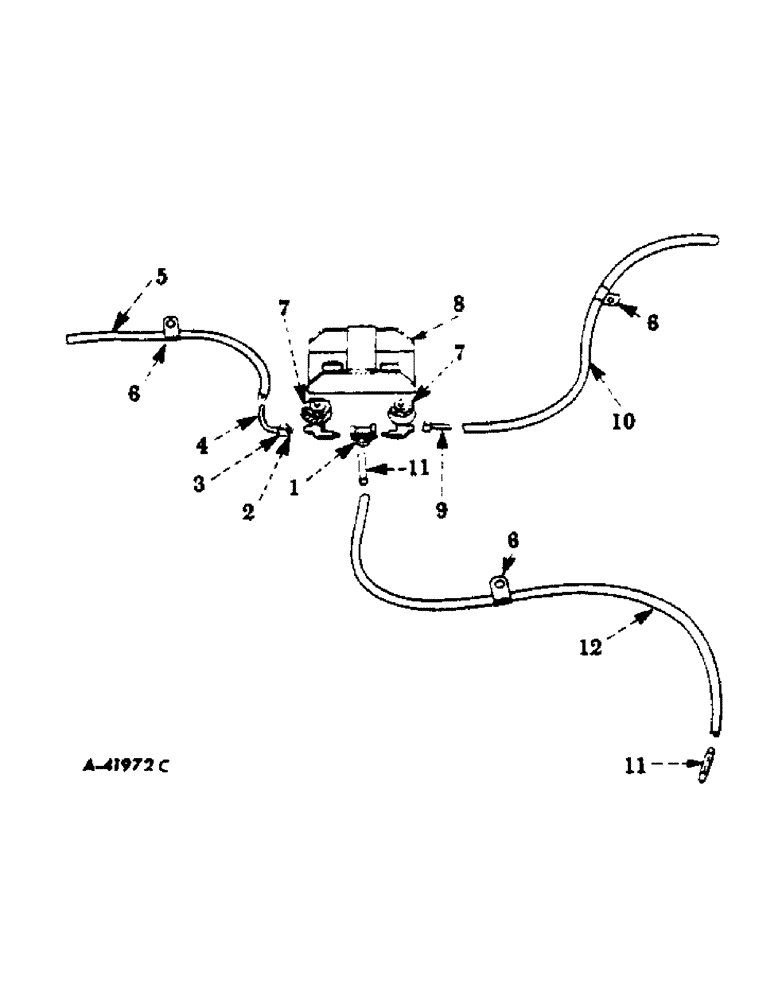

Запчасти Case IH 414 (012) - WATER LINES, IN DRUM, 414501E THROUGH 1119G, 420501E THROUGH 2049G (60) - PRODUCT FEEDING

1

144082

COVER

1/8" water pipe

1шт.

2

114631

SLEEVE,Ball Type, 5/16" Tube

5/16" ball

2шт.

3

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/16" ball sleeve tube

2шт.

4

660693R1

PIPE

water (Metering valve to rear moistener hose)

1шт.

5

HOSE, water (Metering valve pipe to rear moistener) (Use 23 inches of 9/32" hose from 50-foot roll marked 665180R1)

1шт.

11

665597R1

NIPPLE, 1/8 x 2" galvanize (In water pipe tee)

2шт.

660698R1

NUT

TIMMERMAN SPEED NUT

2шт.

12

660696R1

HOSE, water, Serial Range: (Nipple-connector)

1шт.
