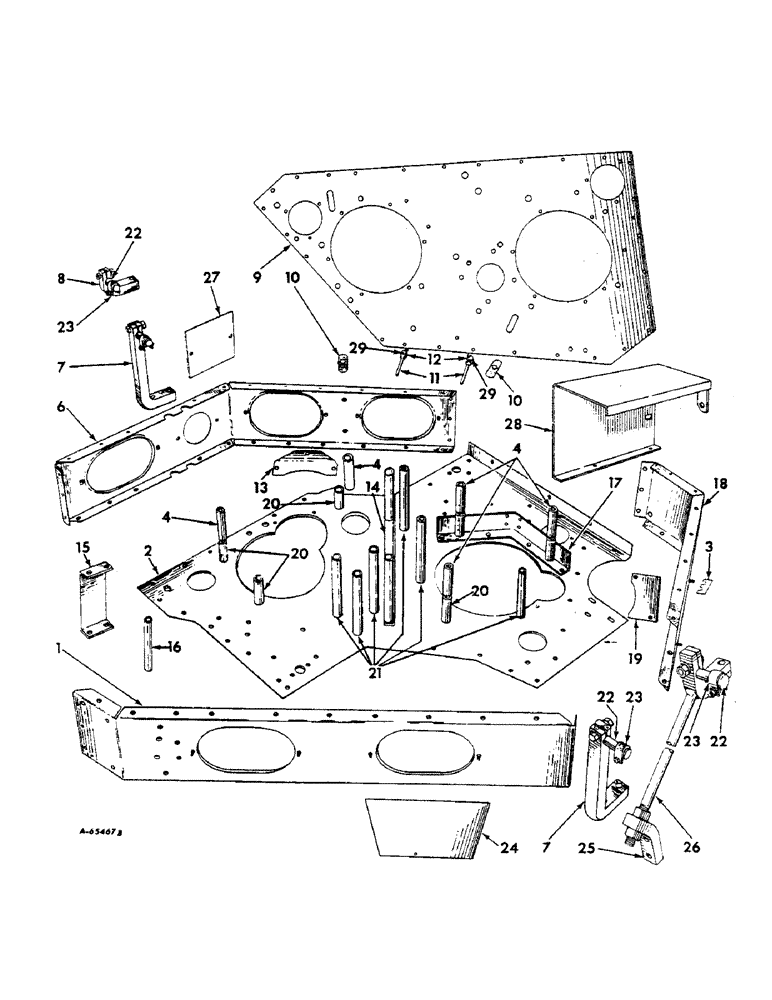

Запчасти Case IH 414 (010) - PICKER DRUM TOP PLATE AND HOUSING (60) - PRODUCT FEEDING

1

660665R1

CHANNEL, rear drum housing

1шт.

5/16 X 3/4" MACH BOLT

4шт.

3/8 X 3/4" MACH BOLT W/NUT

5шт.

3/8 X 1" MACH BOLT W/NUT

11шт.

657803R1

5/16" WING NUT

4шт.

3/8" LOCK WASHER

16шт.

13/32" X 3/4" 16 GA WASHER

2шт.

2

660660R2

PLATE, left top drum housing (Units A and C)

1шт.

2

660661R2

PLATE, right top drum housing (Units B and D)

1шт.

3

668783R1

SHIM, drum lifting arm (1/4")

1шт.

3

668754R1

SHIM

drum lifting arm (11 ga)

1шт.

3

668755R1

SHIM

drum lifting arm (16 ga)

1шт.

4

657744R1

SPACER

top cam

5шт.

5

660657R1

STIFFENER, inner drum housing

1шт.

5/8 X 1-1/2" MACH BOLT W/NUT

2шт.

5/8" LOCK WASHER

2шт.

6

660668R91

CHANNEL, side drum housing

1шт.

5/16 X 3/4" MACH BOLT

6шт.

3/8 X 3/4" MACH BOLT W/NUT

6шт.

3/8 X 1" MACH BOLT W/NUT

20шт.

657803R1

5/16" WING NUT

6шт.

3/8" LOCK WASHER

26шт.

7

660802R1

BRACKET, lifting arm (2 for units A and B)

1шт.

5/8 X 2-1/4" MACH BOLT W/NUT

2шт.

5/8 X 3" MACH BOLT W/NUT

2шт.

5/8 X 13" CAPSCREW W/NUT

2шт.

5/8" LOCK WASHER

6шт.

8

660688R1

BRACKET, lifting arm (Units C and D)

1шт.

5/8 X 2-1/4" MACH BOLT W/NUT

1шт.

5/8 X 3" MACH BOLT W/NUT

1шт.

5/8 X 13" CAP SCREW W/NUT

1шт.

5/8" LOCK WASHER

3шт.

9

660688R1

PLATE, drum housing cover

1шт.

10

10215R

COVER

adjustable idler sprocket slot

1шт.

11

667576R1

TUBE, picker cam lubricator 1" OD, 5.53" Length

2шт.

12

667590R1

FITTING

BUSHING, cam lubricator

2шт.

13

660658R1

FILLER, rear drum housing top plate

1шт.

3/8 X 3/4" MACH BOLT W/NUT

3шт.

3/8" LOCK WASHER

3шт.

14

660646R93

STIFFENER, angle drum housing (4141120G up) (4202050G up)

1шт.

14

660646R92

ANGLE

left center cam support (Units A and C) (414501E thru 2049G) (See note A) (420501E thru 2049G) (See note A)

1шт.

14

660647R92

ANGLE

right center cam support (Units B and D) (414501E thru 1119G) (See note A) (420501E thru 2049G) (See note A)

1шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8 X 1" MACH BOLT W/NUT

4шт.

5/8 X 11" CAP SCREW W/NUT

1шт.

3/8" LOCK WASHER

5шт.

15

657746R1

SPACER, short drum housing (414501E thru 1119G) (420501E thru 2049G)

2шт.

3/8 X 3/4" MACH BOLT

4шт.

3/8 X 1" MACH BOLT W/NUT

4шт.

3/8" LOCK WASHER

8шт.

16

660656R1

SPACER, cam support center angle (414501E thru 1119G) (420501E thru 2049G)

1шт.

17

660652R91

ANGLE, front cam support

1шт.

3/8 X 1" MACH BOLT W/NUT

4шт.

3/8" LOCK WASHER

4шт.

18

660671R91

CHANNEL, front drum housing

1шт.

5/16 X 3/4" MACH BOLT

1шт.

3/8 X 3/4" MACH BOLT W/NUT

15шт.

3/8 X 1" MACH BOLT W/NUT

7шт.

657803R1

5/16" WING NUT

2шт.

3/8" LOCK WASHER

22шт.

19

660655R1

FILLER, front drum housing top plate

1шт.

3/8 X 3/4" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

20

655984R1

SPACER, cam

4шт.

21

657739R1

SPACER, drum housing pipe

6шт.

5/8 X 11" CAP SCREW W/NUT

4шт.

5/8" LOCK WASHER

4шт.

22

658293R1

PIN

lifting arm

2шт.

23

660687R1

CLEVIS

SPACER, lifting arm pin

2шт.

3/8 X 2" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

2шт.

24

657741R1

PLATE, drum housing inspection

6шт.

25

664937R1

BRACKET, drum tie rod (Units C and D)

1шт.

1/2 X 2" MACH BOLT W/NUT

2шт.

1/2" LOCK WASHER

2шт.

26

664935R91

ROD, drum tie (Unit C and D)

1шт.

5/8 X 2-1/2" MACH BOLT W/NUT

1шт.

5/8 X 3" MACH BOLT W/NUT

1шт.

7/8NF NUT

2шт.

5/8 X 13" CAP SCREW W/NUT

1шт.

5/8" LOCK WASHER

3шт.

27

664948R1

COVER, cam cover plug opening

1шт.

5/16 X 3/4" MACH BOLT W/NUT

2шт.

5/16" LOCK WASHER

2шт.

28

666206R91

SHIELD, drive shaft (Units B and D)

1шт.

29

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 - 65 degree lubrication

2шт.
