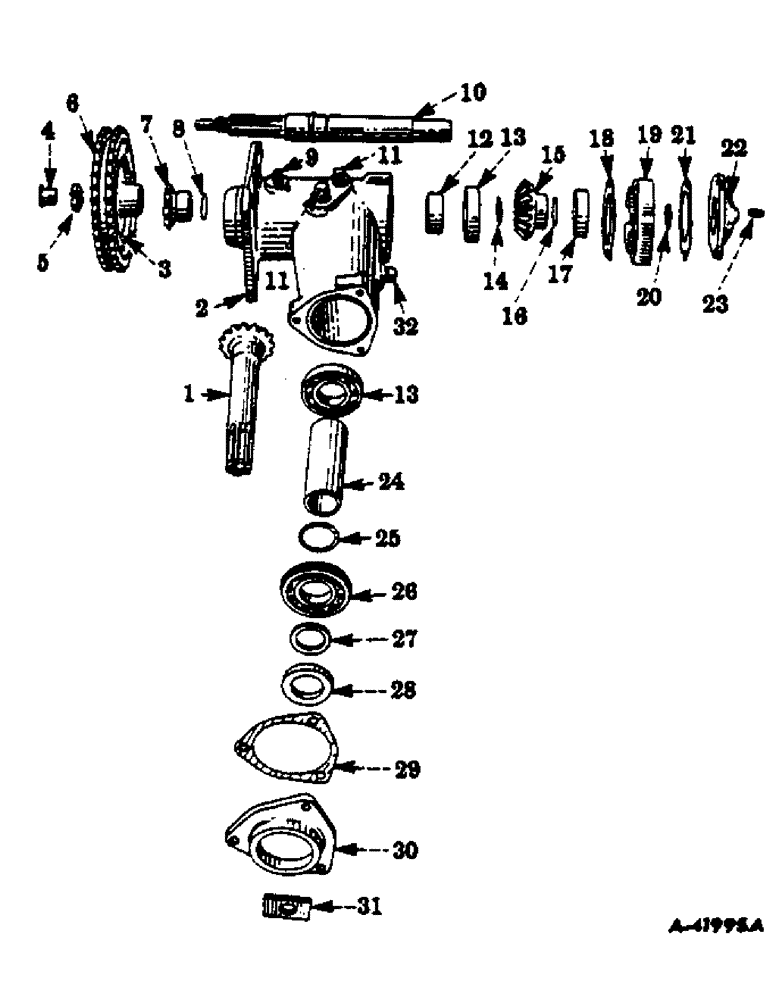

Запчасти Case IH 414 (007) - LEFT PICKER DRUM DRIVE (60) - PRODUCT FEEDING

1

656142R2

SHAFT

picker drive pinion (Units A and C)

1шт.

2

656140R1

HOUSING

picker drive (Units A and C)

1шт.

1/2 X 1-1/4 CAP SCREW

4шт.

1/2" LOCK WASHER

4шт.

3

660703R1

FELT, spindle and doffer drive sprocket (Units A and C)

1шт.

9/64 X 5/8" OV-HD SPLIT RIVET

6шт.

4

10169RA

SPROCKET ASSY.

SPOCKET, water distributor drive (Units A and C)

1шт.

441012

1/4 X 7/8" ROLL PIN

1шт.

5

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8 NF slt-hex jam (Units A and C)

1шт.

6

662503R11

SPROCKET ASSY.

SPROCKET, spindle and doffer drive (Riveted assembly) (Units A and C)

1шт.

7

10167R

SPROCKET, picker drum drive (Units A and C)

1шт.

8

11926R

SHIM

picker drum drive sprocket (Units A and C)

1шт.

9

9617020

PLUG,1/4" - 18 x 0.48"

1/4" sq.-hd. pipe (Units A and C)

1шт.

10

660706R1

SHAFT

picker drive sprocket (Units A and C)

1шт.

114735

NO. 16 WOODRUFF KEY

1шт.

1/8 X 1-1/2" COTTER PIN

1шт.

1/2 NF X 1-1/4" CAP SCREW

1шт.

1/2" LOCK WASHER

1шт.

551659R1

WASHER

29/32 X 1-1/2" X 22 GA. WASHER

1шт.

11

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe (2 for Units A and C) Sq Hd, 1/2"-14 NPTF

1шт.

12

659711R91

SEAL

OIL SEAL, picker drive sprocket shaft (Units A and C)

1шт.

13

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, picker drive ball (2 for Units A and C)

1шт.

14

359141R1

RING, SNAP

SNAP RING, picker drive sprocket shaft (Units A and C)

1шт.

15

656143R2

GEAR

picker drive sprocket shaft (Units A and C)

1шт.

16

10156R

SHIM

heavy picker drive gear (3 for Units A and C)

1шт.

16

10157R

SHIM

light picker drive gear (3 for Units A and C)

1шт.

17

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, upper picker drive sprocket shaft (Units A and C)

1шт.

18

656630R1

GASKET

bearing retainer (Units A and C)

1шт.

19

660704R1

RETAINER

left bearing (Units A and C)

1шт.

20

18503D

RETAINER, picker drive sprocket shaft bearing (Units A and C)

1шт.

21

10164R

GASKET

bearing cap (Units A and C)

1шт.

22

15R

CAP

picker drive shaft bearing (Units A and C)

1шт.

3/8 X 1-7/8" MACH BOLT

3шт.

3/8" LOCK WASHER

3шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Units A and C) 1/8"-27 x .66 lg

1шт.

24

656163R1

SPACER

picker drive pinion (Units A and C)

1шт.

25

656166R1

SHIM

heavy picker drive pinion (3 for units A and C)

1шт.

25

656167R1

SHIM

light picker drive pinion (3 for units A and C)

1шт.

26

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, pinion shaft (Units A and C)

1шт.

27

Q3482

WASHER

picker drive pinion shaft (Units A and C)

1шт.

28

M86688

SEAL

OIL SEAL, pinion shaft (Units A and C)

1шт.

29

656168R1

GASKET

pinion shaft bearing retainer (Units A and C)

1шт.

30

656141R1

RETAINER

picker drive pinion shaft bearing (Units A and C)

1шт.

3/8" X 1" MACH BOLT

3шт.

3/8" LOCK WASHER

3шт.

31

10176R

STRIP

WASHER, knuckle retainer (Units A and C)

1шт.

5/8NF X 1-1/4" CAP SCREW

1шт.

5/8" LOCK WASHER

1шт.

32

10728P

PLUG

1/2" dld sq-hd pipe (Units A and C)

1шт.
