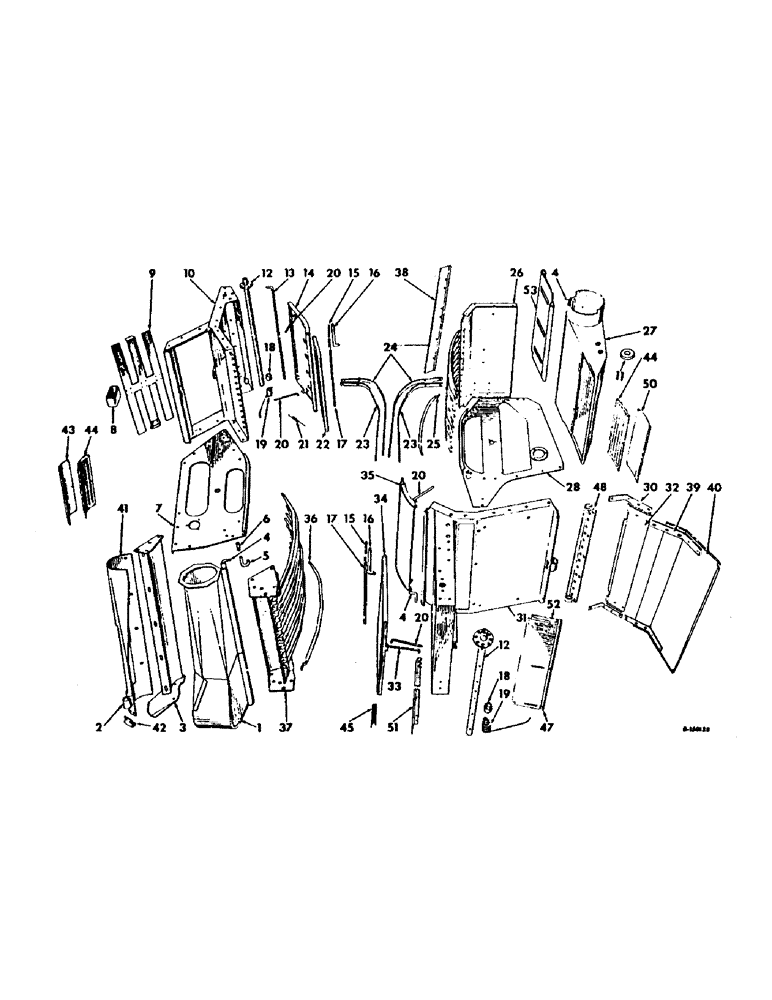

Запчасти Case IH 414 (116) - LOWER DRUM HOUSING (58) - ATTACHMENTS/HEADERS

1

664196R93

DOOR

OUTLET, left rear, Unit A

1шт.

1

664180R93

DOOR

OUTLET, left rear, Unit C

1шт.

1

664197R93

DOOR

OUTLET, right rear, Unit B

1шт.

1

664181R93

DOOR

OUTLET, right rear, Unit D

1шт.

2

655235R1

CATCH

drum door

2шт.

BOLT W/NUT, 1/4 x 1/2 mach

4шт.

WASHER, 1/4 lock

4шт.

WASHER, 9/32 x 5/8 x 16 ga

4шт.

3

663655R91

POST, inner left rear, Unit A

1шт.

3

663649R91

POST, inner left rear, Unit C

1шт.

3

663656R91

POST, inner right rear, Unit B

1шт.

3

663650R91

POST, inner right rear, Unit D

1шт.

BOLT W/NUT, 3/8 x 3/4 crg

1шт.

BOLT W/NUT, 3/8 x 1 mach

3шт.

WASHER, 3/8 lock

4шт.

4

656034R3

PIVOT

ROD, plant compressor sheet pivot

3шт.

5

660771R1

PIVOT, lower rear outlet, Units A and B, 501H thru 1303M, Units C and D, 501H thru 2380M

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

WASHER, 17/32 x 7/8 x 16 ga

1шт.

6

76DS

SPRING

lower outlet pivot rod, Units A and B, 501H thru 1303M, Units C and D, 501H thru 2380M

1шт.

7

660772R93

PLATE, left inner drum housing, Units A and C

1шт.

7

660773R93

PLATE, right inner drum housing, Units B and D

1шт.

8

661470R91

SEPARATOR, drum, 2 for units A and C

1шт.

BOLT W/NUT, 3/8 x 1 mach

4шт.

WASHER, 3/8 lock

4шт.

9

661393R91

SHIELD, drum safety, Units A and B

1шт.

9

661392R91

SHIELD, drum safety, Units C and D

1шт.

10

660786R95

POST, left front inner, Unit A

1шт.

10

660787R95

POST, right front inner, Unit B

1шт.

10

660744R95

POST, left front inner, Unit C

1шт.

10

660745R95

POST, right front inner, Unit D

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

4шт.

BOLT W/NUT, 3/8 x 1 mach

8шт.

WASHER, 3/8 lock

12шт.

11

538668R1

BUSHING

GROMMET

2шт.

12

660815R91

PIPE, left plant compressor sheet tension spring, 2 for unit A

1шт.

12

660816R91

PIPE, right plant compressor sheet tension spring, 2 for unit B

1шт.

12

660707R91

PIPE, left plant compressor sheet tension spring, 2 for unit C

1шт.

12

660708R91

PIPE, right plant compressor sheet tension spring, 2 for unit D

1шт.

PIN, 5/16 x 1-1/2 cotter

2шт.

PIN, 3/8 x 1-1/2 cotter

2шт.

13

656040R1

ROD, plant compressor sheet pivot, Units A and B

1шт.

13

10307R

ROD, plant compressor sheet pivot, Units C and D

1шт.

14

667311R91

SHEET, left front plant compressor, Unit A

1шт.

14

667312R91

SHEET, right front plant compressor, Unit B

1шт.

14

667305R91

SHEET, left front plant compressor, Unit C

1шт.

14

667306R91

SHEET, right front plant compressor, Unit D

1шт.

15

10322R

SPRING

plant compressor sheet hinge rod extension

2шт.

16

673851R2

STEM

ROD, plant compressor sheet extension hinge

2шт.

17

667228R2

ROD

plant compressor sheet hinge, 2 for units A and B

1шт.

17

667227R2

ROD

plant compressor sheet hinge, 2 for units C and D

1шт.

18

660755R1

SPACER

plant compressor spring pipe

2шт.

19

10323RA

SPRING

plant compressor sheet tension, 8 for units A and B, 10 for units C and D

1шт.

BOLT W/NUT, 5/16 x 1-3/4 mach, 8 for units A and B, 10 for units C and D

1шт.

WASHER, 5/16 lock, 8 for units A and B, 10 for units C and D

1шт.

20

660718R1

ROD

plant compressor sheet adjusting

4шт.

NUT, 3/8 stop

4шт.

PIN, 3/32 x 7/8 cotter

4шт.

21

10310R

SPRING

plant compressor front sheet extension

1шт.

22

667394R91

EXTENSION, left plant compressor front sheet, Unit A

1шт.

22

667395R91

EXTENSION, right plant compressor front sheet, Unit B

1шт.

22

667324R91

EXTENSION, right plant compressor front sheet, Unit C

1шт.

22

667325R91

EXTENSION, right plant compressor front sheet, Unit D

1шт.

23

11855RA

BAR, center cotton retainer

2шт.

24

11856RA

GUIDE

BAR, outer cotton retainer

2шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

3шт.

BOLT W/NUT, 3/8 x 1-1/2 mach

1шт.

WASHER, 3/8 lock

4шт.

25

11784RA

GUIDE

BAR, left front slat, 14 for unit A, 20 for unit C

1шт.

25

658262R1

GUIDE

BAR, right front slat, 14 for unit B, 20 for unit D

1шт.

BOLT, 5/16 x 3/4 mach, 11 for units A and B, 17 for units C and D

1шт.

WASHER, 5/16 lock, 11 for units A and B, 17 for units C and D

1шт.

26

656174R93

POST, left front outer, Unit A

1шт.

26

660790R92

POST, right front outer, Unit B

1шт.

26

11878RE

POST, left front outer, Unit C

1шт.

26

660741R93

POST, right front outer, Unit D

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

5шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

7шт.

27

200532C2

DOOR W/PRODUCT GRAPHIC ASSY, left drum housing, Unit A

1шт.

27

200533C2

DOOR W/PRODUCT GRAPHIC ASSY, right drum housing, Unit B

1шт.

27

200534C2

DOOR W/PRODUCT GRAPHIC ASSY, left drum housing, Unit C

1шт.

27

200535C2

DOOR W/PRODUCT GRAPHIC ASSY, right drum housing, Unit D

1шт.

28

11786RB

PLATE, left outer drum housing bottom, Units A and C, 416-501 thru 1665, 422-501 thru 1336

1шт.

28

202679C1

PLATE ASSY, bottom outer LH, Units A and C, 416-1666 and up, 422-137 and up

1шт.

28

658254R92

PLATE, right outer drum housing bottom, Units B and D, 416-501 thru 1665, 422-501 thru 1335

1шт.

28

202681C1

PLATE ASSY, bottom outer RH, Units B and D, 416-1666 and up, 422-3137 and up

1шт.

WASHER, 17/32 x 1 x 11 ga

1шт.

29

NOT USED IN THIS APPLICATION

1шт.

30

666573R1

STRAP, drive wheel shield

2шт.

BOLT W/NUT, 5/16 x 1 crg

8шт.

WASHER, 5/16 lock

8шт.

31

660792R93

POST, left rear outer, Unit A

1шт.

31

660793R93

POST, right rear outer, Unit B

1шт.

31

660732R93

POST, left rear outer, Unit C

1шт.

31

660733R93

POST, right rear outer, Unit D

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

8шт.

BOLT W/NUT, 3/8 x 1 mach

7шт.

WASHER, 3/8 lock

15шт.

32

666572R1

SPACER, drive wheel shield, Units A and B

1шт.

32

666568R1

SPACER, drive wheel shield, Units C and D

1шт.

33

11809R

LINK, rear plant compressor extension sheet pivot

1шт.

PIN, 3/32 x 7/8 cotter

1шт.

34

668834R91

EXTENSION, left rear plant compressor sheet, Unit A

1шт.

34

668835R91

EXTENSION, right rear plant compressor sheet, Unit B

1шт.

34

668839R91

SHEET

EXTENSION, left rear plant compressor sheet, Unit C

1шт.

34

668840R91

EXTENSION, right rear plant compressor sheet, Unit D

1шт.

35

668824R91

SHEET, left rear plant compressor, Unit A

1шт.

35

668825R91

SHEET, right rear plant compressor, Unit B

1шт.

35

668830R91

SHEET, left rear plant compressor, Unit C

1шт.

35

668831R91

SHEET, right rear plant compressor, Unit D

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

36

11785RA

GUIDE

BAR, left rear slat, 14 for unit A, 20 for unit C

1шт.

36

658263R1

GUIDE

BAR, right rear slat, 14 for unit B, 20 for unit D

1шт.

BOLT W/NUT, 5/16 x 3/4 mach, 14 for units A and B, 20 for units C and D

1шт.

WASHER, 5/16 lock, 14 for units A and B, 20 for units C and D

1шт.

37

660799R92

POST, rear center, Units A and B

1шт.

37

660726R92

POST, rear center, Units C and D

1шт.

BOLT W/NUT, 3/8 x 1 mach

4шт.

WASHER, 3/8 lock

4шт.

38

663934R2

COVER, slat bar, Units A and B

1шт.

38

663933R2

COVER, slat bar, Units C and D

1шт.

BOLT W/NUT, 5/16 x 1 mach

3шт.

NUT, 3/8

3шт.

WASHER, 5/16 lock

3шт.

39

666567R1

STRAP, auxiliary drive wheel shield, 2 for units A and B, 2 for units C and D

1шт.

40

670385R91

SHIELD, drive wheel, riveted assy, Units A and B

1шт.

40

670387R91

SHIELD, drive wheel, riveted assy, Units C and D

1шт.

RIVET, 1/4 x 3/4 b-hd

4шт.

41

664208R92

EXTENSION, left rear post, Unit C

1шт.

41

664209R92

EXTENSION, right rear post, Unit D

1шт.

41

664214R91

EXTENSION, left rear post, Unit A

1шт.

41

664215R92

EXTENSION, right rear post, Unit B

1шт.

BOLT W/NUT, 5/16 x 3/4 crg, 4 for units A and B, 5 for units C and D

1шт.

WASHER, 5/16 lock, 4 for units A and B, 5 for units C and D

1шт.

42

664218R1

ANCHOR, rear post extension

1шт.

BOLT W/NUT, 5/16 x 3/4 crg

4шт.

WASHER, 5/16 lock

4шт.

43

664693R1

PLATE, post extension cover

1шт.

44

664691R1

SUPPORT

GRID, louvered

2шт.

BOLT W/NUT, 1/4 x 1/2 c-z mach

12шт.

WASHER, 1/4 znd reg lock

12шт.

45

664954R1

MESH, drum step, Units B and C

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

2шт.

WASHER, 5/16 lock

2шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

46

NOT USED IN THIS APPLICATION

1шт.

47

664696R1

BRACE, separator angle, Units C and D

1шт.

47

664698R1

BRACE, separator angle, Units A and B

1шт.

BOLT W/NUT, 5/16 x 1 mach

6шт.

WASHER, 5/16 lock

6шт.

48

667354R91

EXTENSION, rear post outer left, Unit A

1шт.

48

667355R91

EXTENSION, rear post outer right, Unit B

1шт.

48

667360R91

EXTENSION, rear post outer left, Unit C

1шт.

48

667361R91

EXTENSION, rear post outer right, Unit D

1шт.

BOLT W/NUT, 3/8 x 3/4 crg, 5 for unit A and B, 6 for unit C and D

1шт.

WASHER, 3/8 lock, 5 for unit A and B, 6 for unit C and D

1шт.

49

NOT USED IN THIS APPLICATION

1шт.

50

664692R1

PLATE, door cover

1шт.

51

666306R1

SHEET, plant guide, Units A and B

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

4шт.

WASHER, 3/8 lock

4шт.

51

666305R1

SHEET, plant guide, Units C and D

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

4шт.

WASHER, 3/8 lock

4шт.

WASHER, 13/32 x 3/4 x 16 ga

4шт.

52

666700R1

PLATE, rear post opening cover, Units C and D

1шт.

52

666715R1

PLATE, rear post opening cover, Units A and B

1шт.

53

202727C1

ROLL

cutoff adjuster, Units A and B

2шт.

53

202726C1

ROLL

cutoff adjuster, Units C and D

2шт.

BOLT W/NUT, 5/16 x 1/2 crg

3шт.

WASHER, 5/16 lock

3шт.

WASHER, 11/32 x 3/4 x 11 ga

1шт.
