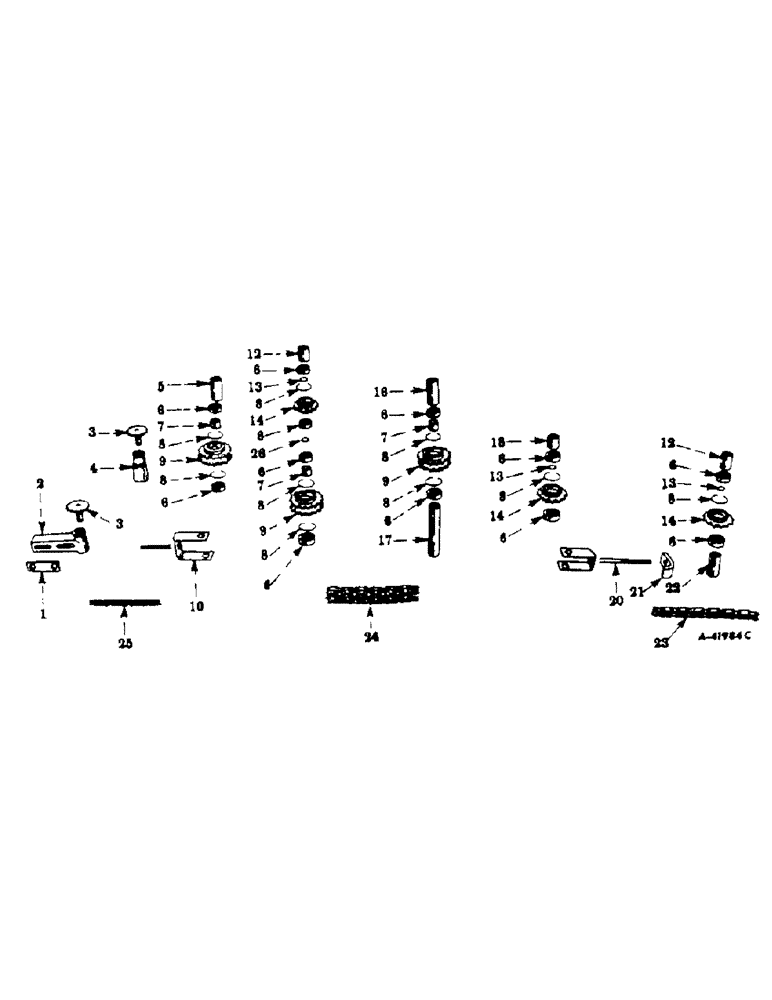

Запчасти Case IH 414 (113) - IDLER SPROCKETS (58) - ATTACHMENTS/HEADERS

1

660659R1

CLIP, moistener adjusting idler support

1шт.

2

660663R1

SUPPORT, moistener adjusting idler sprocket shaft, 416-501 thru 1665, 422-501 thru 3136

1шт.

BOLT W/NUT, 3/8 x 2 crg

2шт.

WASHER, 3/8 lock

2шт.

2

669846R1

SUPPORT

adj idler sprocket, 416-1666 and up, 422-3137 and up

1шт.

BOLT W/NUT, 3/8 x 1 crg

2шт.

WASHER, 13/32 x 3/4 x 16 ga

2шт.

3

11820R

SHAFT, moistener drive idler sprocket, 416-501 thru 1665, 422-501 thru 3136

2шт.

BOLT W/NUT, 1/2 x 2 mach

2шт.

WASHER, 1/2 lock

2шт.

4

660662R1

SUPPORT, moistener drive sprocket

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach

2шт.

WASHER, 3/8 lock, 416-501 thru 1665, 422-501 thru 3136

2шт.

4

202685C1

BRACKET, moistener, 416-1666 and up, 422-3137 and up

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

5

668061R1

SPACER

yoke

1шт.

6

665420R91

BEARING ASSY,0.625" ID x 1.5748" OD x 0.4724"

idler sprocket

12шт.

7

665413R1

SPACER

long bearing

3шт.

8

10213R

OIL SEAL

SNAP RING, idler sprocket

9шт.

9

10219R

SPROCKET ASSY.

SPROCKET, spindle and doffer drive idler

3шт.

10

668058R91

YOKE

idler sprocket

1шт.

BOLT W/NUT, 5/8 x 6-1/4 sq-hd

1шт.

NUT, 1/2

2шт.

WASHER, 5/8 lock

1шт.

102763H

WASHER

WASHER, 41/64 x 7/8 x 13 ga

1шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

11

NOT USED

1шт.

12

665415R1

SPACER, top drum drive stationary idler

2шт.

SCREW W/NUT, 5/8 x 11 cap

1шт.

WASHER, 5/8 lock

2шт.

13

665412R1

WASHER

SPACER, short bearing

3шт.

14

10210R

SPROCKET, drum drive idler

3шт.

15

NOT USED

1шт.

16

665416R1

SPACER

top spindle and doffer drive stationary idler

1шт.

SCREW W/NUT, 5/8 x 11 cap

1шт.

WASHER, 5/8 lock

1шт.

17

665417R1

SPACER

bottom spindle and doffer drive stationary idler

1шт.

18

668065R1

SPACER

drum drive idler

1шт.

19

NOT USED

1шт.

20

668062R91

FORK

YOKE, drum drive idler sprocket

1шт.

NUT, 1/2

2шт.

WASHER, 5/8 lock

1шт.

BOLT W/NUT, 5/8 x 4-1/4 sq-hd mach

1шт.

102763H

WASHER

WASHER, 41/64 x 7/8 x 13 ga

3шт.

578810R1

WASHER, 21/32 x 1-1/2 x 11 ga

1шт.

21

660682R1

WASHER, drum drive idler adjustment

1шт.

22

665418R1

SPACER, middle drum drive station idler

1шт.

23

657768R91

CHAIN (AG)

CHAIN, drum drive

1шт.

24

660690R91

CHAIN, spindle and doffer drive

1шт.

25

660664R91

CHAIN (AG)

CHAIN, moistener drive, 416-501 thru 1665, 422-501 thru 3136

1шт.

25

202687C1

CHAIN (AG)

CHAIN, moistener drive, 416-1666 and up, 422-3137 and up

1шт.

26

665414R1

SPACER, medium bearing

1шт.
